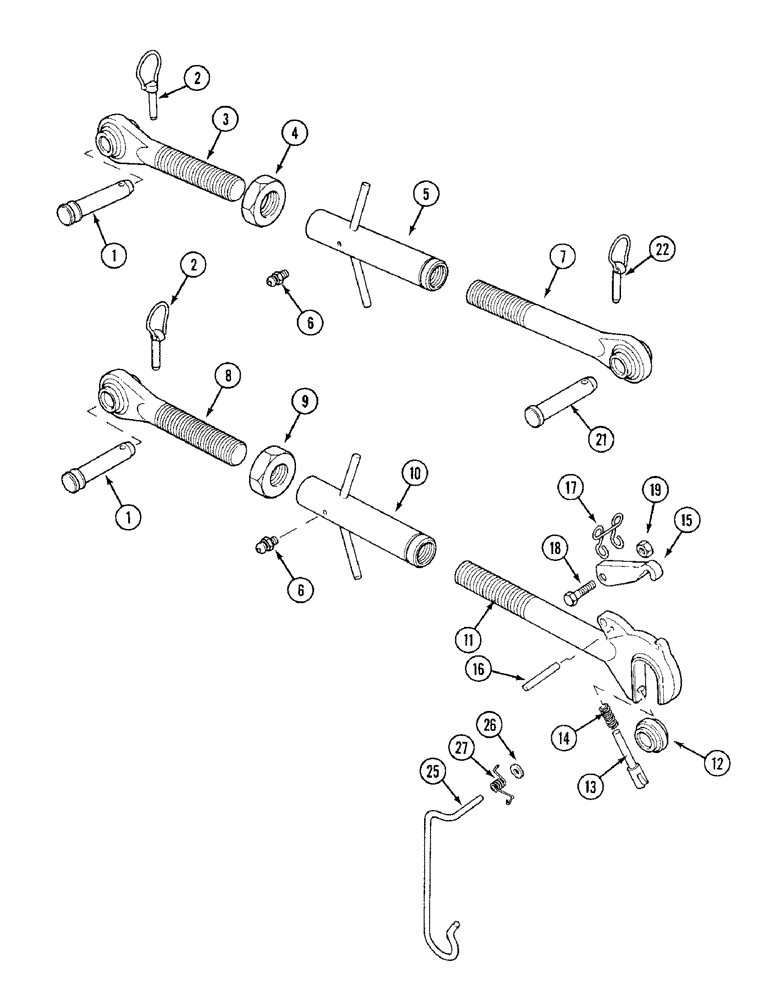

Запчасти Case IH 1394 (9-380) - TOP LINK, STANDARD AND JEFFES TYPE (09) - CHASSIS/ATTACHMENTS

1

K919725

PIN,19.05mm OD x 111.13mm L

- link

1шт.

2

K210316

LINCH PIN

PIN ASSEMBLY - klik (Replaces K66408)

1шт.

NSS

NOT SOLD SEPARAT

LINK ASSEMBLY - top, extended, Order components, Includes: Ref. 3 - 7

1шт.

3

K920798

BALL

SCREW ASSEMBLY - 8 inch, right hand

1шт.

4

K19448

LOCK NUT

- lock, 1-1/4 inch BSF

1шт.

5

K920800

TURNBUCKLE

BUCKLE - turn, top link

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

7

K964863

SHAFT

SCREW - 15 inch left hand thread

1шт.

NSS

NOT SOLD SEPARAT

LINK ASSEMBLY - top, Jeffes type, Order components, Includes: Ref. 6 - 19

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

8

K920798

BALL

SCREW ASSEMBLY - ball, tractor end

1шт.

9

K19448

LOCK NUT

- lock, 1-1/4 inch BSF

1шт.

10

K920800

TURNBUCKLE

BUCKLE - turn, top link

1шт.

K201785

HOOK

ASSEMBLY - ball, implement end, Includes: Ref. 11 - 19

1шт.

11

K201786

HOOK

- end

1шт.

12

K210453

BALL

- top hitch

1шт.

13

K201788

PIN

- ball retaining

1шт.

14

K201789

SPRING

- retaining pin

1шт.

15

K201790

LEVER

- release

1шт.

16

K201791

PIN

- roll, 5/32 x 3/4 inch

1шт.

17

K201792

SPRING

- release lever

2шт.

18

K201793

BOLT

- 5/16 x 1-3/8 inch Whitworth

1шт.

19

K201731

NUT

- lock, 5/16 inch Whitworth

1шт.

21

K903981

HITCH PIN

PIN - link, category I

1шт.

21

K65690

HITCH PIN

PIN - link, implement, category II

1шт.

22

1328218C1

LINCH PIN,11mm OD

(Replaces K920359)

1шт.

25

K303358

LATCH

HOOK - top link stowage (With cab)

1шт.

26

K692198

WASHER

- retaining

1шт.

27

K658401

SPRING

- stowage hook

1шт.
