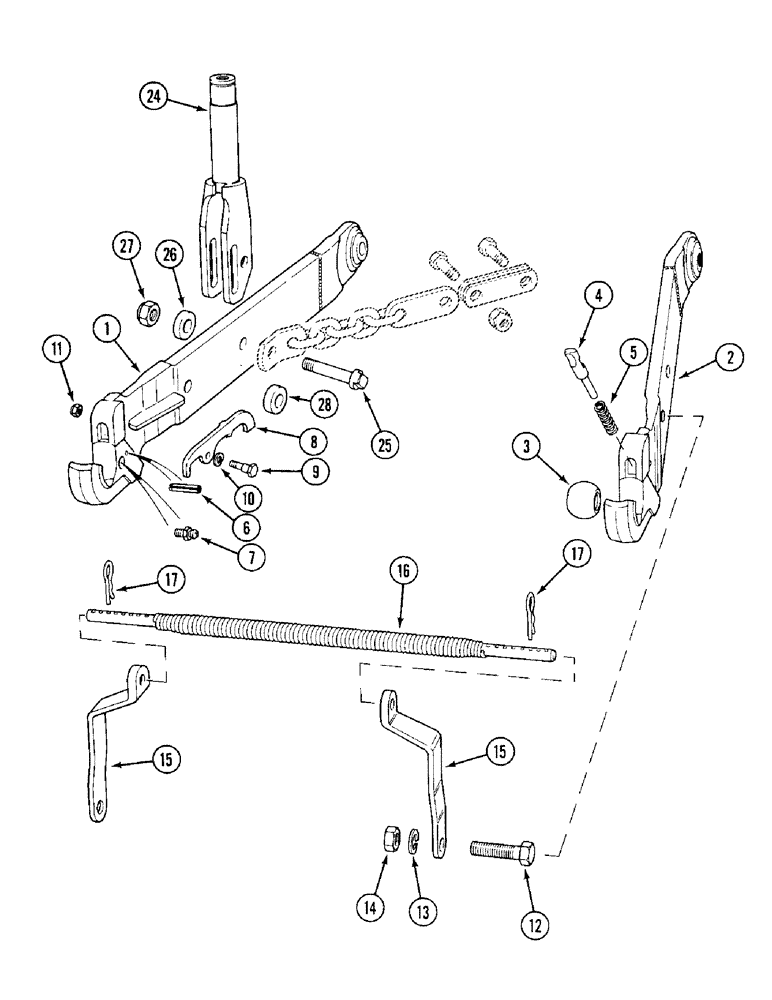

Запчасти Case IH 1394 (9-378) - LOWER LINKS AND HITCH BRACKETS (09) - CHASSIS/ATTACHMENTS

1

K203407

LINK

LOWER LINK - left-hand, Jeffes hook, Includes: Ref. 3 - 11

1шт.

2

K203408

LINK

LOWER LINK - right-hand, Jeffes hook, Includes: Ref. 3 - 11

1шт.

3

K65663

BALL

1шт.

4

K201723

PIN

- retaining

1шт.

5

K201724

SPRING

1шт.

6

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

PIN - groove, 1/4 x 1-9/16 inch

1шт.

7

K201726

FITTING

- grease, 1/4 inch BSF

1шт.

8

K201727

LEVER

- release, left-hand link

1шт.

8

K201728

LEVER

- release, right-hand link

1шт.

9

K201729

BOLT

- 5/16 inch Whitworth, special

1шт.

10

K201730

SPRING

WASHER - lock, 7/16 inch

1шт.

11

K201731

NUT

- self locking, 5/16 inch Whitworth

1шт.

12

K601465

BOLT

- 3/4 UNC x 2-1/4 inch

2шт.

13

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

14

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

15

K203411

BRACKET

2шт.

16

K201796

COUPLING

COUPLER - adjustable

1шт.

17

K201794

SPRING

CLIP - spring

2шт.

24

K203400

FORK

END - fork lift rod and leveling lever

2шт.

25

K201523

BOLT

BOLT - 7/8 inch UNC, special, Jeffes hook

2шт.

26

K201541

DISC

COLLAR - used with K201523

2шт.

27

K607464

NUT

- self locking, 3/4 inch UNC

2шт.

28

K311334

COLLAR

SPACER - Jeffes hook and no check chains (With cab)

2шт.
