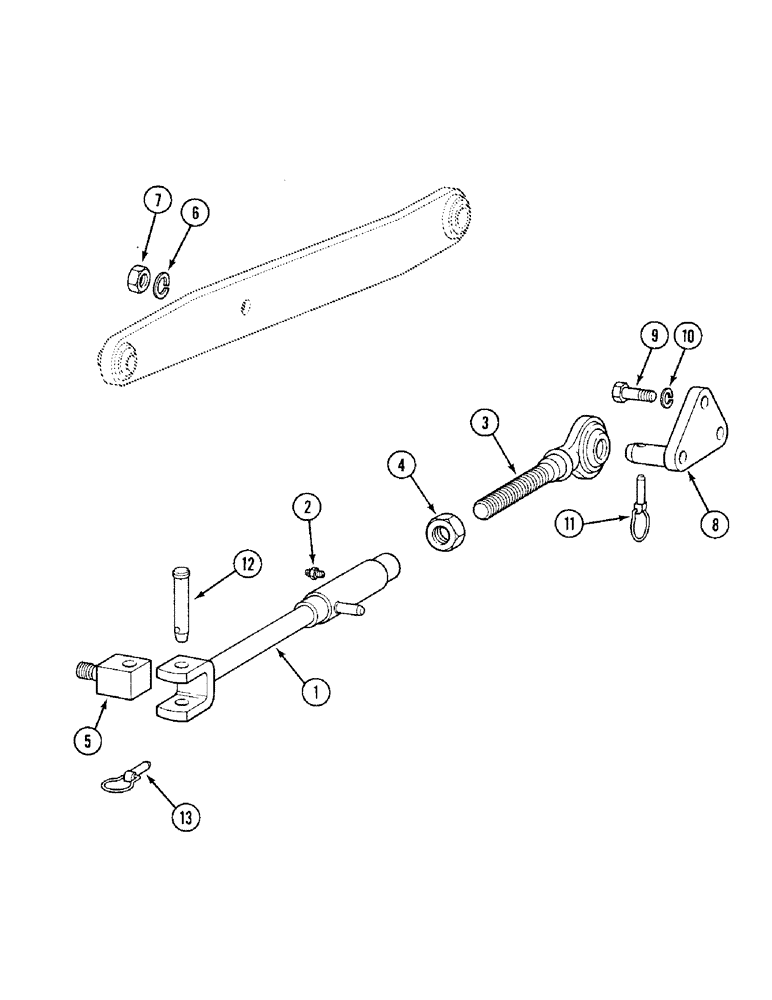

Запчасти Case IH 1394 (9-376) - STABILIZER BAR, P.I.N. 11506293 AND AFTER (09) - CHASSIS/ATTACHMENTS

UK4687

STABILIZER ATTACHMENT - linkage, Includes: Ref. 1 - 13

1шт.

NSS

NOT SOLD SEPARAT

BAR ASSEMBLY - stabilizer, telescopic, Includes: Ref. 1 - 4

2шт.

1

K210413

HOUSING

- ball, front

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

3

K210416

BALL JOINT

HOUSING - tube and yoke

1шт.

4

425-1416

JAM NUT,Jam, 1"-8, G5

- hex, jam, 1 inch NC

1шт.

5

K210423

PIN

- lower link anchor

2шт.

6

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

7

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

8

K210420

BRACKET

- standard clearance

2шт.

8

K210449

SUPPORT

BRACKET - right, reduction (High Clearance)

1шт.

8

K210448

SUPPORT

BRACKET - left, reduction (High Clearance)

1шт.

9

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

10

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

6шт.

11

1328218C1

LINCH PIN,11mm OD

- quick attachable

2шт.

12

K912936

PIN

- link

2шт.

13

K210316

LINCH PIN

PIN ASSEMBLY - linch

2шт.
