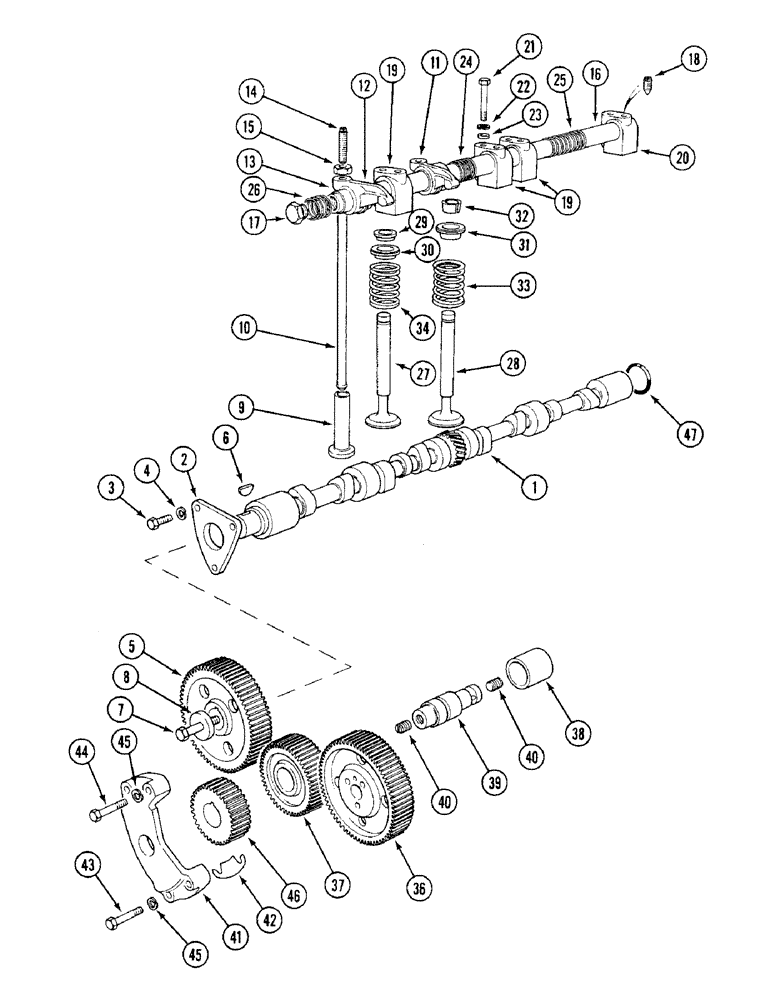

Запчасти Case IH 1394 (2-16) - VALVE MECHANISM AND TIMING GEARS (02) - ENGINE

1

K921769

CAMSHAFT

-

1шт.

2

K902015

PLATE

- locating

1шт.

3

K602885

HARDWARE

BOLT - 5/16 UNC x 1 inch

3шт.

4

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

3шт.

5

K945097

GEAR

- 68 teeth, camshaft

1шт.

6

K19607

KEY

- Woodruff no. 506

1шт.

7

K600700

BOLT

- 7/16 UNC x 2 inch

1шт.

8

K66382

WASHER

- 7/16 inch (11 mm)

1шт.

9

K901137

TAPPET

- valve

8шт.

10

K902035

ROD

- push, rocker arm

8шт.

11

K63089

ROCKER

- valve, right-hand, Includes: Ref. 13, no.

4шт.

12

K63090

ROCKER

- valve, left-hand, Includes: Ref. 13, no.

4шт.

13

K11060

BUSHING

- valve rocker

1шт.

14

K900413

ADJUSTMENT SCREW,3/8" - 16 x 1 1/8"

- adjusting, 3/8 inch UNC

8шт.

15

87016560

JAM NUT,Jam, 3/8"-16, G5

- lock, 3/8 inch UNC

8шт.

16

K909622

SHAFT

- rocker

1шт.

17

K19590

PLUG

- 3/8 inch BSP

2шт.

18

K606051

SET SCREW,5/16" - 18 x 1/2"

- locating, 5/16 inch UNC

1шт.

19

K921431

BRACKET

- rocker shaft, nos.

3шт.

20

K921432

BRACKET

- rocker shaft, rear

1шт.

21

K600611

BOLT

- 7/16 UNC x 2-5/8 inch

4шт.

22

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

23

K626314

WASHER

- 7/16 inch

4шт.

24

K11017

SPRING

- locating, intermediate

2шт.

25

K11034

SPRING

- locating, center

1шт.

26

K11018

SPRING

- locating, ends

2шт.

27

K950100

STD EXHAUST VALVE

VALVE - exhaust, standard stem

4шт.

27

K950545

VALVE

- exhaust, 0.010 inch (0.25 mm) Oversize stem

4шт.

27

K950546

VALVE

- exhaust, 0.020 inch (0.51 mm) Oversize stem

4шт.

28

K928622

STD INLET VALVE

VALVE - intake and exhaust, standard stem

4шт.

28

K928986

VALVE

- intake and exhaust, 0.010 inch (0.25 mm) oversize stem

4шт.

28

K928987

VALVE

- intake and exhaust, 0.020 inch (0.51 mm) oversize stem

4шт.

29

K928623

COLLAR

- inner, exhaust valve

4шт.

30

K928624

COLLAR

- outer, exhaust valve

4шт.

31

K921437

COLLAR

- intake valve

4шт.

32

K943439

LOCKING DEVICE

COTTER - intake and exhaust valve

16шт.

33

K921435

SPRING

- intake valve

4шт.

34

K921436

VALVE SPRING

SPRING - exhaust valve

4шт.

36

K949822

GEAR

- pump drive, 68 teeth, injection pump

1шт.

37

K946144

GEAR

ASSEMBLY - intermediate, 47 teeth, Includes: Ref. 38

1шт.

38

K628751

BUSHING

-

1шт.

39

K944136

GEAR SHAFT

SHAFT - intermediate gear, Includes: Ref. 40

1шт.

40

K606221

SCREW

PLUG - 5/16 inch UNC

2шт.

41

K904073

SUPPORT

BRACKET - intermediate gear support

1шт.

42

K902113

SHIM,.003" Thk

(0.08 mm) .003" Thk

1шт.

42

K902114

SHIM,.010" Thk

(0.25 mm) .010" Thk

1шт.

42

K908713

SHIM,.020" Thk

(0.51 mm) .020" Thk

1шт.

43

K600324

BOLT

- 5/16 UNC x 1-3/4 inch

2шт.

44

K600325

BOLT

- 5/16 UNC x 2 inch

2шт.

45

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

4шт.

46

K945094

GEAR

- crankshaft, 34 teeth

1шт.

47

K262762

O-RING

- 1-13/16 inch ID

1шт.
