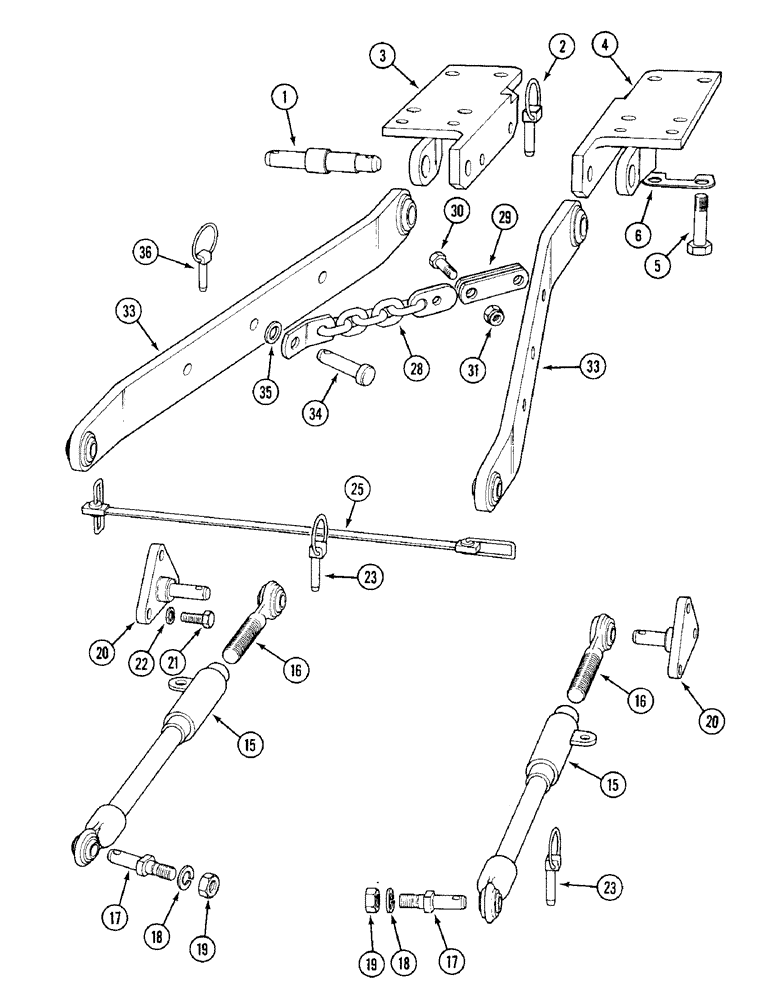

Запчасти Case IH 1394 (9-374) - LOWER LINKS AND STABILIZER BARS AND HITCH BRACKETS (09) - CHASSIS/ATTACHMENTS

1

K922634

PIN,31.75mm OD x 182.56mm L

- pivot, lower link

2шт.

2

1328218C1

LINCH PIN,11mm OD

(Replaces K920359)

4шт.

3

K921558

BRACKET

- hitch, left-hand

1шт.

4

K921559

BRACKET

- hitch, right-hand

1шт.

5

K601410

BOLT

- 3/4 UNC x 3 inch

8шт.

5

K601411

BOLT

- 3/4 UNC x 3-1/4 inch (with cab)

2шт.

6

K913121

WASHER

- tab

2шт.

NSS

NOT SOLD SEPARAT

STABILIZER ASSEMBLY - linkage (Prior to P.I.N. 11506293), Includes: Ref. 15 - 19

1шт.

NSS

NOT SOLD SEPARAT

BAR ASSEMBLY - stabilizer, telescopic, Includes: Ref. 15 & 16

2шт.

15

K954647

TIE-ROD,8.125" L

HOUSING - ball

1шт.

16

K914993

END

HOUSING - ball, front

1шт.

17

K907008

PIN

- lower link

2шт.

18

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

19

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

20

K922662

PLATE

BRACKET - standard clearance

2шт.

20

K922660

PLATE

BRACKET - left-hand (High clearance)

1шт.

20

K922658

PLATE

BRACKET - right-hand (High clearance)

1шт.

21

413-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5

- hex, 1/2 NC x 1-3/8 inch

6шт.

22

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

6шт.

23

1328218C1

LINCH PIN,11mm OD

(Replaces K920359)

4шт.

UK4689

LOWER LINK RESTRAINT ASSEMLBY - standard lower links, Includes: Ref. 25

1шт.

25

K311716

RETAINER

RESTRAINT - lower links, use without check chains

1шт.

28

K946104

CHAIN (AG)

CHAIN - check, Includes: Ref. 29

2шт.

29

K924022

PLATE

- connecting

2шт.

30

K600804

BOLT

- 1/2 UNC x 1-3/4 inch

4шт.

31

K607462

NUT

- self-locking, 1/2 inch UNC

4шт.

33

K923698

LINK

- 38-1/2 inch (Extended) (978 mm)

2шт.

34

K946108

HEADED PIN

PIN ASSEMBLY - check chain, used with K923698

2шт.

35

K19476

WASHER

- 3/4 inch (19 mm) Use with K923698

2шт.

36

3053363R91

LINCH PIN,32mm OD

PIN - linch (Replaces K915687)

2шт.
