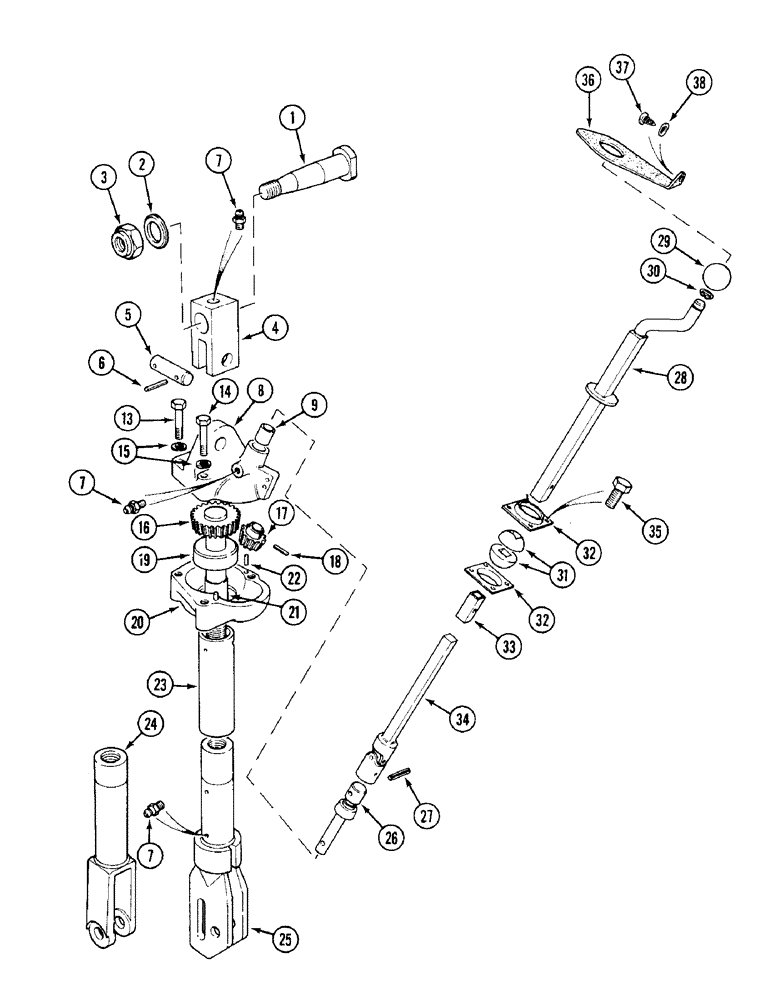

Запчасти Case IH 1394 (9-370) - LEVELING LEVER, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

1

K914191

PIN

BOLT - 3/4 inch UNC

1шт.

2

K19476

WASHER

- 3/4 inch (19 mm)

1шт.

3

K607446

NUT

- self-locking, 3/4 inch UNC

1шт.

NSS

NOT SOLD SEPARAT

LEVER ASSEMBLY - leveling (With standard nut) Order components, Includes: Ref. 4 - 34

1шт.

K204878

LEVER

ASSEMBLY - leveling (With slotted nut) Order components, Includes: Ref. 4 - 34

1шт.

NSS

NOT SOLD SEPARAT

LEVER ASSEMBLY - leveling, Jeffes hook, Includes: Ref. 4 - 34

1шт.

4

K921914

FORK

END - fork

1шт.

5

K948353

PIVOT PIN

PIN - pivot, 5/8 x 2-1/4 inch

1шт.

6

438-11214

LOCK PIN,4.76mm OD x 22.23mm L, Slotted

Pin, 3/16" x 7/8", Slotted

2шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

3шт.

8

K962691

COVER

CAP ASSEMBLY - gear housing, Includes: Ref. 9

1шт.

9

K621340

BUSHING

- lever

2шт.

13

K600405

BOLT

- 3/8 UNC x 1-5/8 inch

2шт.

13

K600404

BOLT

- 3/8 UNC x 1-1/2 inch

2шт.

14

K600407

BOLT

- 3/8 UNC x 1-7/8 inch

2шт.

15

492-11038

LOCK WASHER,3/8"

4шт.

16

K924725

SHAFT

GEAR - bevel, with shaft

1шт.

17

K919769

GEAR

PINION - bevel

1шт.

18

138-73

LOCK PIN,5/32" x 3/4", Slotted

PIN, 5/32" x 3/4", Slotted

1шт.

19

K19187

THRUST BEARING

BEARING - thrust

1шт.

20

K962975

HOUSING

ASSEMBLY - gear, Includes: Ref. 21 - 24

1шт.

21

K621339

BUSHING

- gear housing

2шт.

22

K32063

PIN

DOWEL - 3/16 x 1/2 inch

2шт.

23

K940510

TUBE,1.75" ID x 6.187" L

- shaft, 1-3/4 x 6-1/4 inch

1шт.

24

K940614

CLEVIS

NUT - adjusting, standard

1шт.

25

K946081

ROD

NUT - adjusting, slotted

1шт.

25

K203400

FORK

NUT - adjusting, slotted nut, Jeffes hook

1шт.

26

K954077

SHAFT

- bevel pinion

1шт.

27

K691356

PIN

- roll, 5 x 25 mm

1шт.

NSS

NOT SOLD SEPARAT

HANDLE ASSEMBLY - Order components, Includes: Ref. 28 - 34

1шт.

28

K303674

SPINDLE

AND HANDLE

1шт.

29

K919763

BUTTON

KNOB - lever

1шт.

30

A10916

RING, SNAP

RING - retaining

1шт.

31

K303520

BALL JOINT

BALL - nylon, half

2шт.

32

K303518

CASE

SOCKET - ball

2шт.

33

K303531

SLEEVE

BUSHING - plastic

1шт.

34

K303648

ARM

SPINDLE - with universal joint

1шт.

35

K653339

SCREW,Hex, M5 x 0.8 x 12mm

- M5 x 12 mm

4шт.

37

K652753

SCREW

- M8 x 16 mm

1шт.

38

K303630

BUSHING

WASHER - 8 mm

1шт.
