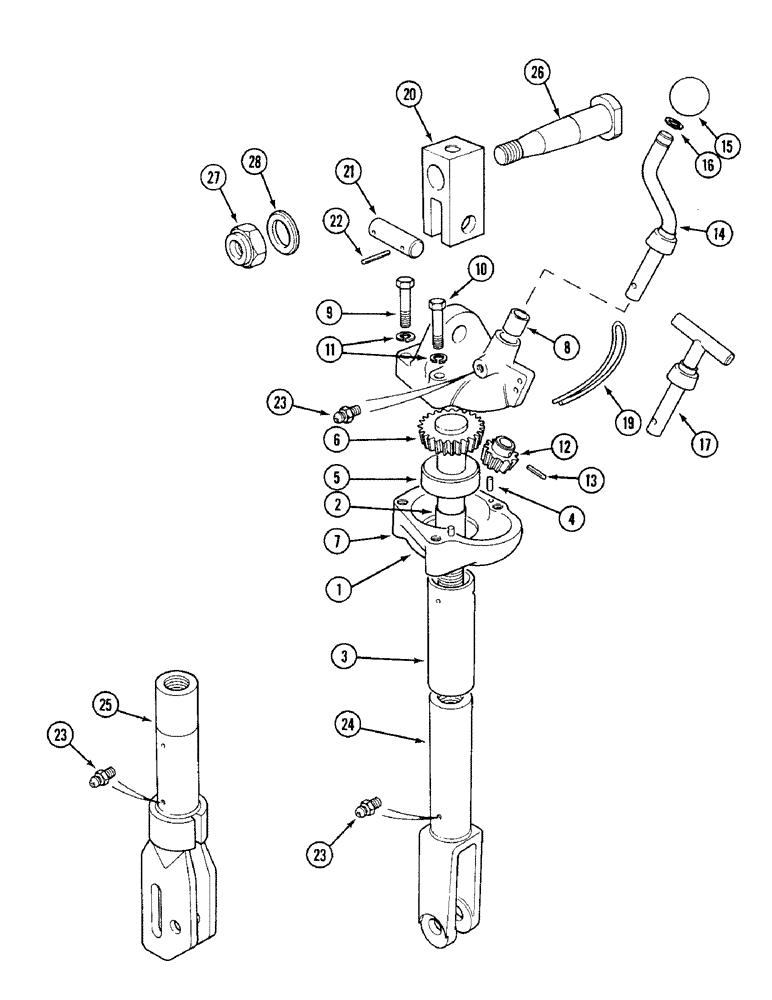

Запчасти Case IH 1394 (9-368) - LEVELING LEVER, TRACTORS WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

K204857

CABLE

LEVELING LEVER - (With slotted nut), Includes: Ref. 1 - 25

1шт.

NSS

NOT SOLD SEPARAT

LEVELING LEVER - (With standard nut) Order components, Includes: Ref. 1 - 25

1шт.

K210158

LEVER

LEVELING LEVER - (North America Only)

1шт.

1

K962977

HOUSING

ASSEMBLY - gear, Includes: Ref. 2 - 4

1шт.

2

K621339

BUSHING

- gear housing

1шт.

3

K922657

TUBE,1.75" DIA x 5.25" L

- gear housing, 1-3/4 x 5-1/4 inch

1шт.

4

K32063

PIN

DOWEL - 3/16 x 1/2 inch

2шт.

5

K19187

THRUST BEARING

BEARING - thrust

1шт.

6

K919770

SHAFT

GEAR - bevel

1шт.

7

K962691

COVER

CAP ASSEMBLY - gear housing, Includes: Ref. 8

1шт.

8

K621340

BUSHING

- lever

2шт.

9

K600405

BOLT

- 3/8 UNC x 1-5/8 inch

2шт.

10

K600407

BOLT

- 3/8 UNC x 1-7/8 inch

2шт.

11

492-11038

LOCK WASHER,3/8"

4шт.

12

K919769

GEAR

PINION - bevel

1шт.

13

138-73

LOCK PIN,5/32" x 3/4", Slotted

PIN, 5/32" x 3/4", Slotted

1шт.

14

K919761

LEVER

HANDLE - with knob (Not North America), Includes: Ref. 15 & 16

1шт.

15

K919763

BUTTON

KNOB - lever

1шт.

16

A10916

RING, SNAP

RING - retaining

1шт.

17

K210133

LEVER

HANDLE - hand

1шт.

19

K924723

SPRING

LATCH - spring

1шт.

20

K921914

FORK

END - fork

1шт.

21

K948353

PIVOT PIN

PIN - pivot, 5/8 x 2-1/4 inch

1шт.

22

438-11214

LOCK PIN,4.76mm OD x 22.23mm L, Slotted

Pin, 3/16" x 7/8", Slotted

2шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

3шт.

24

K940700

NUT

- adjusting, standard

1шт.

25

K945967

CLEVIS

NUT - adjusting, slotted

1шт.

26

K914191

PIN

BOLT - 3/4 inch UNC

1шт.

27

K607446

NUT

- self-locking, 3/4 inch UNC

1шт.

28

K19476

WASHER

- 3/4 inch (19 mm)

1шт.
