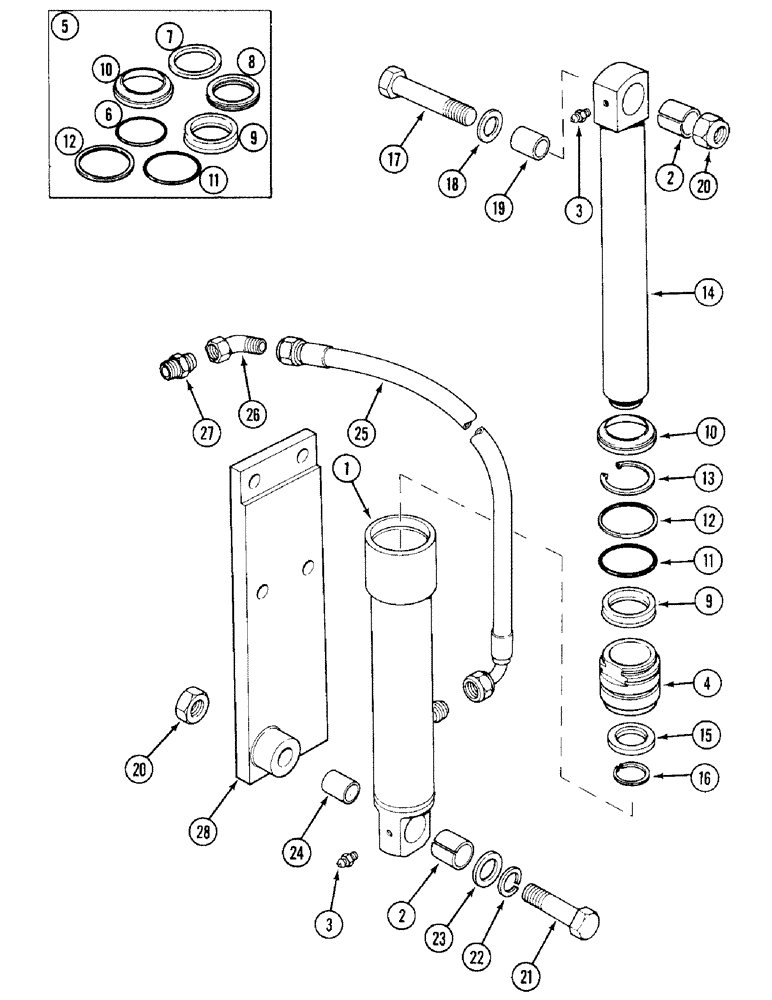

Запчасти Case IH 1394 (8-366) - SHORT SUPPORT CYLINDER - LINKAGE, P.I.N. 11505480 AND AFTER (08) - HYDRAULICS

1

UK6774

CYLINDER

LINKAGE SUPPORT CYLINDER UNIT - Use Components, Includes: Ref. 1 - 27

1шт.

K311619

CYLINDER

ASSEMBLY - 17-1/2 inch x 9-1/2 inch Stroke, Includes: Ref. 1 - 16

1шт.

1

K311543

TUBE

CASE - support cylinder

1шт.

2

K690720

BUSHING

- cylinder

2шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

4

K311612

SLEEVE

- cylinder, cylinder

1шт.

5

REF

INSTRUCTION

KIT - seals (For K311619 and K924497), Includes: Ref. 6 - 12

1шт.

6

238-6327

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

1шт.

7

K691286

RING

- back-up, 1-3/4 inch (44 mm) ID

1шт.

8

K691285

SEAL

RING - sealing, 1-3/4 inch (44 mm) ID

1шт.

9

K628134

SEAL

RING - sealing, 1-3/4 inch (44 mm) ID

1шт.

10

K691505

SEAL,44.45mm ID x 12.7mm Thk

- scraper, 1-3/4 inch (44 mm) ID

1шт.

11

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

12

K623529

RING,56.95mm ID x 1.83mm OD x 3.3mm Thk

- back-up, 2-1/4 (57 mm) ID

1шт.

13

100-21250

SNAP RING,2.50", Int, #250

RING -retaining, 2-1/4 inch (57 mm) Internal

1шт.

14

K311554

ROD

- piston

1шт.

15

K924643

STOP

RING - piston stop

1шт.

16

K11129

RING, SNAP

RING - snap, 1-1/4 inch (31 mm) External

2шт.

17

K601466

BOLT

- ramshaft arm, 3/4 UNC x 4 inch

1шт.

18

K19476

WASHER

- 3/4 inch (19 mm)

1шт.

19

K901963

BUSHING

- piston rodm

1шт.

20

K607446

NUT

- self-locking, 3/4 inch UNC

2шт.

21

K210349

BRACKET

BOLT - special, 3/4 x UNC x 5-1/2 inch, hitch plate

1шт.

22

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

23

K19476

WASHER

- 3/4 inch (19 mm)

1шт.

24

K901963

BUSHING

- piston rod, cylinder

1шт.

25

K924211

HOSE

TUBE - flexible, 3/4 UNF x 45 inch

1шт.

26

K622115

NUT

ELBOW - swivel nut, 3/4 inch UNF

1шт.

27

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

1шт.

28

K311600

PLATE

- hitch, multi-speed PTO

1шт.

28

K311568

PLATE

- hitch, reversible shaft PTO

1шт.
