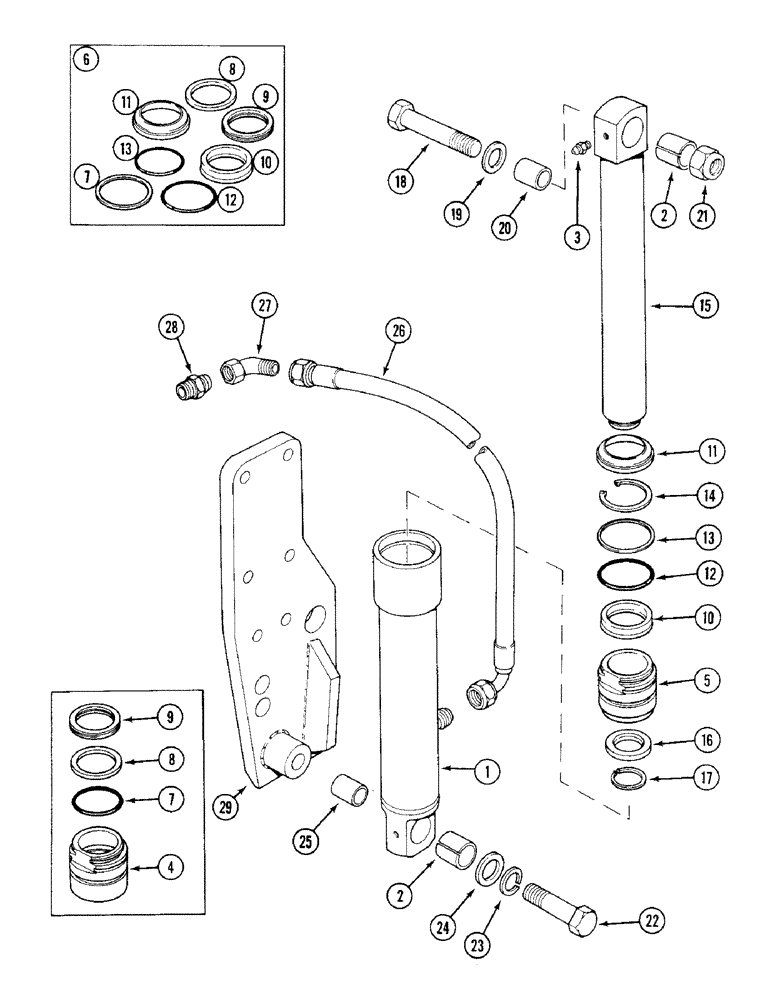

Запчасти Case IH 1394 (8-364) - LONG SUPPORT CYLINDER - LINKAGE (08) - HYDRAULICS

UK1616

SUPPORT

LINKAGE SUPPORT CYLINDER UNIT, Includes: Ref. 1 - 29

1шт.

K924497

CYLINDER

ASSEMBLY - 22-7/16 inch (580 mm) x 11 inch (280 mm) Stroke, Includes: Ref. 1 - 17

1шт.

1

K924634

CYLINDER

CASE - support cylinder

1шт.

2

K690720

BUSHING

- cylinder

2шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

4

K924639

SLEEVE

- cylinder (Prior to P.I.N. 11505480)

1шт.

5

K311612

SLEEVE

- cylinder (P.I.N. 11505480 and after)

1шт.

6

NSS

NOT SOLD SEPARAT

KIT - seals (For K924497 and K311619), Includes: Ref. 7 - 13

1шт.

7

238-6327

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

(Prior to P.I.N. 11505480) -327, 90 Duro, 1.725" ID x .210" Thk

1шт.

8

K691286

RING

- back-up, 1-3/4 inch ID (Prior to P.I.N. 11505480)

1шт.

9

K691285

SEAL

RING - sealing, 1-3/4 inch ID (Prior to P.I.N. 11505480)

1шт.

10

K628134

SEAL

RING - sealing, 1-3/4 inch ID (P.I.N. 11505480 and after)

1шт.

11

K691505

SEAL,44.45mm ID x 12.7mm Thk

- scraper, 1-3/4 inch (44 mm) ID

1шт.

12

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

13

K623529

RING,56.95mm ID x 1.83mm OD x 3.3mm Thk

- back-up, 2-1/4 (57 mm) ID

1шт.

14

100-21250

SNAP RING,2.50", Int, #250

Ring, Snap, 2.50", Int, #250

1шт.

15

K924640

ROD

- piston

1шт.

16

K924643

STOP

RING - piston stop

1шт.

17

K11129

RING, SNAP

RING - 1-1/4 inch (31 mm) External

1шт.

18

K601466

BOLT

- ramshaft arm, 3/4 UNC x 4 inch

1шт.

19

K19476

WASHER

- 3/4 inch (19 mm)

1шт.

20

K901963

BUSHING

- piston rodd

1шт.

21

K607446

NUT

- self-locking, 3/4 inch UNC

1шт.

22

K601462

BOLT

- 3/4 UNC x 3 inch, hitch plate

1шт.

23

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

24

K19476

WASHER

- 3/4 inch (19 mm)

1шт.

25

K901963

BUSHING

- cylinder

1шт.

26

K924211

HOSE

TUBE - flexible, 3/4 UNF x 45 inch

1шт.

27

K622115

NUT

ELBOW - swivel nut, 3/4 inch UNF

1шт.

28

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

1шт.

29

K307260

BRACKET

PLATE - hitch, multi-speed PTO, (Not North America)

1шт.

29

K307258

BRACKET

PLATE - hitch, reversible shaft PTO, right hand

1шт.
