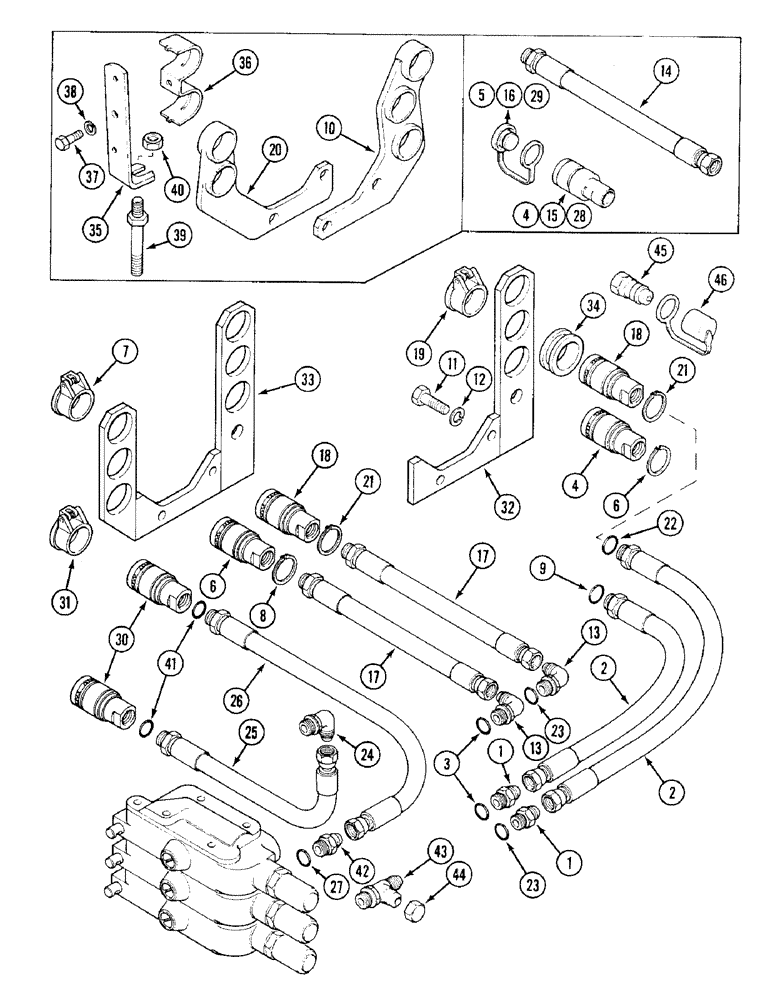

Запчасти Case IH 1394 (8-356) - REMOTE VALVE HOSES AND COUPLING (08) - HYDRAULICS

REF

INSTRUCTION

HOSES AND COUPLINGS - first valve (Part of UK6623, UK5819, UK6626/5686), Includes: Ref. 1 - 31

1шт.

1

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

2

K207572

HOSE

- flexible, 3/4 - 7/8 UNF x 24 inch

2шт.

3

K623591

O-RING

- 5/8 inch (16 mm) ID

2шт.

4

A177478

COUPLING, QUICK, FEM

COUPLING - female, breakaway (Prior to P.I.N. 11506444)

2шт.

5

A137135

PLUG

- dust protective

2шт.

6

A177478

COUPLING, QUICK, FEM

COUPLING - female, breakaway (P.I.N. 11506444 and after)

2шт.

7

A137135

PLUG

- dust protective

2шт.

8

104-11150

SNAP RING,#150, 1.408", Ext

RING - snap

4шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

10

K202578

BRACKET

- coupling support, left-hand

1шт.

11

K603108

SCREW

BOLT - axle housing, 1/2 UNC x 1-1/2 inch

2шт.

12

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

2шт.

REF

INSTRUCTION

HOSES AND COUPLINGS - second valve (Part of UK6624/5, UK6627/8, UK6783/4)

1шт.

13

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

2шт.

14

K202605

HOSE

- flexible, 3/4 - 7/8 UNF x 15 inch (Prior to P.I.N. 11506444)

2шт.

15

A177478

COUPLING, QUICK, FEM

COUPLING - female, breakaway (Prior to P.I.N. 11506444)

2шт.

16

A137135

PLUG

- dust protective

2шт.

17

K311859

HOSE

- flexible, 3/4 - 7/8 UNF x 15-1/2 inch (P.I.N. 11527472 and after)

2шт.

18

A177478

COUPLING, QUICK, FEM

COUPLING - female, breakaway (P.I.N. 11506444 and after)

2шт.

19

K311861

CAP

- dust, coupling, (Not North America)

2шт.

20

K202430

BRACKET

- coupling support, right-hand

1шт.

21

104-11150

SNAP RING,#150, 1.408", Ext

RING - snap

4шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

REF

INSTRUCTION

HOSES AND COUPLINGS - third valve (Part of UK5807/8, UK5691/2, UK6787)

1шт.

23

K623591

O-RING

- 5/8 inch (16 mm) ID

2шт.

24

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

1шт.

25

K202604

HOSE

- flexible, 3/4 - 7/8 UNF x 17-1/2 inch

1шт.

26

K207572

HOSE

- flexible, 3/4 - 7/8 UNF x 24 inch

1шт.

27

K623591

O-RING

- 5/8 inch (16 mm) ID

2шт.

28

A177478

COUPLING, QUICK, FEM

COUPLING - female, breakaway (Prior to P.I.N. 11506444)

2шт.

29

A137135

PLUG

- dust protective

2шт.

30

A177478

COUPLING, QUICK, FEM

COUPLING - female, breakaway (P.I.N. 11506444 and after)

2шт.

31

K311861

CAP

- dust, coupling

2шт.

32

K210350

BRACKET

- coupling support, single valve and trailer brakes

1шт.

33

K210349

BRACKET

- coupling support, two or more valves and trailer brakes

1шт.

34

A149221

RETAINER

- coupling, Includes: Ref. 35 - 42

1шт.

35

K204685

BRACKET

- coupling

1шт.

36

K949616

CLIP

CLAMP - coupling

1шт.

37

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

38

492-11038

LOCK WASHER,3/8"

1шт.

39

K608424

STUD

- special, 1/2 inch UNC

1шт.

40

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

42

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

REF

INSTRUCTION

ATTACHMENT - forward tube connections, Includes: Ref. 43 & 44

1шт.

43

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss

2шт.

44

218-755

CAP,37 Degree, 3/4"-16

2шт.

45

K200646

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - implement half

1шт.

46

K200645

CAP

COVER - dust, implement coupling

1шт.
