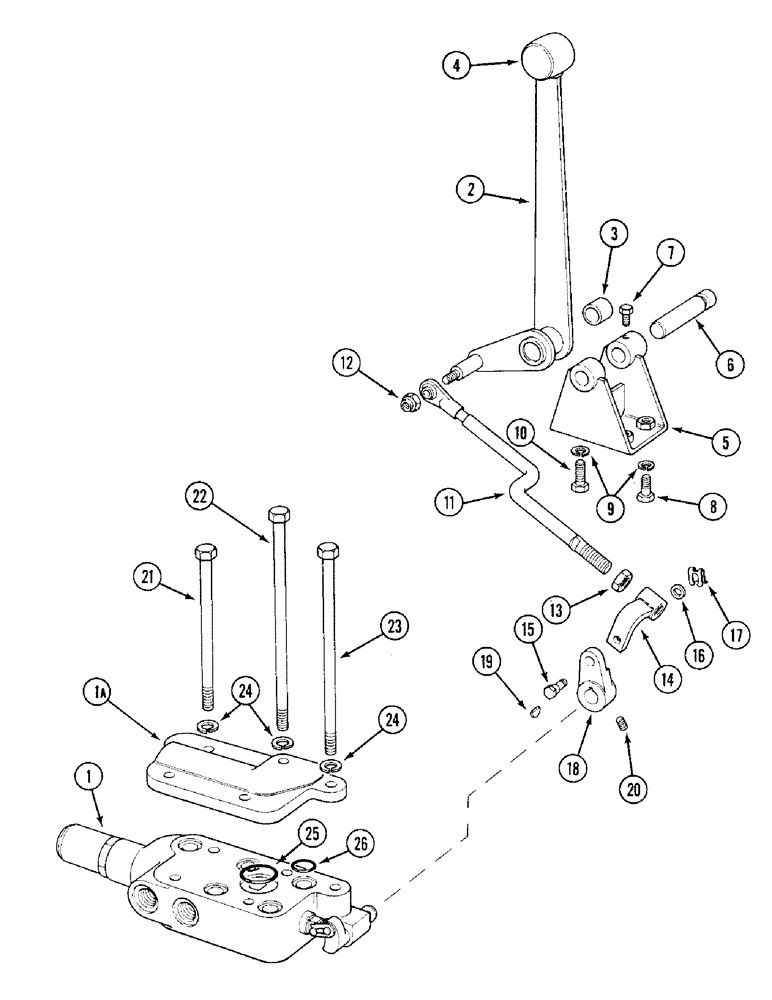

Запчасти Case IH 1394 (8-354) - THIRD REMOTE VALVE, TRACTORS WITH CAB (08) - HYDRAULICS

1

K956421

VALVE

ASSEMBLY - detented, See Figure 8-358

1шт.

1

K206438

VALVE

ASSEMBLY - spring centered, See Figure 8-358

1шт.

1a

K919242

COVER

PLATE - cover

1шт.

UK5691

HOSE

CONTROLS AND FITTING - tractors with single pump, Includes: Ref. 2 - 26 and hoses and couplings

1шт.

UK5692

VALVE

CONTROLS AND FITTING - tractors with tandem pump, Includes: Ref. 2 - 26 and hoses and couplings

1шт.

2

K306132

LEVER

ASSEMBLY - control

1шт.

3

K655430

BUSHING

- leverr

2шт.

4

K306268

KNOB

- lever

1шт.

5

K306104

BRACKET

- control lever

1шт.

6

K306165

SHAFT

- lever

1шт.

7

K650803

BOLT,M6 - 1 x 12mm, Grade 8.8

SCREW - M6, special

1шт.

8

614-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 14 mm

2шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

10

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

1шт.

11

K307197

ROD

- third valve

1шт.

12

425-114

NUT,1/4"-28, G5

1шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

14

K307172

BRACKET

END - rod, third valve

1шт.

15

K306319

PIN

-, Serial Range: rod-lever

1шт.

16

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

17

K625039

CLIP

- retaining

1шт.

18

K306329

LEVER

- third valve

1шт.

19

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(No. 404) #3, 1/8" x 1/2"

1шт.

20

28-56

BOLT,Hex, 5/16" - 24 x 3/8", Gr 8

SCREW - 5/16 UNF x3/8 inch

1шт.

21

413-6104

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

- hex, 3/8 NC x 6-1/2 inch

2шт.

22

413-6144

BOLT,Hex, 3/8" - 16 x 9", Gr 5

- hex, 3/8 NC x 9 inch (Single pump)

1шт.

22

K600469

BOLT

- 3/8 UNC x 9-1/4 inch (Tandem pump)

2шт.

23

K600466

BOLT

- 3/8 UNC x 8-1/2 inch (Single pump)

2шт.

23

15-6152

BOLT,Hex, 3/8" - 16 x 9-1/2", Gr 5

BOLT - 3/8 UNC x 9-1/2 inch (Tandem pump)

1шт.

24

492-11038

LOCK WASHER,3/8"

6шт.

25

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 1-3/16 inch (30 mm) ID

1шт.

26

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

5шт.

REF

INSTRUCTION

HOSES AND COUPLINGS, See Figure 8-356

1шт.
