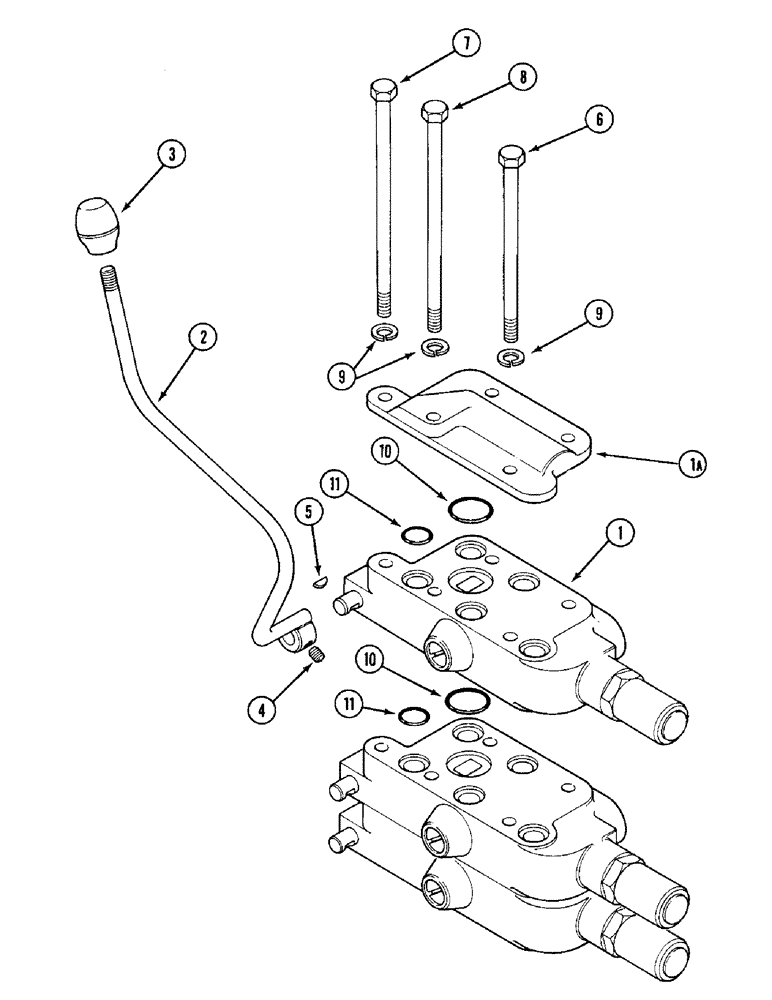

Запчасти Case IH 1394 (8-348) - THIRD REMOTE VALVE ATTACHMENT, TRACTORS WITHOUT CAB (08) - HYDRAULICS

1

K956421

VALVE

ASSEMBLY - detented, See Figure 8-358

1шт.

1

K206438

VALVE

ASSEMBLY - spring centered, See Figure 8-358

1шт.

1a

K919242

COVER

PLATE - cover

1шт.

UK5807

VALVE

FITTINGS ATTACHMENT - single pump, Includes: Ref. 2 - 11 and hoses and couplings

1шт.

UK5808

VALVE

FITTINGS ATTACHMENT - tandem pump, Includes: Ref. 2 - 11 and hoses and couplings

1шт.

2

K307827

LEVER ASSY.

LEVER - hand

1шт.

3

K950493

KNOB

- hand lever

1шт.

4

28-56

BOLT,Hex, 5/16" - 24 x 3/8", Gr 8

SCREW - 5/16 UNF x3/8 inch

1шт.

5

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(No. 404) #3, 1/8" x 1/2"

1шт.

6

413-6104

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

- hex, 3/8 NC x 6-1/2 inch

2шт.

7

K600466

BOLT

- 3/8 UNC x 8-1/2 inch, single pump

1шт.

8

413-6144

BOLT,Hex, 3/8" - 16 x 9", Gr 5

- hex, 3/8 NC x 9 inch, single pump

1шт.

7

K600469

BOLT

- 3/8 UNC x 9-1/4 inch, tandem pump

2шт.

8

15-6152

BOLT,Hex, 3/8" - 16 x 9-1/2", Gr 5

BOLT - 3/8 UNC x 9-1/2 inch, tandem pump

1шт.

9

492-11038

LOCK WASHER,3/8"

6шт.

10

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 1-3/16 inch (30 mm) ID

1шт.

11

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

5шт.

REF

INSTRUCTION

HOSES AND COUPLINGS, See Figure 8-356

1шт.

UK6785

KIT

VALVE ATTACHMENT - third remote detented, Includes: Ref. 1 and fittings attachment

1шт.

1

K956421

VALVE

ASSEMBLY - detented, See Figure 8-358

1шт.

UK5808

VALVE

FITTINGS ATTACHMENT - tandem pump

1шт.
