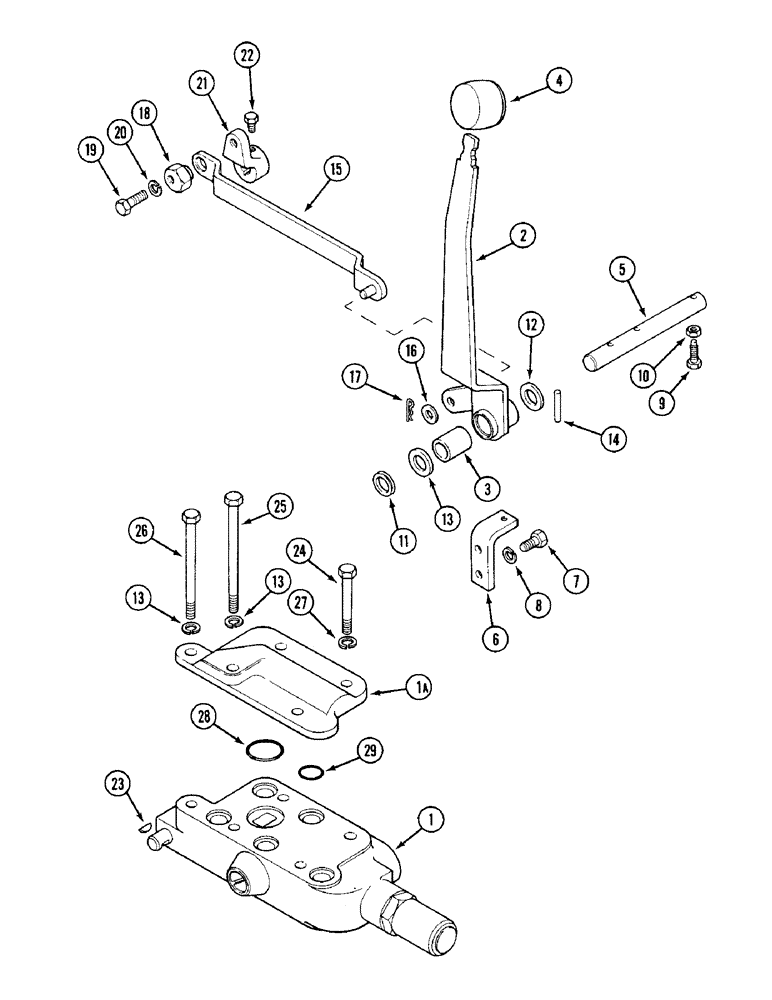

Запчасти Case IH 1394 (8-344) - FIRST REMOTE VALVE, TRACTORS WITHOUT CAB (08) - HYDRAULICS

1

K956421

VALVE

ASSEMBLY - detented, See Figure 8-358, Includes: Ref. 1A

1шт.

1

K206438

VALVE

ASSEMBLY - spring centered, See Figure 8-358, Includes: Ref. 1A

1шт.

1a

K919242

COVER

PLATE - cover

1шт.

1

K204014

VALVE

ASSEMBLY - with float, See Figure 8-358, Includes: Ref. 1A

1шт.

1a

K919242

COVER

PLATE - cover

1шт.

REF

INSTRUCTION

CONTROLS, FITTINGS AND HOSE - tractor with single pump, Includes: Ref. 2 - 29

1шт.

UK5819

KIT

CONTROLS, FITTINGS AND HOSE - tractor with tandem pump, Includes: Ref. 2 - 29

1шт.

2

K307912

LEVER

- hand, first valve, Includes: Ref. 3

1шт.

3

K621377

BUSHING

- hand lever

1шт.

4

K306268

KNOB

- hand lever

1шт.

5

K306203

SHAFT

- hand lever

1шт.

6

K306714

PLATE

- hand lever shaft

1шт.

7

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

2шт.

8

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

9

K306715

SCREW,M6 x 1 x 1mm, Gr 8.8

- shaft retaining, M6

1шт.

10

825-13412

NUT,M12 x 1.25, Cl 8

-M6

1шт.

11

K628130

SEAL

RING - sealing

2шт.

12

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

1шт.

13

K655810

BUSHING

SPACER - shaft

2шт.

14

38-11420?

PIN - roll, 5 30 mm

1шт.

15

K306209

ARM

LINK - tractors with single pump

1шт.

15

K306721

ARM

LINK - tractors with tandem pump

1шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

17

K950865

CLIP

- retaining

1шт.

18

K306196

BUSHING

- eccentric

1шт.

19

K612804

SCREW

BOLT - set, 5/8 UNF x 7/8 inch

1шт.

20

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

1шт.

21

K306197

LEVER

- first valve

1шт.

22

28-56

BOLT,Hex, 5/16" - 24 x 3/8", Gr 8

SCREW - 5/16 UNF x3/8 inch

1шт.

23

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(No. 404) #3, 1/8" x 1/2"

1шт.

24

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

25

K600517

BOLT

- 3/8 UNC x 5-1/4 inch (Single pump)

1шт.

25

K600513

BOLT

- 3/8 UNC x 6 inch (Tandem pump)

1шт.

26

413-676

BOLT,Hex, 3/8" - 16 x 4-3/4", Gr 5

- 3/8 UNC x 4-3/4 inch (Single pump)

2шт.

26

413-688

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

- hex, 3/8 NC x 5-1/2 inch (Tandem pump)

2шт.

27

492-11038

LOCK WASHER,3/8"

5шт.

28

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 1-3/16 inch (30 mm) ID

1шт.

29

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

5шт.

REF

INSTRUCTION

HOSES AND COUPLINGS, See Figure 8-356

1шт.
