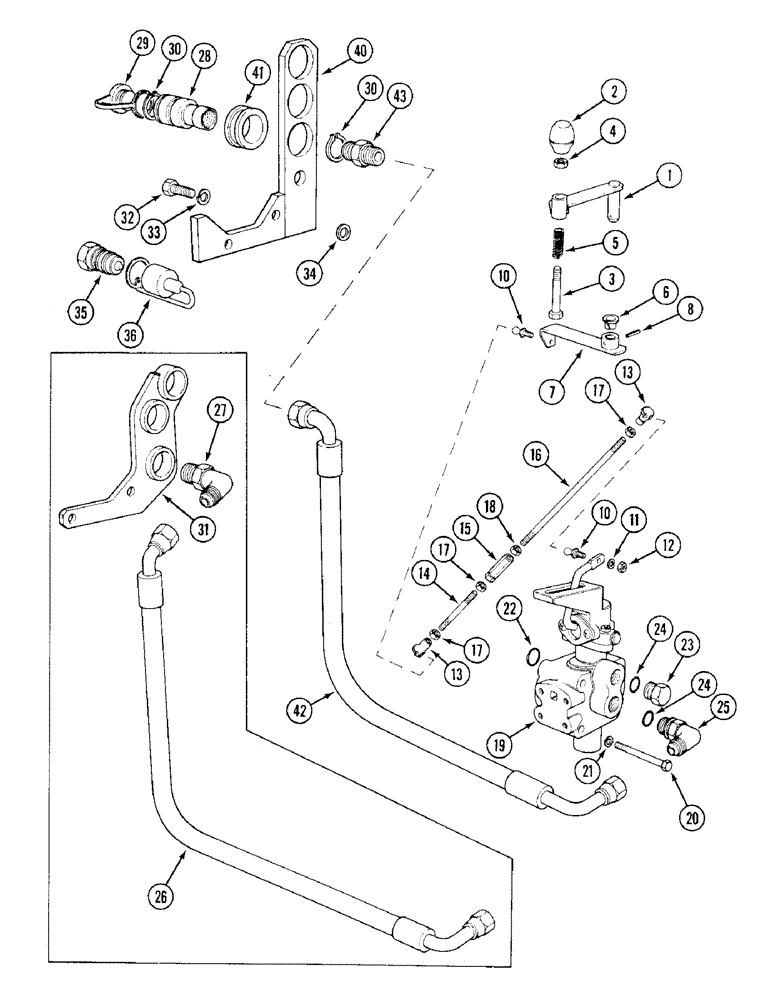

Запчасти Case IH 1394 (8-340) - THREE-WAY VALVE ATTACHMENT, TRACTORS WITH CAB, NOT NORTH AMERICA (08) - HYDRAULICS

UK5663

VALVE

CONTROLS UNIT - three-way valve, Includes: Ref. 1- 18

1шт.

1

K307204

LEVER

- hand

1шт.

2

K950493

KNOB

- hand lever

1шт.

3

K600477

BOLT

- 3/8 UNC x 2-1/2 inch

1шт.

4

425-106

NUT,3/8"-16, Cl 5

1шт.

5

K625059

SPRING

1шт.

6

K621310

BUSHING

- cab floor

2шт.

7

K306494

LEVER

1шт.

8

138-1816

LOCK PIN,1/8" x 1", Slotted, Stainless

Pin, 1/8" x 1, Slotted, Stainless

1шт.

10

K621904

BALL JOINT

PIVOT END - ball, 1/4 inch UNF

2шт.

11

K626552

WASHER

- lock, 1/4 inch

2шт.

12

K617030

NUT

- 1/4 inch UNF

2шт.

13

K621903

BALL JOINT

SOCKET END - 1/4 inch UNF

2шт.

14

K205698

ROD

- 1/4 UNF x 3-1/2 inch

1шт.

15

K949065

SLEEVE

- adjusting, 1/4 inch UNF

1шт.

16

K207243

ROD

- 1/4 UNF x 5 inch (127 mm)

1шт.

17

K617030

NUT

- 1/4 inch UNF

3шт.

18

K617593

NUT

- 1/4 inch UNF, left-hand

1шт.

UK5612

CONTROL

THREE-WAY VALVE ATTACHMENT, Includes: Ref. 19 - 30

1шт.

19

REF

INSTRUCTION

VALVE ASSEMBLY, See Figure 8-342

1шт.

20

K600416

BOLT

- 3/8 UNC x 3 inch

4шт.

21

492-11038

LOCK WASHER,3/8"

4шт.

22

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

23

K920826

O-RING

PLUG - 3/4 inch UNF

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

25

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

1шт.

26

K202579

HOSE

TUBE - flexible, 3/4 - 7/8 UNF x 25-1/4 inch (640 mm) (Prior to P.I.N. 11503469)

1шт.

27

K622113

FITTING

ELBOW - 7/8 inch UNF x 90 degrees

1шт.

28

A177478

COUPLING, QUICK, FEM

COUPLING - tractor half

1шт.

29

A137135

PLUG

- dust protective

1шт.

30

104-11150

SNAP RING,#150, 1.408", Ext

RING - snap

2шт.

UK4345

BREAKER POINTS

BRACKET ASSEMBLY - mounting (Prior to P.I.N. 11503469), Includes: Ref. 31 - 34

1шт.

31

K202578

BRACKET

- coupling support without trailer brakes

1шт.

32

K603141

SCREW

BOLT - 1/2 inch UNC x 1-1/4 inch

2шт.

33

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

2шт.

34

K626686

WASHER

- flat, 1/2 inch (13 mm)

2шт.

35

K200646

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - quick release, implement half

1шт.

36

K200645

CAP

COVER - dust, implement coupling

1шт.

UK6754

BRACKET ASSEMBLY - mounting (P.I.N. 11503469 and after), Includes: Ref. 32 - 40

1шт.

32

K603141

SCREW

BOLT - 1/2 inch UNC x 1-1/4 inch

2шт.

33

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

2шт.

34

K626686

WASHER

- flat, 1/2 inch (13 mm)

2шт.

40

K210350

BRACKET

- coupling support with trailer brakes

1шт.

41

A149221

RETAINER

- coupling

1шт.

42

K210342

HOSE

TUBE - flexible (P.I.N. 11503469 and after)

1шт.

43

K920858

ADAPTER

UNION - 7/8 UNF (P.I.N. 11503469 and after)

1шт.
