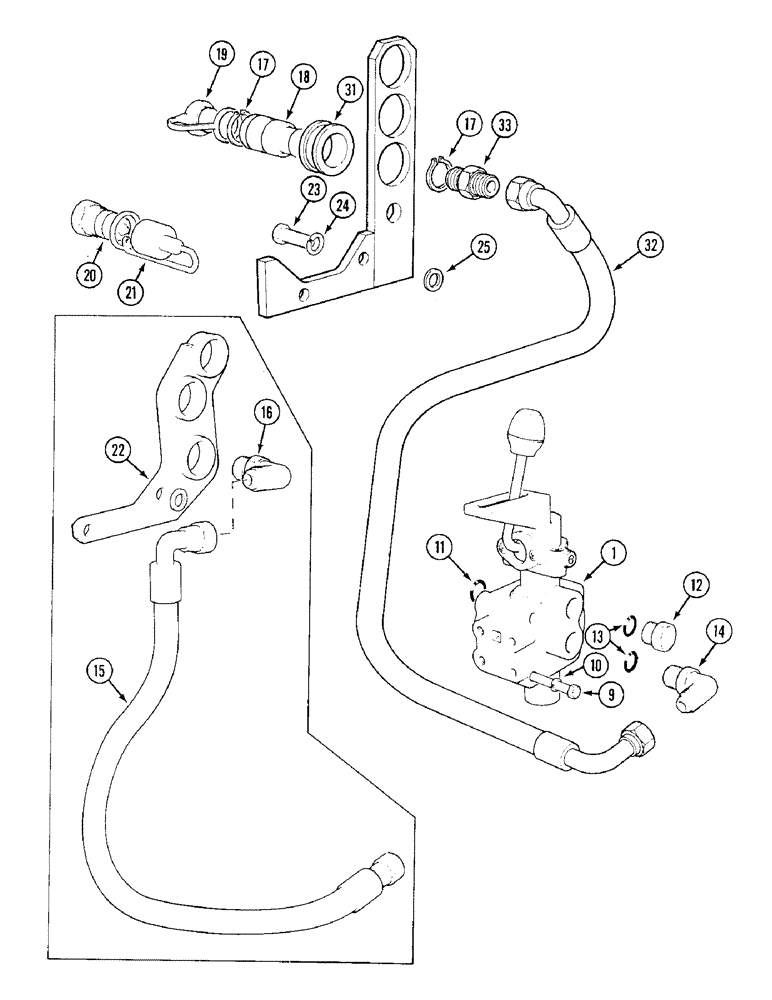

Запчасти Case IH 1394 (8-338) - THREE-WAY VALVE ATTACHMENT, TRACTORS WITHOUT CAB (08) - HYDRAULICS

UK5789

VALVE

THREE-WAY VALVE ATTACHMENT, Includes: Ref. 1 - 19

1шт.

1

K262225

VALVE

- three-way

1шт.

9

K600416

BOLT

- 3/8 UNC x 3 inch

4шт.

10

492-11038

LOCK WASHER,3/8"

4шт.

11

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

12

K920826

O-RING

PLUG - 3/4 inch UNF

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

1шт.

15

K202579

HOSE

TUBE - flexible, 3/4 - 7/8 UNF x 25-1/4 inch (640 mm) (Prior to P.I.N. 11503469)

1шт.

16

K622113

FITTING

ELBOW - 7/8 inch UNF x 90 degrees

1шт.

17

104-11150

SNAP RING,#150, 1.408", Ext

RING - snap

2шт.

18

A177478

COUPLING, QUICK, FEM

COUPLING - female, breakaway, quick release, tractor half

1шт.

19

A137135

PLUG

- dust, tractor coupling

1шт.

20

K200646

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - quick release, (Implement half), Includes: Ref. 21 - 25

1шт.

21

K200645

CAP

COVER - dust, implement coupling

1шт.

UK4345

BREAKER POINTS

BRACKET ASSEMBLY - mounting (Prior to P.I.N. 11503469)

1шт.

22

K202578

BRACKET

- coupling support

1шт.

23

K603141

SCREW

BOLT - 1/2 inch UNC x 1-1/4 inch

2шт.

24

K19484

LOCK WASHER

WASHER - lock, 1/2 inch, lock, 1/2 inch

2шт.

25

K626686

WASHER

- flat, 1/2 inch (13 mm)

2шт.

UK6754

BRACKET ASSEMBLY - mounting (P.I.N. 11503469 and after), Includes: Ref. 23 - 30

1шт.

23

K603141

SCREW

BOLT - 1/2 inch UNC x 1-1/4 inch

2шт.

24

K19484

LOCK WASHER

WASHER - lock, 1/2 inch, lock

2шт.

25

K626686

WASHER

- flat, 1/2 inch (13 mm)

2шт.

30

K210350

BRACKET

- coupling support, with trailer brake and one remote

1шт.

31

A149221

RETAINER

- coupling, use with K210350

1шт.

32

K210342

HOSE

TUBE - flexible, 3/4 -7/8 inch (686 mm) (P.I.N. 11503469 and after)

1шт.

33

K920858

ADAPTER

UNION - 7/8 UNF (P.I.N. 11503469 and after)

1шт.
