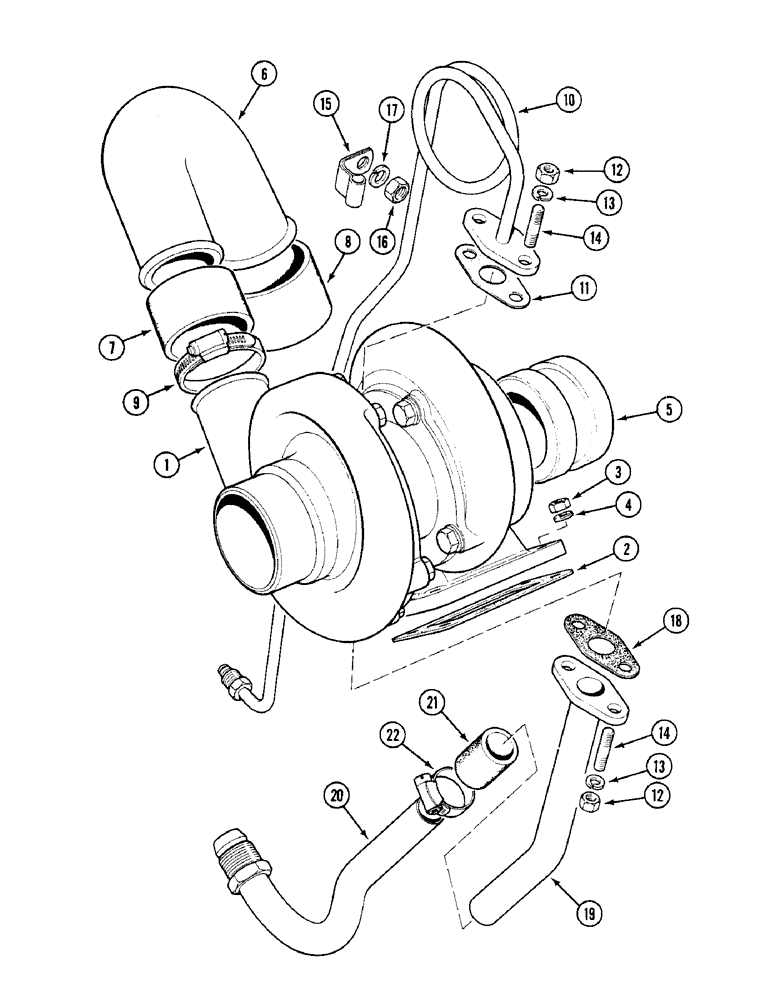

Запчасти Case IH 1394 (2-12) - TURBOCHARGER (02) - ENGINE

1

K207513

TURBOCHARGER

1шт.

2

K929727

GASKET,0.38mm Thk

1шт.

3

425-106

NUT,3/8"-16, Cl 5

4шт.

4

K19472

WASHER

- flat, 3/8 inch (10 mm)

4шт.

5

K929731

TUBE,2.375" ID x 2.875" OD

CONNECTOR - exhaust

1шт.

6

K953118

PIPE

- turbocharger to inlet manifold

1шт.

7

K626803

HOSE,2.31 mm ID x 50.80 mm

1шт.

8

K626802

HOSE

- front to rear tube

1шт.

9

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

CLAMP, HOSE, , Adj #36, 1.81/2.75 Type F Worm

4шт.

10

K207508

HYD TUBE

TUBE - oil, Serial Range: block-turbocharger

1шт.

11

K207511

OIL SEAL

- oil inlet

1шт.

12

825-1408

NUT,M8, Cl 8

4шт.

13

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

14

K655093

STUD

- M8 x 32 mm

4шт.

15

K628386

CLIP

- turbocharger tube

1шт.

16

425-106

NUT,3/8"-16, Cl 5

1шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

K207488

OIL SEAL

- oil outlet

1шт.

19

K207663

PIPE

TUBE - oil return, upper

1шт.

20

K202554

PIPE,0.75" OD x 10.875, 4.25" L

TUBE - oil return, lower

1шт.

21

K626816

HOSE

- 3/4 x 2 inch (19 x 51 mm)

1шт.

22

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

2шт.
