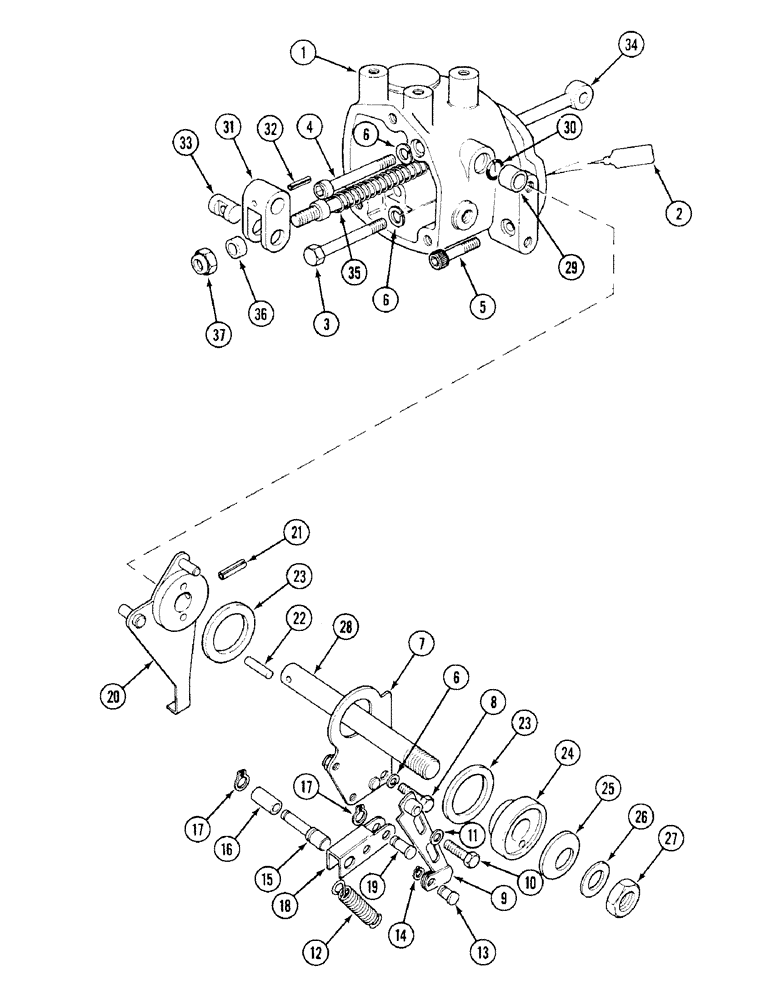

Запчасти Case IH 1394 (8-328) - CONTROL HOUSING ASSEMBLY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
K203118
LEVER
HOUSING - control, Includes: Ref. 2
1шт.
2
REF
INSTRUCTION
SILMATE RTV - gasket replacement (See your authorized Case dealer)
1шт.
3
K600217
BOLT
- 5/16 UNC x 3 inch
1шт.
4
61-33148
HEX SOC SCREW,5/16"-18 x 3"
SCREW, Hex Soc Hd, 5/16"-18 x 3"
1шт.
5
61-524
HEX SOC SCREW,5/16"-18 x 1 1/2"
BOLT - hex socket head, 5/16 NC x 1-1/2 inch
1шт.
6
K19481
SPRING WASHER
WASHER - lock, 5/16 inch
7шт.
7
K950555
BRACKET
PLATE - friction
1шт.
8
K602846
SCREW,5/16" - 18 x 5/8", Gr S
BOLT - 5/16 UNC x 5/8 inch
2шт.
9
K949541
SPRING
CARRIER - spring
1шт.
10
K602746
SCREW,1/4" - 20 x 1/2"
BOLT - 1/4 UNC x 1/2 inch
2шт.
11
K626662
WASHER
- 1/4 inch (6 mm)
2шт.
12
K950773
SPRING
- tension
1шт.
13
K949554
PIN
- clevis
1шт.
14
K621482
RING, SNAP
RING - snap, 5/16 inch (8 mm) external
1шт.
15
K949543
PIN
- roller
1шт.
16
K949544
ROLLER
- pin
1шт.
17
100-1125
SNAP RING,#25, Ext
Ring, Snap, (6 mm) #25, Ext
3шт.
18
K949542
SPRING
LEVER - return, spring
1шт.
19
K949545
PIN
- pivot, 1/4 x 3/4 inch
1шт.
20
K202811
LEVER
- friction
1шт.
21
38-11020
LOCK PIN,5/32" x 1 1/4", Slotted
Pin, 5/32" x 1 1/4", Slotted
2шт.
22
37-1316
DOWEL,3/16" x 1"
PIN - dowel, locating
2шт.
23
K262715
WASHER
- friction
2шт.
24
K950864
PLATE
- friction
1шт.
25
K626740
WASHER
- Belleville, 5/8 inch
2шт.
26
K626686
WASHER
- flat, 1/2 inch (13 mm)
1шт.
NSS
NOT SOLD SEPARAT
SHAFT ASSEMBLY - friction lever, Includes: Ref. 27 & 28
1шт.
27
K617273
NUT
- self-locking, 1/2 inch UNF
2шт.
28
K949266
SHAFT
- lever
1шт.
29
K627068
BUSHING
SLEEVE - plastic
1шт.
30
K623424
RING
- sealing, 1/2 inch (13 mm) ID
1шт.
31
K909584
FORK
- shifting
1шт.
32
38-31016
PIN,5/32" x 1", Coiled
1шт.
33
K903370
PIN
- rod
1шт.
34
K909585
ROD
- connecting
1шт.
35
K625161
SPRING
- return
1шт.
36
K903367
COLLAR
- rod
2шт.
37
K964098
NUT
- self-locking, 5/16 inch UNC
1шт.
Выбрано товаров: 38
