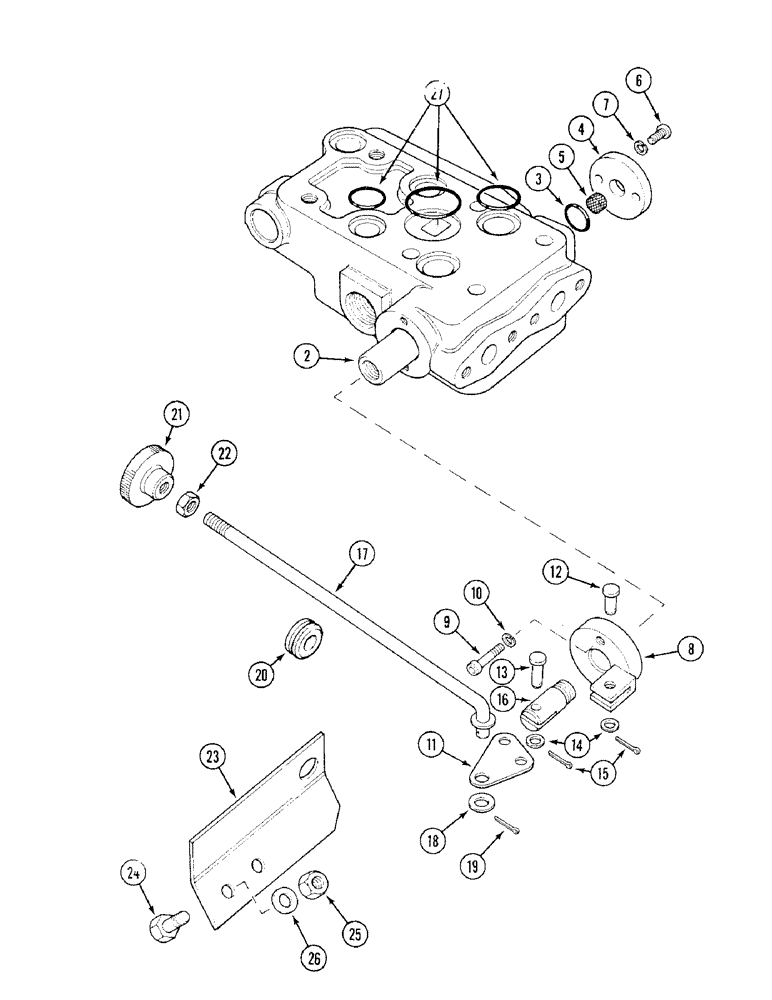

Запчасти Case IH 1394 (8-318) - COMBINING VALVE, TRACTORS WITHOUT CAB (08) - HYDRAULICS

1

K307903

HOUSING

VALVE ASSEMBLY - combining, Includes: Ref. 2 - 15

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

3

K625405

O-RING,0.549" ID x 0.103" Width

- 9/16 inch (14 mm) ID

2шт.

4

K202852

CAP

ASSEMBLY - end

1шт.

5

K915393

FOAM

PAD - breather

1шт.

6

K616485

SCREW

- No. 10 UNF x 1/2 inch

2шт.

7

K19488

SPRING WASHER

- lock, 3/16 inch

2шт.

8

K307883

CAP

- end

1шт.

9

K616489

SOCKET/RECEPTACLE

SCREW - No. 10 UNF x 1 inch

2шт.

10

K19488

SPRING WASHER

- lock, 3/16 inch

2шт.

11

K206717

LEVER

- actuating

1шт.

12

K625981

PIN

- clevis, 1/4 x 9/16 inch

1шт.

13

K625969

PIN

- clevis, 1/4 x 13/16 inch

1шт.

14

K627473

WASHER

- 1/4 inch (6 mm)

2шт.

15

632-551

COTTER PIN,M1.6 x 10

PIN - cotter, 1.6 x 10 mm

2шт.

16

K203441

SPOOL

EXTENSION - spool

1шт.

17

K306431

ROD

- hand

1шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

19

632-576?

PIN - cotter, 2 x 12 mm

1шт.

20

248-1140?

GROMMET - racket, 16 mm

1шт.

21

K921826

SERRATED NUT

- rod, 5/16 inch UNF

1шт.

22

425-115

NUT,5/16"-24, G5

- lock, 5/16 inch UNF

1шт.

23

K307864

BRACKET

- control rod

1шт.

24

K650342

BOLT

- M8 x 20 mm

2шт.

25

825-1408

NUT,M8, Cl 8

2шт.

26

825-1408

NUT,M8, Cl 8

2шт.

27

REF

INSTRUCTION

O-RING - seal, See Figure 8-310

1шт.
