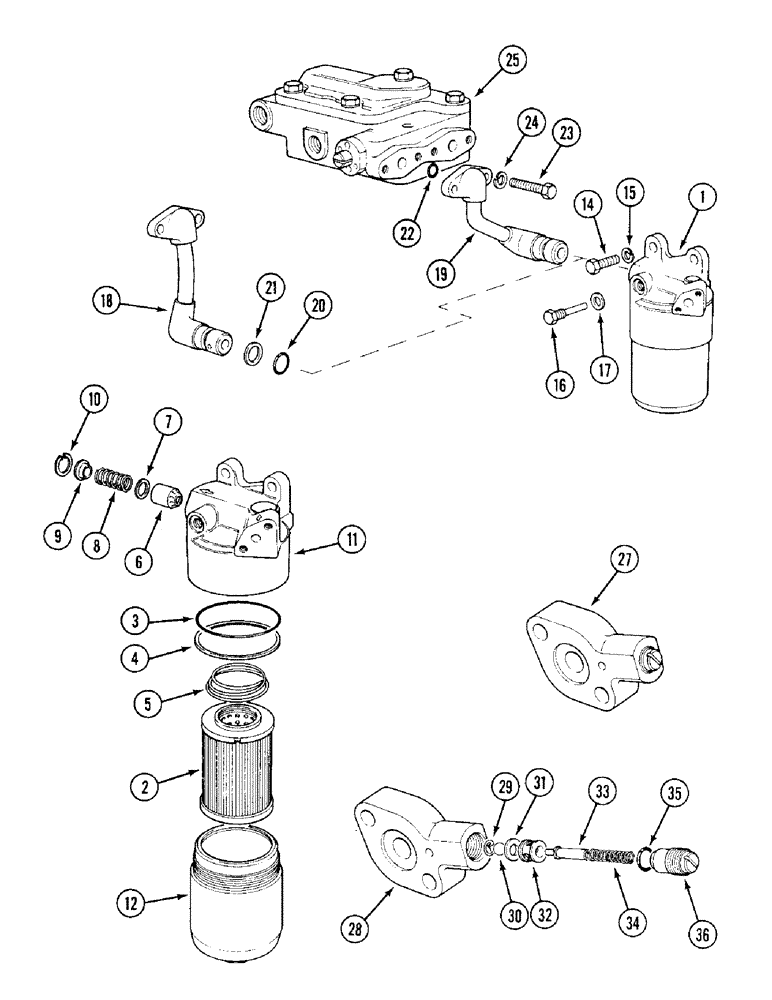

Запчасти Case IH 1394 (8-316) - FILTER AND BLEED VALVE (08) - HYDRAULICS

1

K952363

FILTER

ASSEMBLY - hydraulic, Includes: Ref. 2 - 12

1шт.

2

K210049

FILTER, ELEMENT

ELEMET KIT - filter (Replaces K946095)

1шт.

3

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

- 3-5/8 x 1/8 inch wide

1шт.

4

K628915

RING

- backup

1шт.

5

K625299

SPRING

- element

1шт.

6

K953564

VALVE

PLUNGER - by pass

1шт.

7

K626406

WASHER

- plunger

1шт.

8

K625298

WASHER

SPRING - plunger

1шт.

9

K953563

RETAINER

- spring

1шт.

10

K621493

SNAP RING,#81K, .853", Int, Spiral

RING - snap

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - filter

1шт.

12

NSS

NOT SOLD SEPARAT

BOWL - filter

1шт.

14

K602906

SCREW

BOLT - 3/8 UNC x 1-1/4 inch

2шт.

15

492-11038

LOCK WASHER,3/8"

2шт.

16

K947791

PIN

BOLT - 7/16 inch UNC

1шт.

17

K626522

SEALING WASHER

- sealing, 7/16 inch

1шт.

18

K202493

PIPE,0.625" OD

TUBE - filter outlet, single pump, without trailer brakes

1шт.

19

K202492

PIPE,0.625" OD

TUBE - filter outlet, tandem pump, without trailer brakes

1шт.

20

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

21

S7172

GASKET

RING - O-ring backup, backup

1шт.

22

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

23

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

24

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

25

REF

INSTRUCTION

VALVE ASSEMBLY - combining (Tandem pump), See Figures 8-318 and 8-320, Includes: Ref. 28 - 36

1шт.

27

K928525

VALVE

ASSEMBLY - bleed, air removal, Includes: Ref. 28 - 36

1шт.

28

K928518

HOUSING

BODY - valve

1шт.

29

K924115

BALL

RETAINER - ball

1шт.

30

K620089

BALL

- steel, 9/32 inch (7 mm)

1шт.

31

K626792

WASHER

- 5/16 inch (8 mm) Special

1шт.

32

K924321

VALVE

SEAT - valve

1шт.

33

K924117

PLUNGER

- valve

1шт.

34

K625233

SPRING

- plunger

1шт.

35

K24554

O-RING

RING - plug, 3/8 inch (10 mm) ID

1шт.

36

K924116

PLUG

- 5/8 inch UNF

1шт.
