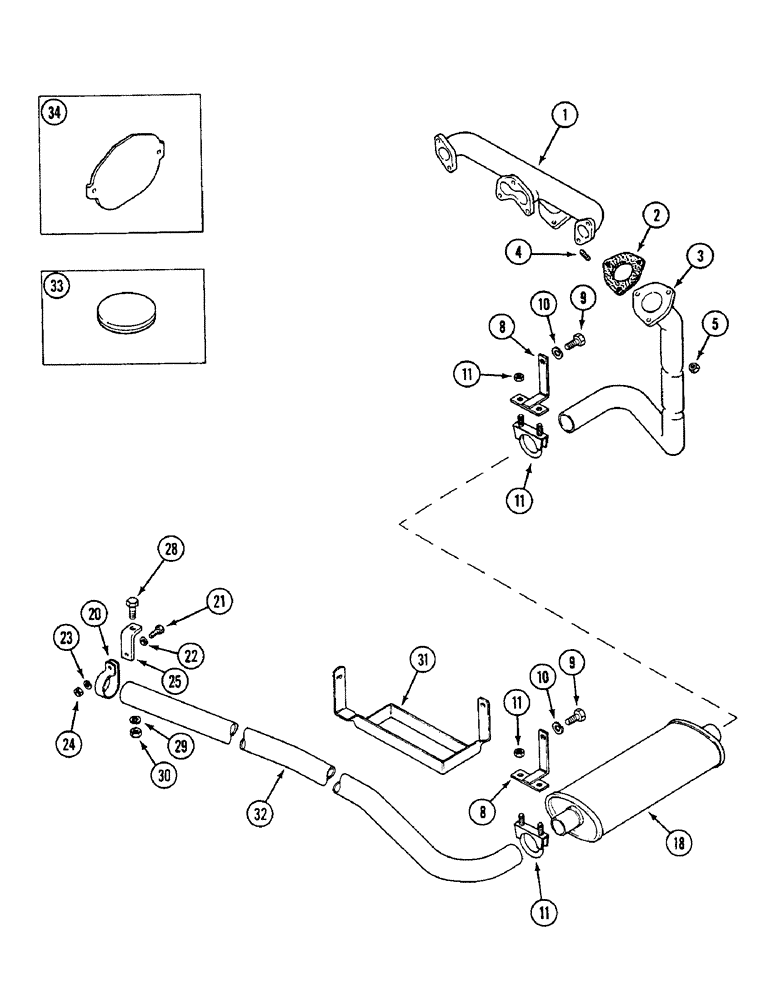

Запчасти Case IH 1394 (2-11A) - DOWNSWEPT EXHAUST (02) - ENGINE

1

K205227

COLLAR

MANIFOLD - exhaust

1шт.

2

K912441

GASKET

- manifold

1шт.

3

K205746

PIPE

- exhaust

1шт.

4

K608203

STUD

- inlet manifold, 3/8 NC x 1-7/16 inch

3шт.

5

425-106

NUT,3/8"-16, Cl 5

3шт.

8

K308016

BRACKET

STRAP - support, exhaust

2шт.

9

K603304

SCREW

BOLT - hex, 5/8 x 1-1/4 inch NC

2шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

K207596

CLAMP

CLIP - exhaust pipe

2шт.

18

K304530

MUFFLER

- exhaust

1шт.

20

K628379

CLIP

- bracket

1шт.

21

K602936

SCREW,3/8" - 16 x 1 1/2", Gr S

BOLT - hex, 3/8 NC x 1-1/4 inch

1шт.

22

K19472

WASHER

- flat, 3/8 inch (10 mm)

1шт.

23

492-11038

LOCK WASHER,3/8"

1шт.

24

425-106

NUT,3/8"-16, Cl 5

1шт.

25

K204649

BRACKET

- muffler

1шт.

28

K603306

BOLT

- hex, 5/8 NC x 1-1/2 inch

1шт.

29

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

30

K607006

NUT

- hex, 5/8 inch NC

1шт.

31

K304985

GUARD

- exhaust pipe

1шт.

32

K205998

PIPE

- exhaust

1шт.

33

K304967

INSERT

- hood opening

1шт.

33

K956075

INSERT

- hood opening, 3-1/4 inch

1шт.

33

K914347

INSERT

- hood opening, 2-3/4 inch

1шт.

34

K912979

WASHER

PLATE - cover

1шт.
