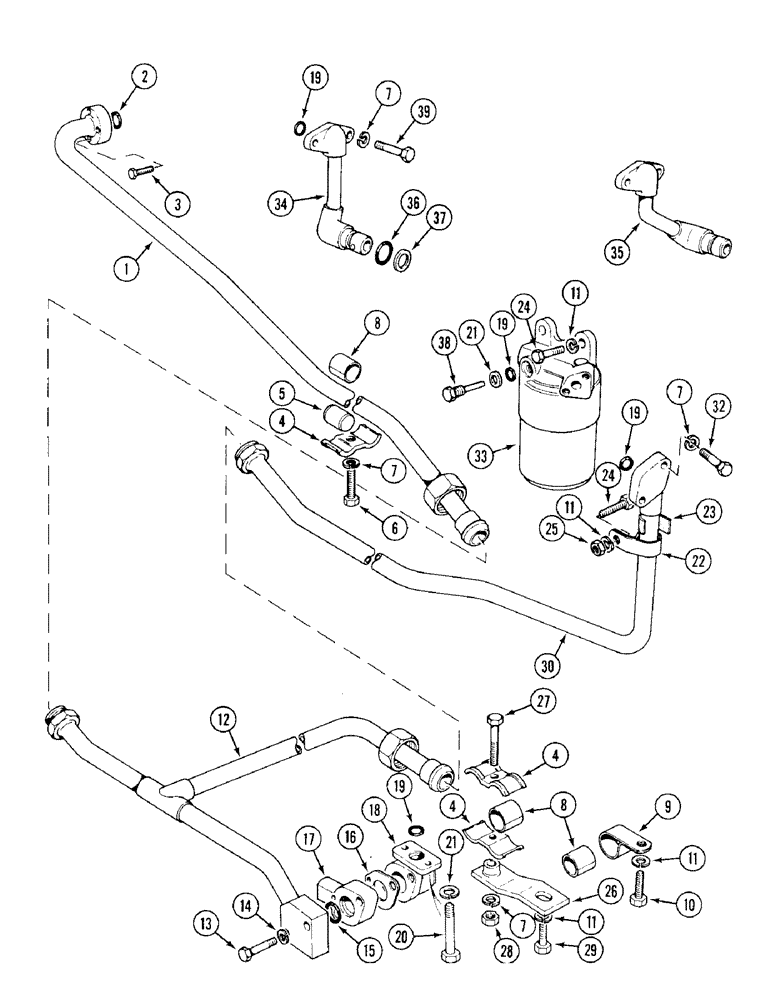

Запчасти Case IH 1394 (8-312) - HIGH PRESSURE TUBES, SINGLE PUMP AND REAR CHAMBER OF TANDEM PUMP (08) - HYDRAULICS

1

K200243

PIPE

TUBE - rear pump outlet

1шт.

2

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

1шт.

3

61-32516

HEX SOC SCREW,1/4"-20 x 1"

BOLT - hex socket, 1/4 NC x 1 inch

4шт.

4

K916899

BRACKET

- tube to main frame

3шт.

5

K919418

SUPPORT

BLOCK - support, single pump

2шт.

6

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

7

K19481

SPRING WASHER

WASHER - lock, 5/16 inch, lock

7шт.

8

K200258

BUSHING

SLEEVE - nylon

3шт.

9

K200499

CLIP

- tube

1шт.

10

K602902

SCREW

BOLT - 3/8 UNC x 3/4 inch

1шт.

11

492-11038

LOCK WASHER,3/8"

4шт.

12

K200244

PIPE

TUBE - relief, Serial Range: valve-unions

1шт.

13

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

238-5211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 5, 75 Duro

1шт.

16

K928522

SEAL

- valve

1шт.

17

K928525

VALVE

ASSEMBLY - bleed, See Figure 8-316

1шт.

18

K952323

VALVE

- relief, pre-set assembly

1шт.

Adjusting shims as follows...

1шт.

19

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

2шт.

20

K600608

BOLT

- 7/16 UNC x 2-1/4 inch

2шт.

21

K626522

SEALING WASHER

- sealing, 7/16 inch, sealing

3шт.

22

K621686

CLIP

- tube

1шт.

23

K628240

STRIP

- rubber

1шт.

24

K602906

SCREW

BOL T - 3/8 UNC x 1-1/4 inch

3шт.

25

280136

NUT,3/8"-16, G8

1шт.

26

K200251

BRACKET

- tube clip

1шт.

27

K600205

BOLT

- 5/16 UNC x 1-1/2 inch

1шт.

28

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

29

K602902

SCREW

BOLT - 3/8 UNC x 3/4 inch

1шт.

30

K200249

PIPE

TUBE -, Serial Range: union-filter

1шт.

32

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

2шт.

33

K952363

FILTER

ASSEMBLY - hydraulic, See Figure 8-299

1шт.

34

K202493

PIPE,0.625" OD

TUBE - filter outlet, single pump, without trailer brakes

1шт.

35

K202492

PIPE,0.625" OD

TUBE - filter outlet, tandem pump, without trailer brakes

1шт.

36

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

37

S7172

GASKET

RING - back-up, 3/4 inch (19 mm) ID

1шт.

38

K947791

PIN

BOLT - 7/16 inch UNC

1шт.

39

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

K917558

SHIM

- 0.003 mm (UAR)

1шт.

K917559

SHIM

- 0.007 mm (UAR)

1шт.

K917661

PIN

SHIM - 0.005 mm (UAR)

1шт.
