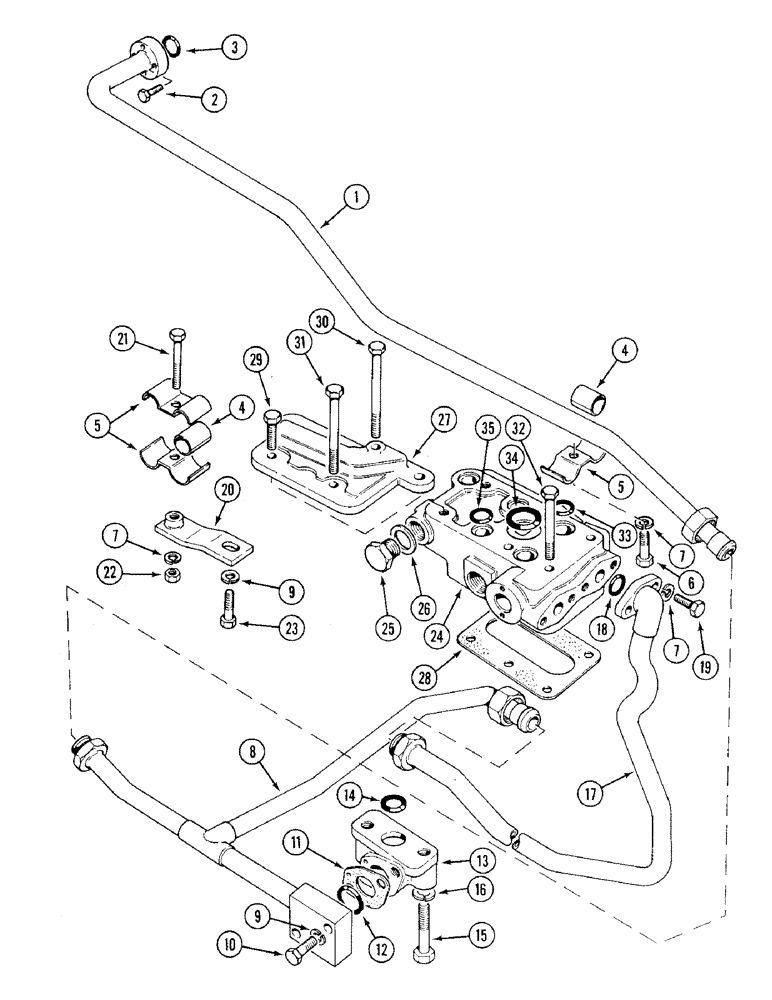

Запчасти Case IH 1394 (8-310) - HIGH PRESSURE TUBES, FRONT CHAMBER OF TANDEM PUMP (08) - HYDRAULICS

1

K200250

PIPE,42.937, 8.703" L

TUBE - outlet, front pump

1шт.

2

61-32516

HEX SOC SCREW,1/4"-20 x 1"

BOLT - hex socket, 1/4 NC x 1 inch

4шт.

3

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

1шт.

4

K200258

BUSHING

SLEEVE - nylon

4шт.

5

K916899

BRACKET

- tube clip

4шт.

6

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- hex, 5/16 NC x 1-1/8 inch

2шт.

7

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

3шт.

8

K200253

PIPE

TUBE - relief, Serial Range: valve-union

1шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

107-1618

PREV TORQUE BOLT,Locking, 3/8"-16 x 1 1/8", G8

BOLT - 3/8 inch UNC

2шт.

11

K928522

SEAL

- valve and tube

1шт.

12

238-5211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 5, 75 Duro

1шт.

13

K952323

VALVE

- relief, pre-sett

1шт.

14

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

15

K600608

BOLT

- 7/16 UNC x 2-1/4 inch

2шт.

16

K626522

SEALING WASHER

- sealing, 7/16 inch

4шт.

17

K200252

PIPE,33.312, 14.562" L

TUBE - , union to combining valve (Standard tractor)

1шт.

17

K204592

PIPE

TUBE - , union to combining valve (With cab)

1шт.

18

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

2шт.

19

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

20

K200251

BRACKET

- tube clip

1шт.

21

K600205

BOLT

- 5/16 UNC x 1-1/2 inch

1шт.

22

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

23

K602902

SCREW

BOLT - 3/8 UNC x 3/4 inch

1шт.

24

REF

INSTRUCTION

VALVE ASSEMBLY - combining, See Figures 8-318 and 8-320

1шт.

25

K619528

PLUG

- oil return port, 7/8 inch UNF

1шт.

26

K30085

GASKET

WASHER - s fiber, 7/8 inch (22 mm)

1шт.

27

K919242

COVER

PLATE - cover

1шт.

28

K917387

GASKET

- valve

1шт.

29

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

30

413-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex, 3/8 NC x 4-1/4 inch (Tandem pump)

1шт.

31

K600419

BOLT

- 3/8 UNC x 3-3/4 inch (Tandem pump)

2шт.

32

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch (Tandem pump)

1шт.

33

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

34

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 1-3/16 inch (30 MM) ID

1шт.

35

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

3шт.
