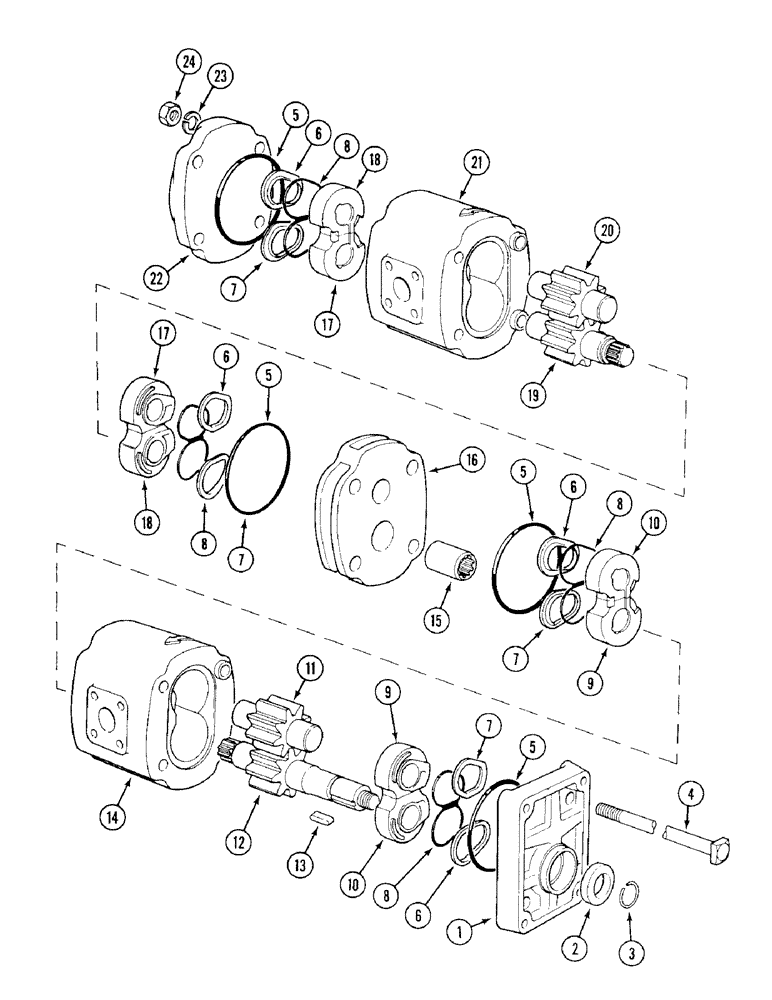

Запчасти Case IH 1394 (8-308) - TANDEM HYDRAULIC PUMP - DOWTY (08) - HYDRAULICS

1

K954263

PUMP

ASSEMBLY - hydraulic tandem (Dowty IP3044-IP3036)

1шт.

1

K962568

FLANGE

- mounting, Includes: Ref. 2 - 24

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, flange

1шт.

Part of Pump Seal Kit, P/N K260307

1шт.

3

A48381

RING

- snap, support

1шт.

4

A48287

BOLT

- through, 3/8 inch UNF square head

4шт.

5

NSS

NOT SOLD SEPARAT

O-RING - sealing, pump

4шт.

Part of Pump Seal Kit, P/N K260307

1шт.

6

NSS

NOT SOLD SEPARAT

RING - backing

4шт.

REF #1 - #6 IF DEALER WANTS TO ORDER A COMPLETE SET OF 4 RINGS INSTEAD OF ORDERING THEM INDIVIDUALLY, ORDER P/N K261069.

1шт.

Part of Pump Seal Kit, P/N K260307

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backing

4шт.

REF #1 - #6 IF DEALER WANTS TO ORDER A COMPLETE SET OF 4 RINGS INSTEAD OF ORDERING THEM INDIVIDUALLY, ORDER P/N K261069.

1шт.

Part of Pump Seal Kit, P/N K260307

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - lobe, pump

4шт.

REF #1 - #6 IF DEALER WANTS TO ORDER A COMPLETE SET OF 4 RINGS INSTEAD OF ORDERING THEM INDIVIDUALLY, ORDER P/N K261069.

1шт.

Part of Pump Seal Kit, P/N K260307

1шт.

9

A49680

- front gear

2шт.

10

A48377

GEAR

BUSHING - front gear

2шт.

11

A48379

GEAR

- driven, front pump

1шт.

12

A49681

GEAR

DIODE - drive, front pump

1шт.

13

NSS

NOT SOLD SEPARAT

KEY - drive gear

1шт.

REF #1 - #6 IF DEALER WANTS TO ORDER A COMPLETE SET OF 4 RINGS INSTEAD OF ORDERING THEM INDIVIDUALLY, ORDER P/N K261069.

1шт.

Part of Pump Seal Kit, P/N K260307

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - pump, front

1шт.

15

A48380

COUPLING, BREAK AWAY

COUPLING - pump, splined

1шт.

16

NSS

NOT SOLD SEPARAT

PLATE - center, pump

1шт.

17

A49682

BUSHING

- rear gear

2шт.

18

A48384

BUSHING

- rear gear

2шт.

19

A49683

GEAR

- drive, rear pump

1шт.

20

A48386

GEAR

- driven, rear pumpp

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - pump, rear

1шт.

22

K962569

COVER

- end, pump

1шт.

23

492-11038

LOCK WASHER,3/8"

4шт.

24

25-176

NUT,3/8"-24, G5, Hvy

- 3/8 inch UNF hex

4шт.

K260307

SEAL KIT

KIT - pump, Includes: Ref. 2, 5, 6, 7, 8, 13

1шт.
