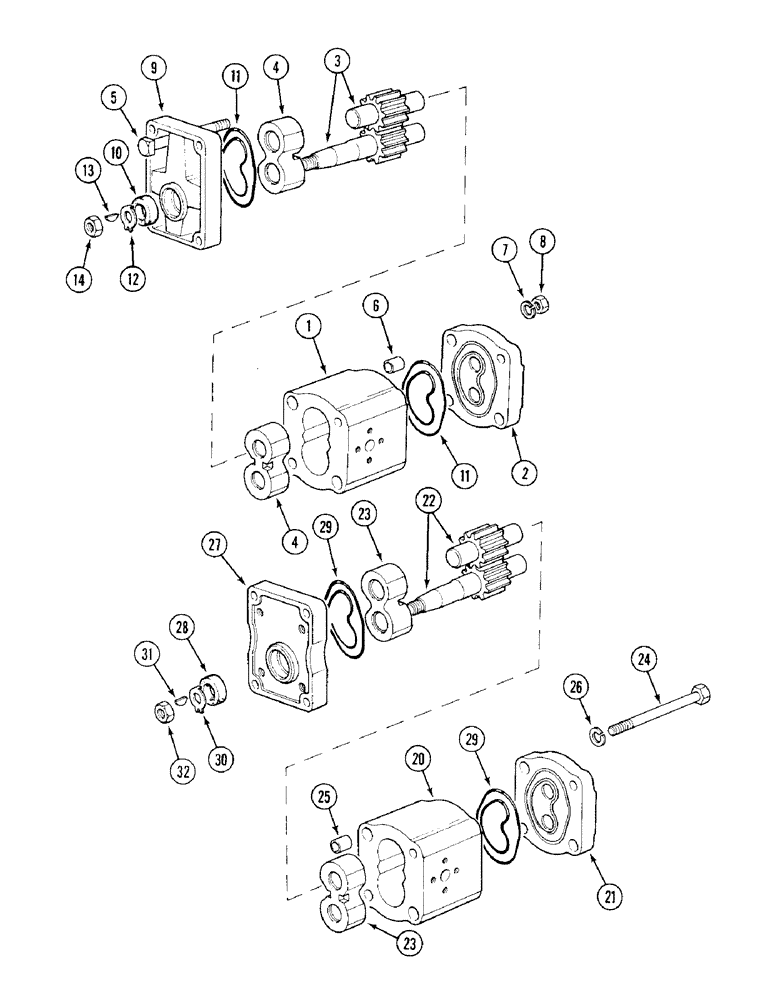

Запчасти Case IH 1394 (8-304) - SINGLE HYDRAULIC PUMP - SUNDSTRAND (08) - HYDRAULICS

K949605

PUMP

ASSEMBLY - hydraulic, single (Sundstrand A33/17268), Includes: Ref. 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

2

K962112

COVER

- pump

1шт.

3

K964838

ROTOR

S - pump(Set of 2)

1шт.

4

K964840

BEARING

ASSEMBLY - (With bushings)

2шт.

5

K964839

BOLT

- 3/8 inch UNF

4шт.

6

K964920

PIN

DOWEL - ring

4шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

8

K964837

NUT

- 3/8 inch UNF

4шт.

9

K962100

PLATE

FLANGE - pump

1шт.

10

K962106

OIL SEAL,16.13mm ID x 28.83mm OD x 7.92mm Thk

- oil, 5/8 x 1-1/8 x 5/16 inch (16 x 28 x 8 mm)

1шт.

11

K964831

SEAL

SEAL KIT - pump (Includes item 10)

1шт.

12

K626380

WASHER

- tab, coupling nut

1шт.

13

K622386

KEY

- Woddruff, No. 405

1шт.

14

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

K307945

PUMP

ASSEMBLY - single (Sundstrand AFGP16-OL27131) (Replaces K944907), Includes: Ref. 20 - 32

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

21

K262172

COVER

- pump

1шт.

22

K262179

GEAR

ROTORS - pump (Set of 2)

1шт.

23

K262170

BUSHING

BEARING ASSEMBLY - (With bushings)

2шт.

24

K262173

BOLT

- 3/8 inch UNF

4шт.

25

K964920

PIN

DOWEL - ring

2шт.

26

492-11038

LOCK WASHER,3/8"

4шт.

27

K262171

FLANGE

- pump

1шт.

28

K262176

SEAL

- oil

1шт.

29

K262180

SEAL

SEAL KIT - pump (Includes item 28)

1шт.

30

K626380

WASHER

- tab, gear, 7/16 inch, tab, coupling nut

1шт.

31

K622386

KEY

- Woddruff, No. 405

1шт.

32

K262178

NUT

- 7/16 inch UNF

1шт.
