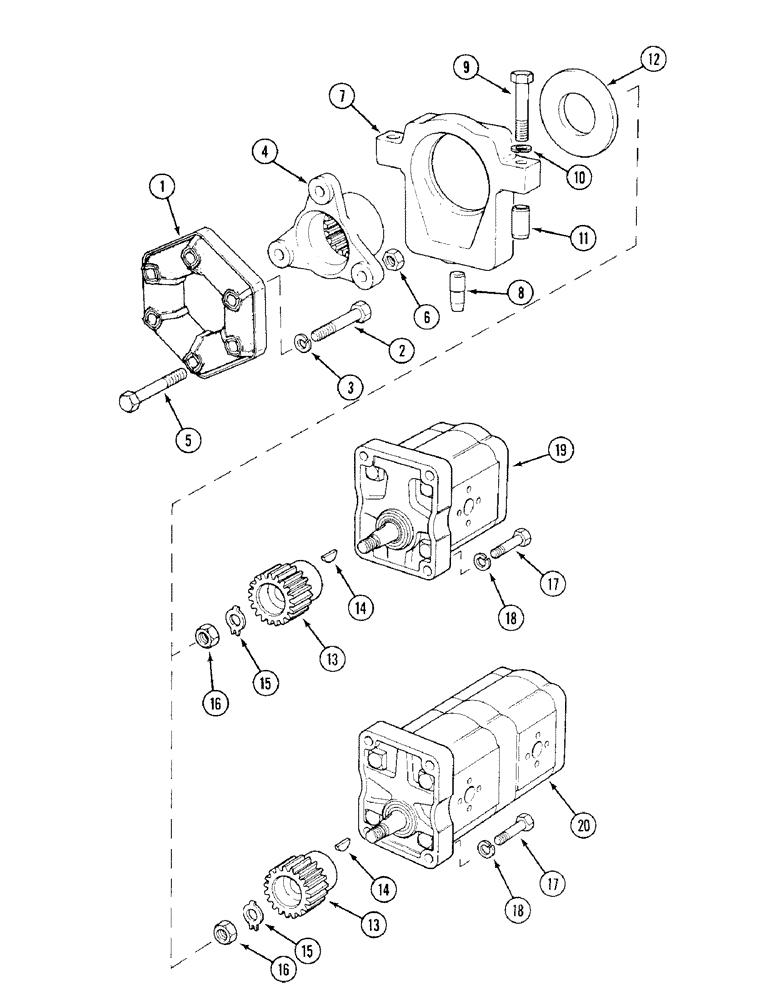

Запчасти Case IH 1394 (8-302) - DRIVE - HYDRAULIC PUMP (08) - HYDRAULICS

1

K955266

FLEXIBLE COUPLING

COUPLING - flexible

1шт.

2

K600531

BOLT

- 3/8 UNC x 2 inch

3шт.

3

492-11038

LOCK WASHER,3/8"

3шт.

4

K200047

COUPLING

COUPLING - pump drive

1шт.

5

K600410

BOLT

- 3/8 UNC x 2-1/4 inch

3шт.

6

232-1416

LOCK NUT,3/8"-16, GC

NUT - 3/8 inch UNC

3шт.

7

K200174

PUMP

BRACKET - support, pump

1шт.

8

K621815

PIN

DOWEL - 1/2 x 1-1/2 inch

1шт.

9

K600408

BOLT,3/8" x 2"

- 3/8 UNC x 2 inch

2шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

K622042

RING

DOWEL - ring

2шт.

12

K200045

DISC

- locating

1шт.

13

K200046

GEAR

SLEEVE - drive, pump

1шт.

14

K622386

KEY

- Woddruf No. 405

1шт.

15

K626380

WASHER

- tab, sleeve nut

1шт.

16

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

17

61-32520

HEX SOC SCREW,1/4"-20 x 1 1/4"

BOLT - 1/4 UNC x 1-1/4 inch

4шт.

18

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

19

K307945

PUMP

ASSEMBLY - hydraulic, single, Sundstrand, See Figure 8-304

1шт.

19

K307945

PUMP

ASSEMBLY - hydraulic, single, Bosch

1шт.

19

K307945

PUMP

ASSEMBLY - hydraulic, single, Dowty

1шт.

20

K916535

PUMP

ASSEMBLY - tandem, Sundstrand, See Figure 8-306

1шт.

20

K916535R

REMAN-HYD PUMP

1394 (1/83-12/87)

1шт.

20

K916535C

CORE-HYDRAULIC PUMP

Return Number

1шт.

20

K954263

PUMP

ASSEMBLY - tandem, Dowty, See Figure 8-308

1шт.
