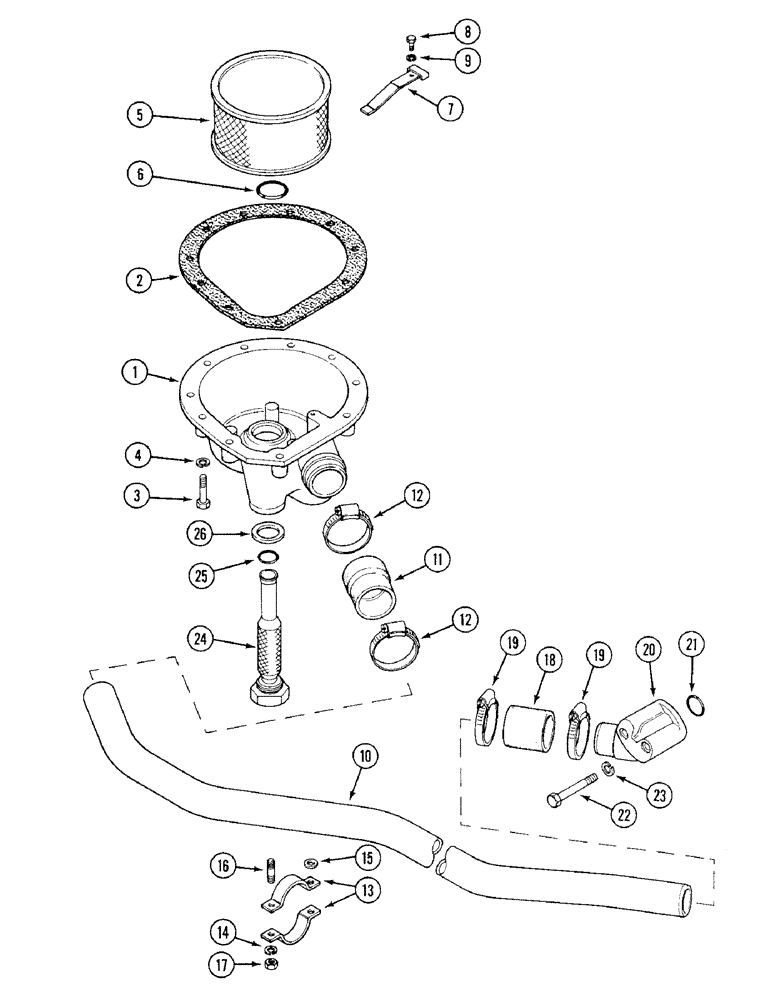

Запчасти Case IH 1394 (8-300) - HYDRAULIC INLET FILTER, POWER SHIFT TRACTOR (08) - HYDRAULICS

1

K205588

HOUSING

- inlet filter

1шт.

2

K940407

GASKET

- housing

1шт.

3

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

10шт.

4

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

8шт.

5

K946089

STRAINER ELEMENT

FILTER - inlet

1шт.

6

238-5220

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1шт.

7

K953845

RETAINER

PLATE - retainer

1шт.

8

K614021

SET SCREW,#10 - 32 x 1/2"

- No. 10 UNF x1/2 inch

1шт.

9

K19488

SPRING WASHER

- lock, 3/16 inch

1шт.

10

K957355

PIPE

TUBE - inlet

1шт.

11

K205590

HOSE,1.69" ID, 2.06" ID x 2.38", SAE J14 Class SC

- Housing to tube 1.69" ID, 2.06" ID x 2.38", SAE J14 Class SC

1шт.

12

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

CLAMP - hose, 2-1/2 inch (64 mm)

1шт.

13

K916897

SHIM

BRACKET - tube

4шт.

14

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

4шт.

15

K626682

WASHER

- 5/16 inch (8 mm)

1шт.

16

K608160

STUD

- 5/16 UNC x 1-3/8 inch

4шт.

17

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

18

K917126

HOSE

- elbow, 1-3/4 x 2-3/8 inch (44 x 60 mm)

1шт.

19

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP - hose, 2-1/4 inch (57 mm)

3шт.

20

K200176

FITTING

ELBOW - pump inlet, except Dowty tandem pump

1шт.

20

K205703

FITTING

ELBOW - pump inlet, Dowty tandem pump only

1шт.

21

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

22

K600217

BOLT

- 5/16 UNC x 3 inch

2шт.

23

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

24

K205927

FILTER

- power shift pump

1шт.

25

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Power shift filter -116, 90 Duro, .737" ID x .103" Thk

1шт.

26

K17457

WASHER

- sealing, 1-1/4 inch (34 mm) ID

1шт.
