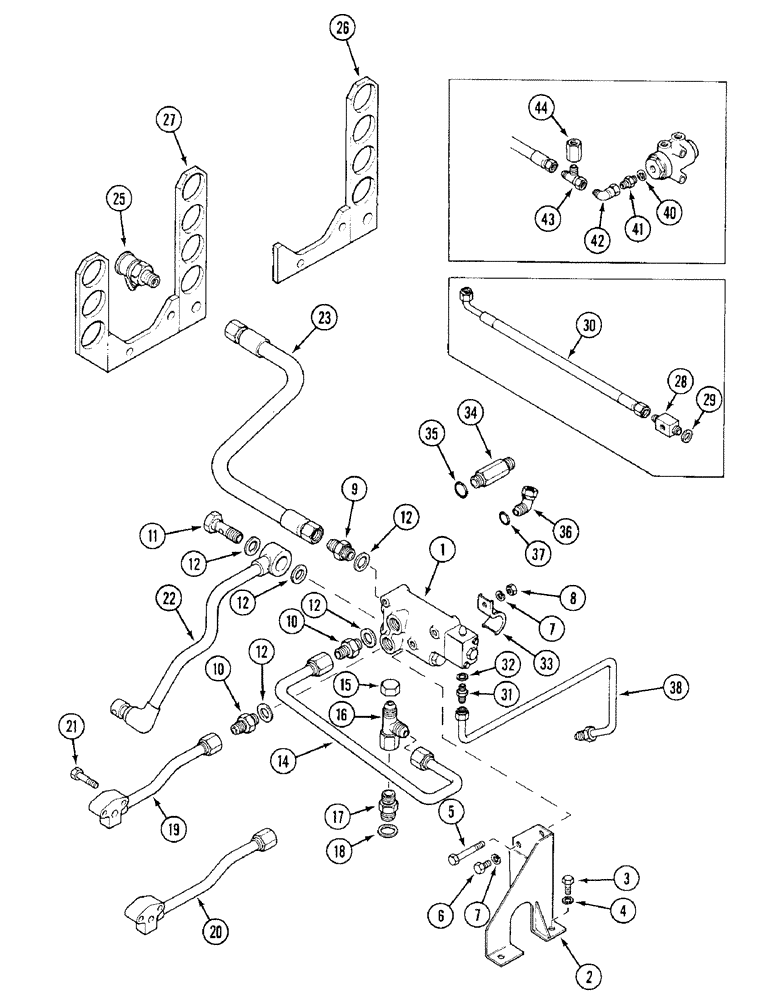

Запчасти Case IH 1394 (7-296) - TRAILER BRAKES - FACTORY INSTALLED (07) - BRAKES

1

K205200

VALVE

ASSEMBLY - brake (Bosch 0538-008-315)

1шт.

2

K310128

BRACKET

- valve support

1шт.

3

K602902

SCREW

BOLT - 3/8 UNC x 3/4 inch

2шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

K650350

BOLT

- M8 x 60 mm

1шт.

6

513-604

BOLT

SCREW - M8 x16 mm

1шт.

7

592-6

WASHER

- lock, 8 mm

2шт.

8

K651507

NUT

- M8

1шт.

9

K626105

FITTING

UNION - M18 x 3/4 inch UNF

1шт.

10

K626106

FITTING

UNION - M18 x 7/8 inch UNF

2шт.

11

K310150

BOLT

- special, M18

1шт.

12

K623530

SEAL

WASHER - sealing, 3/4 inch (19 mm)

4шт.

13

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

14

K310133

PIPE

TUBE -, Serial Range: valve-axle

1шт.

15

K626108

CAP

- 7/8 inch UNF

1шт.

16

K622181

FITTING

TEE FITTING - 7/8 inch UNF

1шт.

17

K626107

FITTING

UNION - 7/8 inch UNF

1шт.

18

K30085

GASKET

WASHER - fiber, 7/8 inch

1шт.

19

K310135

PIPE

TUBE - valve to distribution block (Single pump)

1шт.

20

K310136

PIPE

TUBE - valve to combining valve (Tandem pump)

1шт.

21

K600205

BOLT

- 5/16 UNC x 1-1/2 inch

2шт.

22

K310151

PIPE

TUBE -, Serial Range: filter-valve

1шт.

23

K310134

HOSE

TUBE - flexible, 350 mm

1шт.

25

K205210

COUPLING, BREAK AWAY

COUPLING - quick release, trailer brakes

1шт.

26

K210350

BRACKET

- coupling support (Single valve)

1шт.

27

K210349

BRACKET

- coupling support (Two or more valves)

1шт.

28

K311032

CONNECTOR, ELEC

CONNECTOR - flexible tube (Prior to P.I.N. 11504435)

1шт.

29

F62390

WASHER,10mm ID x 21.01mm OD x 2.08mm Thk

- sealing 10 mm (Prior to P.I.N. 11504435)

1шт.

30

K311033

HOSE

TUBE - flexible,, 7/16 inch UNF x 500 mm(Prior to P.I.N. 11504435)

1шт.

31

K626110

FITTING

UNION - M10 - 7/16 inch UNF

1шт.

32

K626521

SEALING WASHER

WASHER - sealing, 3/8 inch (10 mm)

1шт.

33

K311027

CLIP

CLAMP - hose

1шт.

34

K626109

FITTING

UNION - 3/4 inch UNF (Fits remote valve)

1шт.

35

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Used with K626109

1шт.

36

K622129

FITTING

ELBOW - 3/4 inch UNF, 120 degree (Fits remote valve)

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 inch (19 mm) ID

1шт.

38

K311617

PIPE

TUBE - slave cylinder to brake valve (P.I.N. 11504435 and after)

1шт.

40

F62390

WASHER,10mm ID x 21.01mm OD x 2.08mm Thk

- sealing 10 mm (Prior to P.I.N. 11504378)

1шт.

41

K626110

FITTING

UNION - M10 - 7/16 inch UNF (Prior to P.I.N. 11504378)

1шт.

42

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

- swivel,, 90 degrees (Prior to P.I.N. 11526319)

1шт.

43

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

FITTING - swivel (Prior to P.I.N. 11504378)

1шт.

44

K311535

FITTING

CONNECTOR - to flexible tube and switch (Prior to P.I.N. 11504378)

1шт.
