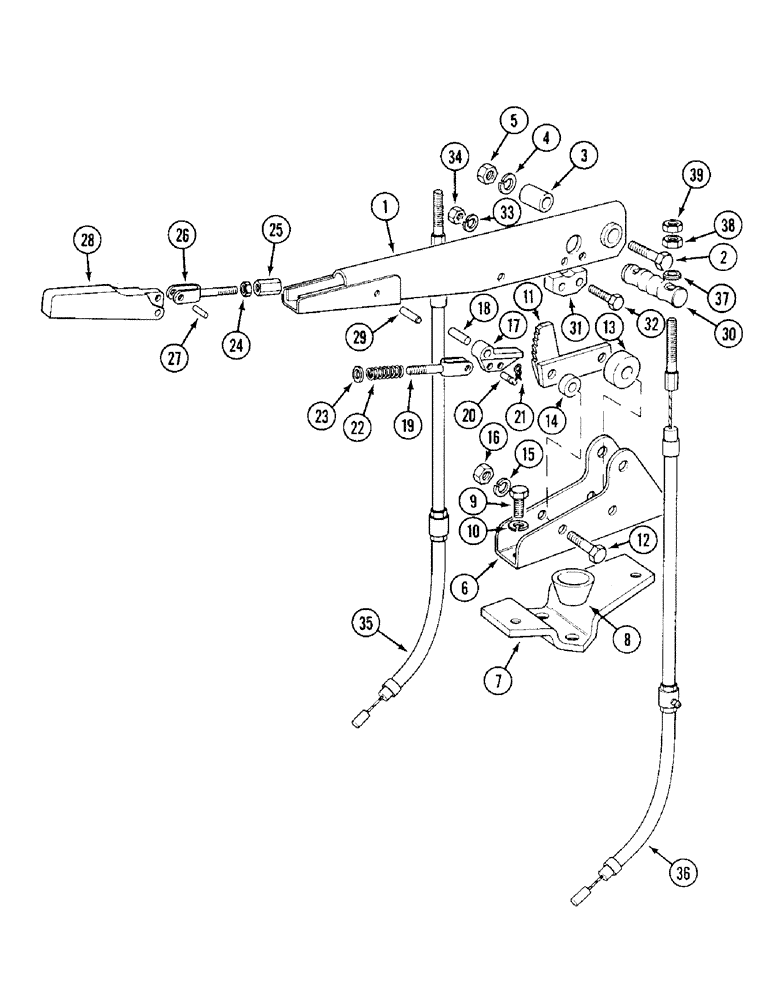

Запчасти Case IH 1394 (7-294) - HAND BRAKE LEVER, TRACTORS WITH CAB (07) - BRAKES

1

K955643

LEVER

- hand

1шт.

2

113-2256

SCREW

BOLT - 3/8 UNC x 1-7/8 inch

1шт.

3

K627052

BUSHING

SPACER - lever pivot

1шт.

4

492-11038

LOCK WASHER,3/8"

1шт.

5

425-106

NUT,3/8"-16, Cl 5

1шт.

6

K955244

BRACKET

- hand lever support

1шт.

7

K949506

SHIM

PLATE - retaining

1шт.

8

K949507

SEAL

- rubber

2шт.

9

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

BOLT - 5/16 UNC x 3/4 inch

2шт.

10

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

11

K307481

RATCHET

2шт.

12

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

2шт.

13

K627109

BUSHING

SPACER - 1-3/8 inch (35 mm)

1шт.

14

K627110

BUSHING

SPACER - 3/4 inch (19 mm)

1шт.

15

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

16

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

17

K307484

PAWL

1шт.

18

138-132

LOCK PIN,1/4" x 7/8", Slotted

PIN, 1/4" x 7/8", Slotted

1шт.

19

K950033

ROD

- pull

1шт.

20

K949499

PIN

- grooved 3/16 x 1/2 inch

1шт.

21

K621572

RING, SNAP

CLIP - spring

1шт.

22

K625099

SPRING

1шт.

23

K626310

WASHER

- lock 3/16 inch, 3/16 inch (5 mm)

1шт.

24

225-14210

NUT,#10-32

2шт.

25

K617297

NUT

SLEEVE - adjusting, No., 10 UNF

1шт.

26

K950033

ROD

- pull

1шт.

27

K949498

PIN

- plain, 3/16 x 1/2 inch

1шт.

28

K950026

LEVER

- release

1шт.

29

138-2067

PIN,3/16" x 1", Coiled

1шт.

30

K949501

BAR

- balance

1шт.

31

K949502

SUPPORT

BLOCK - support

1шт.

32

K966404

SCREW

BOLT - 1/4 UNC x1-1/8 inch

2шт.

33

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

34

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

35

K311167

CABLE

- inner and outer, right-hand

1шт.

36

K311168

CABLE

- inner and outer, left-hand

1шт.

37

K949503

WASHER

- spherical, 5/16 inch

2шт.

38

K617285

SPECIAL NUT

- 5/16 inch UNF

2шт.

39

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF

2шт.
