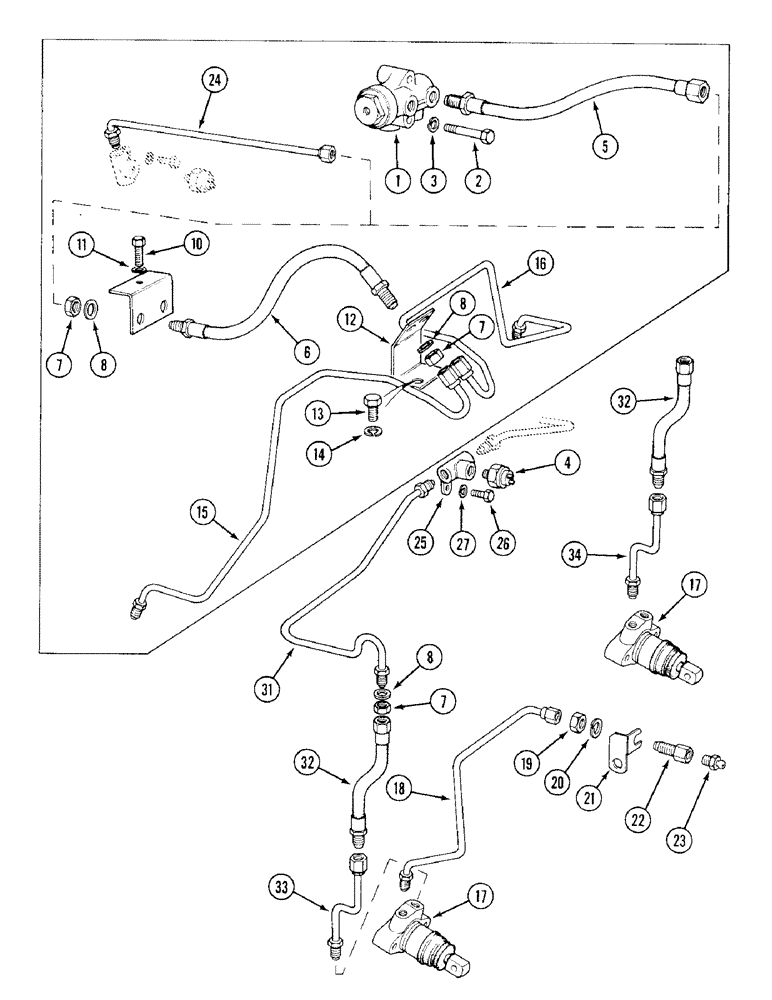

Запчасти Case IH 1394 (7-288) - BRAKE TUBES AND SLAVE CYLINDERS, TRACTORS WITH CAB (07) - BRAKES

1

K957107

VALVE

- brake balance (Prior to P.I.N. 11504378)

1шт.

2

K650635

BOLT

- M6 x 55 mm (Prior to P.I.N. 11504378)

2шт.

3

892-11006

LOCK WASHER,M6

WASHER, LOCK, (Prior to P.I.N. 11504378) M6

2шт.

4

K951976

LIGHT SWITCH

SWITCH - stop lamps

1шт.

5

K305952

BRAKE

TUBE - balance valve to flexible (Prior to P.I.N. 11504378)

2шт.

6

K310215

HOSE

TUBE - flexible, 350 mm (Replaces K306308) (Prior to P.I.N. 11504435)

2шт.

7

K652100

LOCK NUT

- lock, M12

2шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

9

K305953

BRACKET

- flexible tube (Prior to P.I.N. 11504435)

1шт.

10

K650628

BOLT

- M6 x 20 mm(Prior to P.I.N. 11504435)

1шт.

11

892-11006

LOCK WASHER,M6

WASHER, LOCK, (Prior to P.I.N. 11504435) M6

1шт.

12

K310214

BRACKET

- tube (Replaces K951919)

1шт.

13

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

14

492-11038

LOCK WASHER,3/8"

1шт.

15

K203294

PIPE

TUBE - slave cylinder, left-hand (Prior to P.I.N. 11504435)

1шт.

16

K203293

PIPE

TUBE - slave cylinder, right-hand (Prior to P.I.N. 11504435)

1шт.

17

K203416

BRAKE

CYLINDER - slave

2шт.

18

K302469

PIPE

TUBE - air removal, left-hand (Without Trailer Brakes)

1шт.

18

K302470

PIPE

TUBE - air removal, right-hand

1шт.

19

K652100

LOCK NUT

- lock M12

2шт.

20

K651850

SPRING

WASHER - lock, 12 mm

2шт.

21

K204331

BRACKET

- left-hand tube, left-hand tube

1шт.

21

K204332

BRACKET

- right-hand tube, right-hand tube

1шт.

22

K302501

ADAPTER

ADAPTOR - M12

2шт.

23

K964534

SCREW,M12 x 1

- air removal, M12

2шт.

24

K310504

PIPE

TUBE - three- way fitting to flexible (P.I.N. 11504378 to P.I.N. 11504435)

1шт.

25

K310498

FITTING

- three-way (P.I.N. 11504378 and after)

1шт.

26

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

(P.I.N. 11504378 and after) Hex, M6 x 16, 8.8

1шт.

27

892-11006

LOCK WASHER,M6

WASHER, LOCK, (P.I.N. 11504378 and after) M6

1шт.

31

K311620

PIPE

TUBE - three-way fitting to flexible (P.I.N 11504435 and after)

1шт.

32

K311624

HOSE

TUBE - flexible, 240 mm (P.I.N. 11504435 and after)

2шт.

33

K311627

PIPE

TUBE - slave cylinder to hose, left-hand (P.I.N. 11504435 and after)

1шт.

34

K311626

PIPE

TUBE - slave cylinder to hose, right-hand (P.I.N. 11504435 and after)

1шт.
