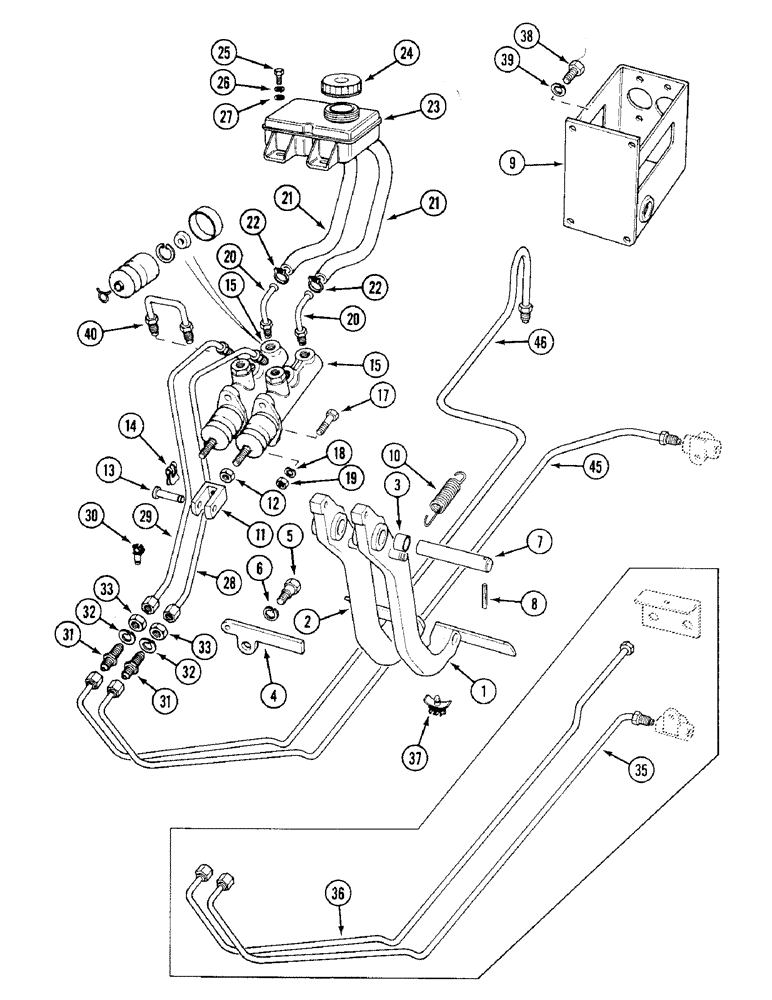

Запчасти Case IH 1394 (7-286) - BRAKE PEDALS AND MASTER CYLINDERS, TRACTORS WITH CAB P.I.N. 11504378 AND AFTER (07) - BRAKES

1

K307854

PEDAL

- brake, left-hand, Includes: Ref. 3

1шт.

2

K307855

PEDAL

- brake, right-hand, Includes: Ref. 3

1шт.

3

K655525

BUSHING

- pedal

2шт.

4

K948974

LATCH

PLATE - locating, pedals

1шт.

5

K600500

SCREW

BOLT - special

1шт.

6

K626700

WASHER

- lock

1шт.

7

K303546

SHAFT

PIN - pivot

1шт.

8

K690706

PIN

-groove, 6 x 30 mm

1шт.

9

K303941

BRACKET

- peda

1шт.

10

K303540

SPRING

- return

2шт.

11

K622212

FORK

END - 5/16 inch UNC

2шт.

12

425-115

NUT,5/16"-24, G5

- 5/16 inch UNC

2шт.

13

K625930

PIN

- clevis, 5/16 x 1-3/16 inch

2шт.

14

K625040

CLIP

- spring

2шт.

15

K307032

CYLINDER,36mm Stroke

MASTER CYLINDER - (Girling A73067120), Includes: Ref. 16

2шт.

16

K262205

SEAL KIT

KIT - seals, mineral oil

1шт.

17

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

4шт.

18

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

19

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

20

K302099

PIPE

TUBE - master cylinder inlet

2шт.

21

K203032

HOSE

- reservoir to master cylinder

2шт.

22

L100659

CLIP

- self adhesive, hose

2шт.

23

K301441

RESERVOIR

1шт.

24

K301443

CAP

- filler

1шт.

25

K652474

BOLT

- M6 x 12 mm

2шт.

26

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

27

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

28

K310501

PIPE,6 mm DIA.

TUBE - left-hand, master cylinder to union

1шт.

29

K310500

PIPE,6 mm DIA.

TUBE - right-hand, master cylinder to union

1шт.

30

K625008

CLIP

- tube

2шт.

31

K301280

FITTING

UNION - connecting,M12

2шт.

32

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

33

K652100

LOCK NUT

- M12

2шт.

35

K310502

PIPE

TUBE - union to three way fiting, left-hand (Prior to P.I.N. 11504435)

1шт.

36

K310503

PIPE

TUBE - union to flexible, right-hand (Prior to P.I.N. 11504435)

1шт.

37

K625024

CLIP

- brake tube

2шт.

38

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

4шт.

39

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

40

K310499

PIPE

TUBE - master cylinders

1шт.

45

K311622

PIPE

TUBE - union to three-way fitting left-hand (P.I.N. 11504435 and after)

1шт.

46

K311621

PIPE

TUBE - union to flexible right-hand (P.I.N. 11504435 and after)

1шт.
