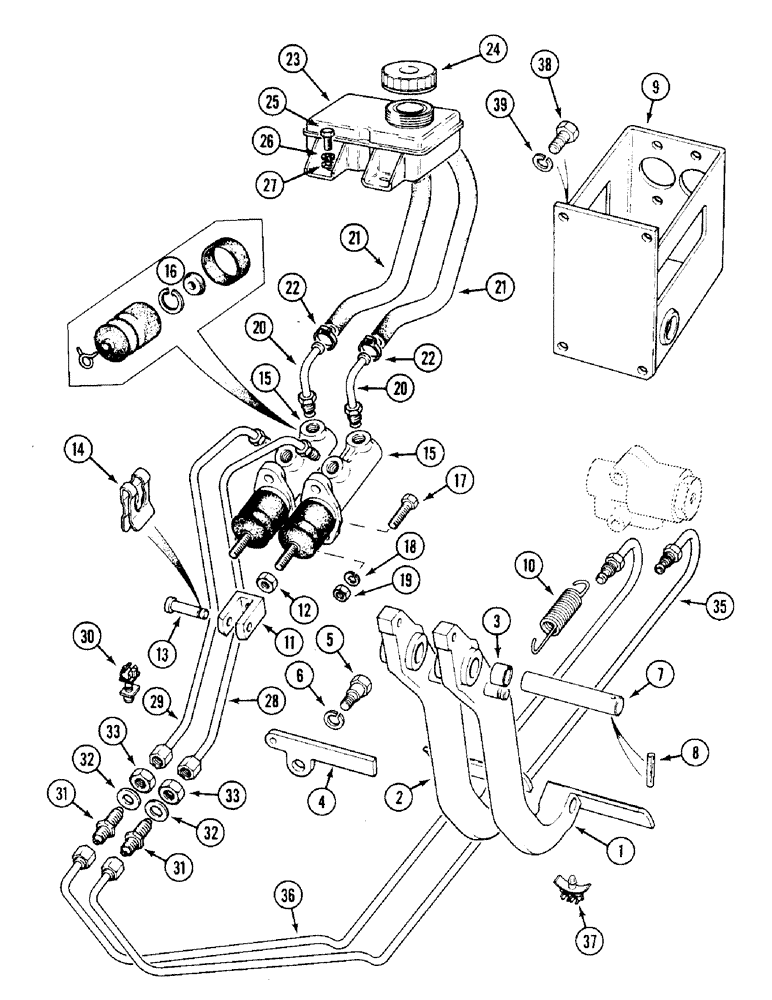

Запчасти Case IH 1394 (7-284) - BRAKE PEDALS AND MASTER CYLINDERS, TRACTORS WITH CAB PRIOR TO P.I.N. 11504378 (07) - BRAKES

1

K307854

PEDAL

- brake, left-hand, Includes: Ref. 3

1шт.

2

K307855

PEDAL

- brake, right-hand, Includes: Ref. 3

1шт.

3

K655525

BUSHING

- pedal

2шт.

4

K948974

LATCH

PLATE - locating, pedals

1шт.

5

K600500

SCREW

BOLT - special

1шт.

6

K626700

WASHER

- lock

1шт.

7

K303546

SHAFT

PIN - pivot

1шт.

8

K690706

PIN

- groove, 6 x 30 mm

1шт.

9

K303164

MOUNTING PARTS

BRACKET - pedal

1шт.

10

K303540

SPRING

- return

2шт.

11

K622212

FORK

END - 5/16 inch UNF

2шт.

12

425-115

NUT,5/16"-24, G5

- 5/16 inch UNC

2шт.

13

K625930

PIN

- levis, 5/16 x 1-3/16 inch

2шт.

14

K625040

CLIP

- spring

2шт.

15

K950544

CYLINDER,36.32mm Stroke

ASSEMBLY - master (Mineral oil) (Girling 73067017), Includes: Ref 16

2шт.

16

K964572

SEAL KIT

SEAL KIT - master cylinder, seals, mineral oil

1шт.

17

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- hex, 5/16 NC x 1-1/8 inch

4шт.

18

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

4шт.

19

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

20

K302099

PIPE

TUBE - master cylinder inlet

2шт.

21

K203032

HOSE

- reservoir to master cylinder

2шт.

22

L100659

CLIP

- self adhesive, hose

2шт.

23

K301441

RESERVOIR

1шт.

24

K301443

CAP

- filler

1шт.

25

K652474

BOLT

- M6 x 12 mm

2шт.

26

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

27

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

28

K301270

PIPE

TUBE - left-hand, master, Serial Range: cylinder-union

1шт.

29

K301269

PIPE

TUBE - right-hand, master, Serial Range: cylinder-union

1шт.

30

K625008

CLIP

- tube

2шт.

31

K301280

FITTING

UNION - connecting, M12

2шт.

32

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

33

K652100

LOCK NUT

- lock, M12

2шт.

35

K308225

PIPE,6 mm DIA.

TUBE - union to balance valve, left-hand

1шт.

36

K308226

PIPE,6 mm DIA.

TUBE - union to balance valve, right-hand

1шт.

37

K625024

CLIP

- brake tube

2шт.

38

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

4шт.

39

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.
