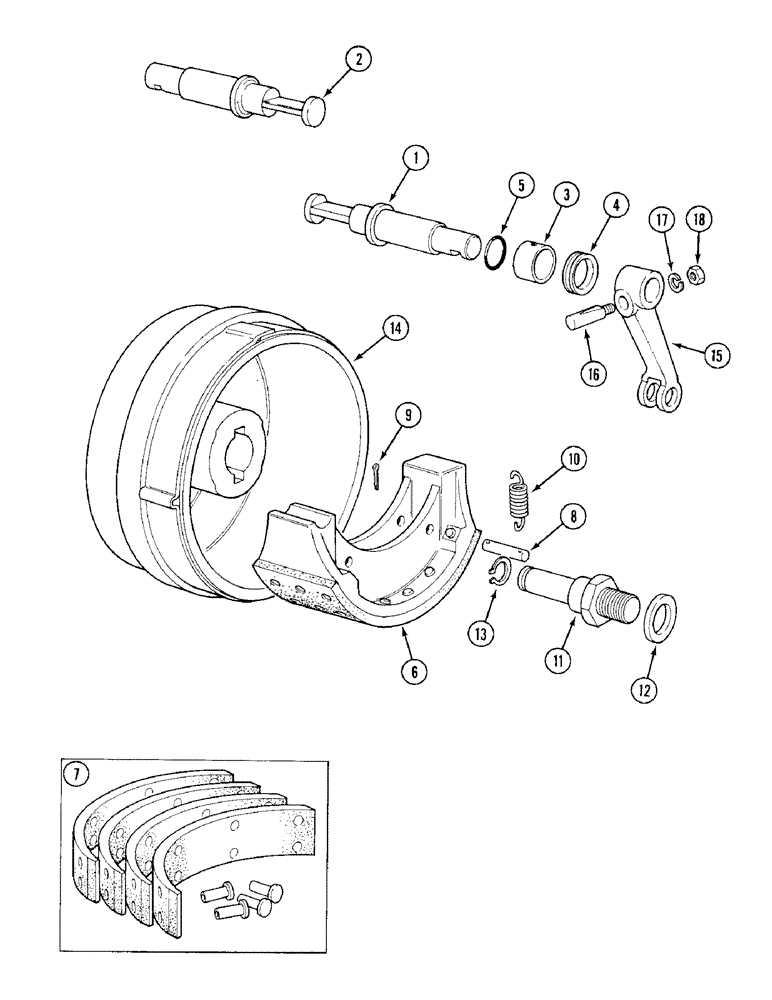

Запчасти Case IH 1394 (7-282) - BRAKE SHOES AND DRUMS, TRACTORS WITHOUT CAB (07) - BRAKES

1

K954714

BRAKE

CAMSHAFT - brake, left-hand

1шт.

2

K954715

BRAKE

CAMSHAFT - brake, right-hand

1шт.

3

K621406

BUSHING

- axle housing

4шт.

4

K204285

SEAL

- dirt

2шт.

5

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

2шт.

6

K920442

SHOE

ASSEMBLY - brake, Includes: Ref. 7

4шт.

7

K262705

KIT

LINING - brake (4) and rivets

1шт.

8

K920446

PIN

- spring anchor

8шт.

9

K11933

PIN

- cotter, 1/8 x 5/8 inch

16шт.

10

K624930

SPRING

- brake shoes

4шт.

11

K954710

PIN

- fulcrum

2шт.

12

K19497

WASHER

- 7/8 inch (22 mm)

2шт.

13

K34454

RING, SNAP

RING - snap, 7/8 inch (22 mm) external

2шт.

14

K921829

BRAKE DRUM

DRUM - brake

2шт.

15

K928589

LEVER

- brake camshaft

2шт.

16

K609425

LARGE PIN

PIN - lock, 3/8 inch UNC

2шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

280136

NUT,3/8"-16, G8

2шт.
