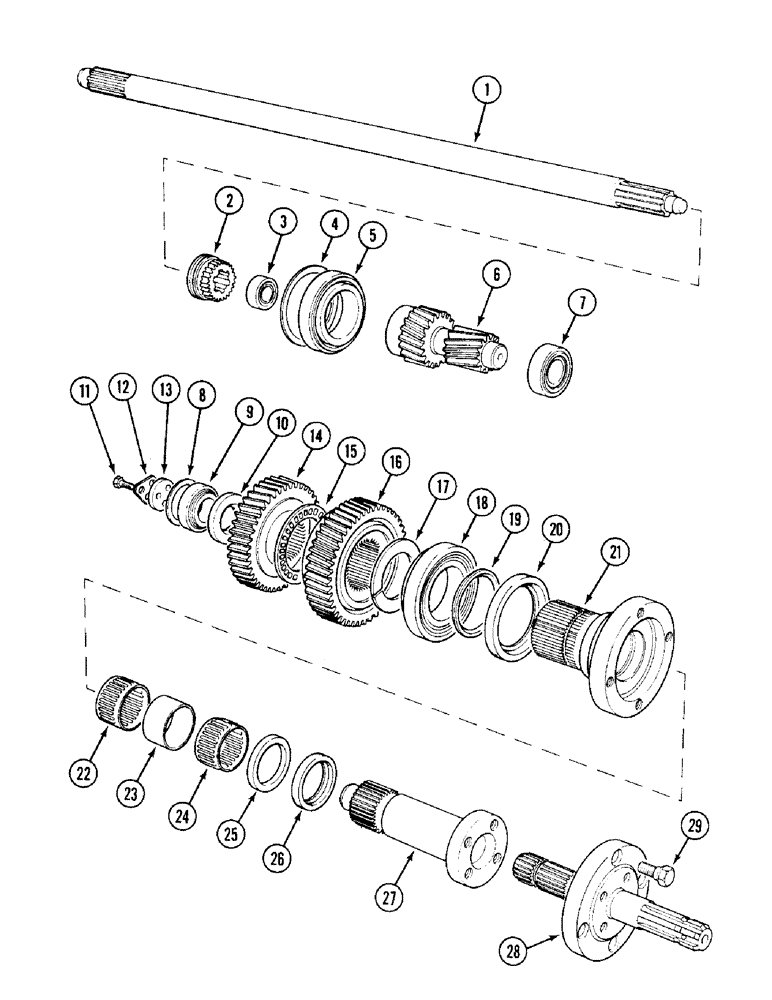

Запчасти Case IH 1394 (6-276) - REVERSIBLE SHAFT PTO, SHAFTS AND GEARS (06) - POWER TRAIN

1

K956320

SHAFT

- cardan, PTO drive

1шт.

2

K946388

GEAR

- sliding, dog clutch

1шт.

3

A43356?

BEARING - ball

1шт.

4

K627406

SHIM,.003" Thk

(0.07 mm) .003" Thk

1шт.

4

K627407

SHIM,.005" Thk

(0.12 mm) .005" Thk

1шт.

4

K627408

SHIM,.007" Thk

(0.18 mm) .007" Thk

1шт.

4

K627409

SHIM,.010" Thk

(0.25 mm) .010" Thk

1шт.

5

NSS

NOT SOLD SEPARAT

KIT - rolle, Order 40392 & 40393r

1шт.

6

K948384

GEAR

SHAFT - input, 21/13 teeth

1шт.

7

NSS

NOT SOLD SEPARAT

KIT - roller, Order 618023R91 & 618024R1

1шт.

8

K88921

SHIM,.003" Thk

(0.07 mm) .003" Thk

1шт.

8

K88922

SHIM,.005" Thk

(0.12 mm) .005" Thk

1шт.

8

K88923

SHIM,.007" Thk

(0.18 mm) .007" Thk

1шт.

8

K88924

SHIM,.010" Thk

(0.25 mm) .010" Thk

1шт.

9

NSS

NOT SOLD SEPARAT

KIT - roller, Order 618023R91 & 618024R1

1шт.

10

K948389

WASHER

- special

1шт.

11

K602803

BOLT

- 5/16 UNC x 3/4 inch

3шт.

12

K626430

WASHER

- tab, retainer bolt

1шт.

13

K948390

BEARING

RETAINER - bearing

1шт.

14

K948386

GEAR

- driven, high speed (43 teeth)

1шт.

15

K620147

THRUST BEARING

BEARING - thrust, needle

1шт.

16

K948385

GEAR

- driven, low speed (50 teeth)

1шт.

17

K948392

RING

- split, halves

2шт.

18

K620145

TAPERED BEARING,75mm ID x 130mm OD x 33.25mm W

- taper roller

1шт.

20

K623452

SEAL,90mm ID x 110.28mm OD x 11.99mm Thk

- oil, inner, 90 x 110 x 12 mm

1шт.

21

K948387

SHAFT

- output, low speed

1шт.

22

K620146

NEEDLE BEARING

BEARING - needle roller

1шт.

23

K948394

BUSHING

SPACER - bearing

1шт.

24

K620146

NEEDLE BEARING

BEARING - needle rollerr

1шт.

25

K948395

PLATE

- abutment

1шт.

26

K623464

OIL SEAL

- oil, 55 x 70 x 8 mm

1шт.

27

K948388

SHAFT

- output, high speed

1шт.

28

K948393

SHAFT

PTO SHAFT - reversible, 6/21 splindes

1шт.

29

K948397

BOLT

BOLT - 1/2 inch, UNF, special

4шт.
