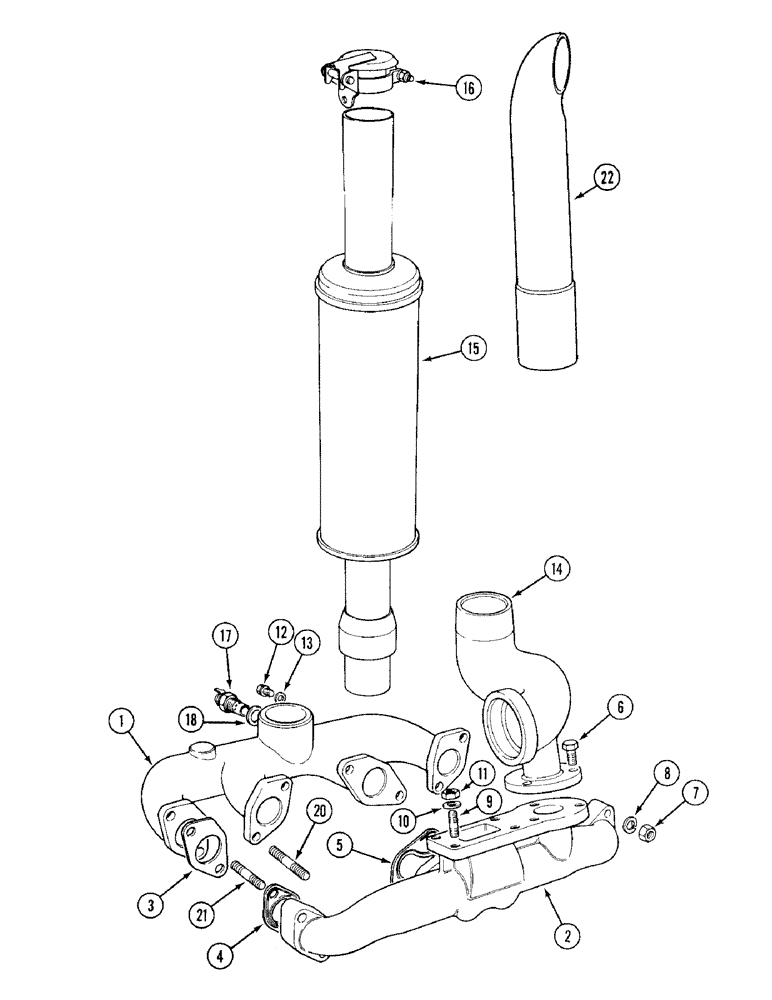

Запчасти Case IH 1394 (2-08) - MANIFOLDS AND MUFFLER (02) - ENGINE

1

K923244

MANIFOLD

- intake

1шт.

2

K929728

MANIFOLD

- exhaust

1шт.

3

K921730

MANIFOLD GASKET

- intake manifold

4шт.

4

K907344

MANIFOLD GASKET

- exhaust manifold

2шт.

5

K907343

GASKET

- exhaust manifold

1шт.

6

K602936

SCREW,3/8" - 16 x 1 1/2", Gr S

BOLT - hex, 3/8 NC x 1-1/4 inch

3шт.

7

425-106

NUT,3/8"-16, Cl 5

15шт.

8

K19472

WASHER

- flat, 3/8 inch (10 mm)

3шт.

9

K608201

STUD

- 3/8 UNC x 1-5/8 inch

4шт.

10

K19472

WASHER

- flat, 3/8 inch (10 mm)

4шт.

11

425-106

NUT,3/8"-16, Cl 5

4шт.

12

K609691

PLUG

- 1/8 inch BSP (Replaces K19591)

1шт.

13

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

- sealing

1шт.

14

K207415

FLANGE

- exhaust

1шт.

15

K306484

MUFFLER

-

1шт.

16

A7479

CAP

Rain Cap

1шт.

17

K928523

GLOW PLUG

THERMOSTART - fuel (CAV 1854102)

1шт.

18

K626957

WASHER

- sealing 7/8 inch (22 mm)

1шт.

20

K608203

STUD

- inlet manifold, 3/8 NC x 1-7/16 inch

4шт.

20

K608237

STUD

- inlet manifold, 3/8 UNC x 1-3/4 inch

2шт.

20

K608214

STUD

- inlet and exhaust manifold, 3/8 UNC x 2 inch

2шт.

21

K608242

STUD

- exhaust manifold, 3/8 UNC x 2-3/4 inch

2шт.

21

K608209

STUD

- exhaust manifold, 3/8 UNC x 2-1/4 inch

2шт.

21

K608216

STUD

- exhaust manifold, 3/8 UNC x 1-3/8 inch

1шт.

21

K608237

STUD

- inlet manifold, 3/8 UNC x 1-3/4 inch

2шт.

22

A169156

EXTENSION

- muffler, R.O.P.S.

1шт.
