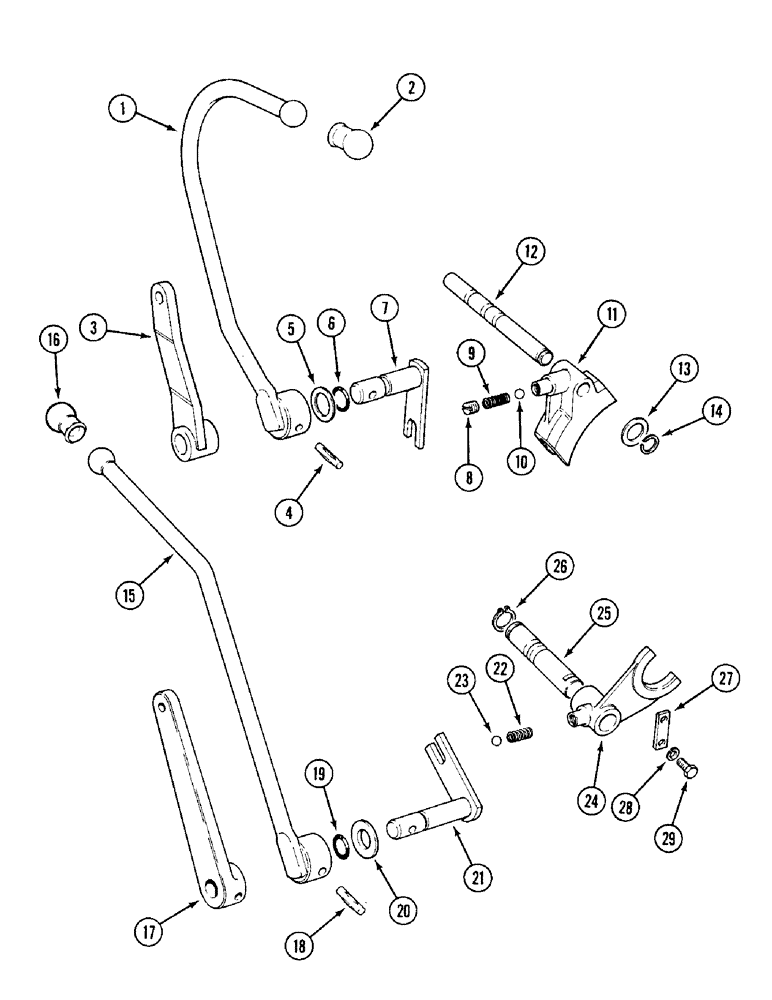

Запчасти Case IH 1394 (6-272) - POWER TAKE-OFF CONTROLS, MULTI-SPEED PTO (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
K201931
LEVER
- hand(Without cab)
1шт.
2
K307985
COVER
- hand lever
1шт.
3
K207959
LEVER
- operating (With cab) (Replaces K202544)
1шт.
4
38-31624
ROLL PIN,1/4" x 1 1/2", Coiled
PIN, ROLL, 1/4" x 1 1/2", Coiled
1шт.
5
K15499
WASHER
- special
3шт.
6
K625405
O-RING,0.549" ID x 0.103" Width
- 9/16 inch (14 mm) ID
1шт.
7
K915569
SELECTOR
SHAFT - lever, selector
1шт.
8
81-3315
SET SCREW,5/16"-18 x 5/16", Slotted
SCREW - 5/16 inch
1шт.
9
K24831
SPRING
- detent
1шт.
10
211-1008
BALL,1/4" Dia
- steel, 1/4 inch (6 mm) OD
1шт.
11
K915568
SELECTOR
FORK - selector
1шт.
12
K915567
SELECTOR
ROD - selector
1шт.
13
K626890
WASHER
- special, selector rod
1шт.
14
K621470
RING, SNAP
RING - snap, 3/4 inch (19 mm) External
1шт.
15
K202487
LEVER
- hand(Without cab), reversible shaft PTO
1шт.
16
K307985
COVER
- hand lever, reversible shaft PTO
1шт.
17
K951272
LEVER
- operating (With cab), reversible shaft PTO
1шт.
18
38-31624
ROLL PIN,1/4" x 1 1/2", Coiled
PIN, ROLL, , Reversible shaft PTO 1/4" x 1 1/2", Coiled
1шт.
19
K625405
O-RING,0.549" ID x 0.103" Width
- 9/16 inch (14 mm) ID, reversible shaft PTO
1шт.
20
K19476
WASHER
- 1/8 inch (3 mm) Thick, reversible shaft PTO
1шт.
20
K627461
WASHER
- 1/16 inch (2 mm) Thick, reversible shaft PTO
1шт.
21
K948401
SELECTOR
SHAFT - lever, selector, reversible shaft PTO
1шт.
22
K24831
SPRING
- detent, reversible shaft PTO
1шт.
23
211-1008
BALL,1/4" Dia
- steel, 1/4 inch (6 mm) OD, reversible shaft PTO
1шт.
24
K948398
SHIFTER FORK
FORK - selector, reversible shaft PTO
1шт.
25
K948399
SELECTOR
ROD - selector, reversible shaft PTO
1шт.
26
K11290
RING, SNAP
RING - snap, 3/4 inch (19 mm) External, reversible shaft PTO
1шт.
27
K948400
PLATE
- retaining, reversible shaft PTO
1шт.
28
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, , Reversible shaft PTO 1/4"
2шт.
29
K602702
SCREW
BOLT - 1/4 UNC x 5/8 inch, reversible shaft PTO
2шт.
Выбрано товаров: 30
