(6-264) - RELEASE LEVER FOR PTO CLUTCH, TRACTORS WITH CAB

Запчасти Case IH 1394 (6-264) - RELEASE LEVER FOR PTO CLUTCH, TRACTORS WITH CAB (06) - POWER TRAIN

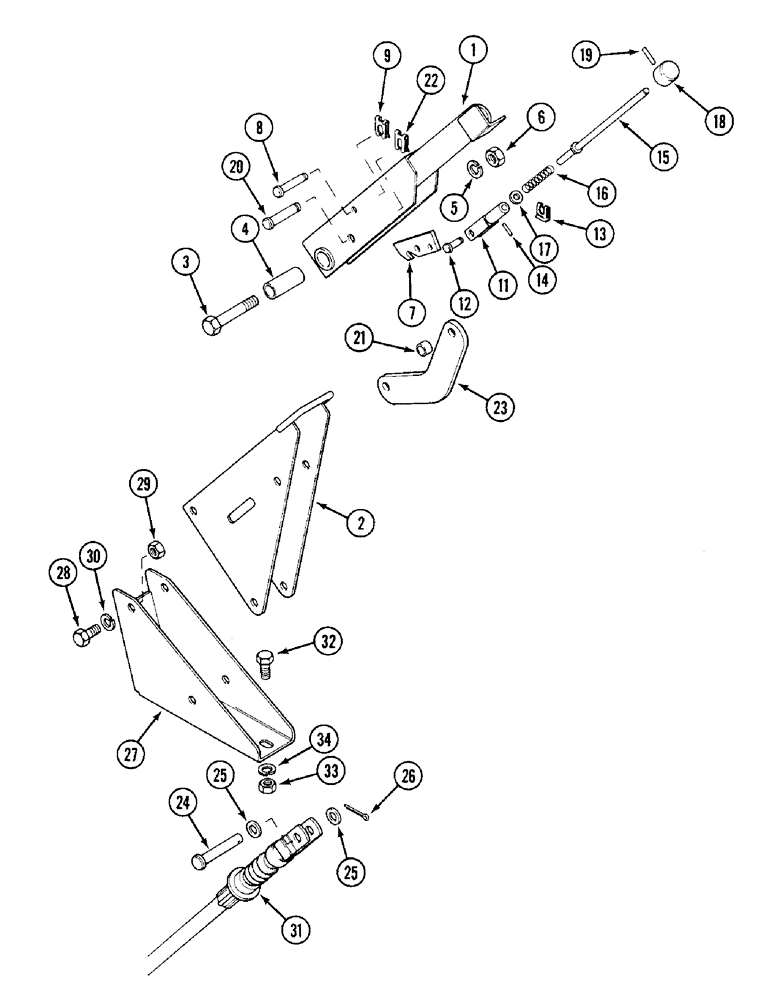

Схема запчастей Case IH 1394 - (6-264) - RELEASE LEVER FOR PTO CLUTCH, TRACTORS WITH CAB (06) - POWER TRAIN
14
21
30
3
27
13
16
26
25
11
5
32
28
29
4
23
6
19
7
18
17
1
2
8
33
24
20
34
25
9
31
15
22
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

K307090

HANDLE

LEVER - hand

1шт.

2

K307095

BRACKET

- hand lever

1шт.

3

K650655

BOLT - M10 x 50 mm

1шт.

4

K655731

BUSHING

SPACER - pivot

1шт.

5

892-11010

LOCK WASHER,M10

1шт.

6

K651554

NUT

- M10

1шт.

7

K307099

LATCH

- hand lever

1шт.

8

K658511

PIN

- latch pivot

1шт.

9

K659104

CLIP

- latch pin

1шт.

11

K659017

FORK

- release rod

1шт.

12

K658611

PIN

- fork

1шт.

13

K659103

CLIP

- fork pin

1шт.

14

K657400

PIN

- roll

1шт.

15

K307101

ROD

- latch release

1шт.

16

K658021

SPRING

- latch rod

1шт.

17

K651776

WASHER

- 5 mm

1шт.

18

K307100

BUTTON

- latch release

1шт.

19

K657402

PIN

- roll

1шт.

20

K658525

LINK

PIN - link

1шт.

21

K655718

BUSHING

SPACER - link pin

2шт.

22

K659105

CLIP

- link pin

1шт.

23

K307325

LINK

-, Serial Range: cable-lever

1шт.

24

K658524

PIN

- cable

1шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

26

K652196

PIN

- cotter

1шт.

27

K307096

BRACKET

- lever mounting

1шт.

28

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

4шт.

29

825-1408

NUT,M8, Cl 8

4шт.

30

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

31

K310598

CABLE

- inner and outer, 82.87 inch

1шт.

32

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

33

825-1408

NUT,M8, Cl 8

2шт.

34

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.
