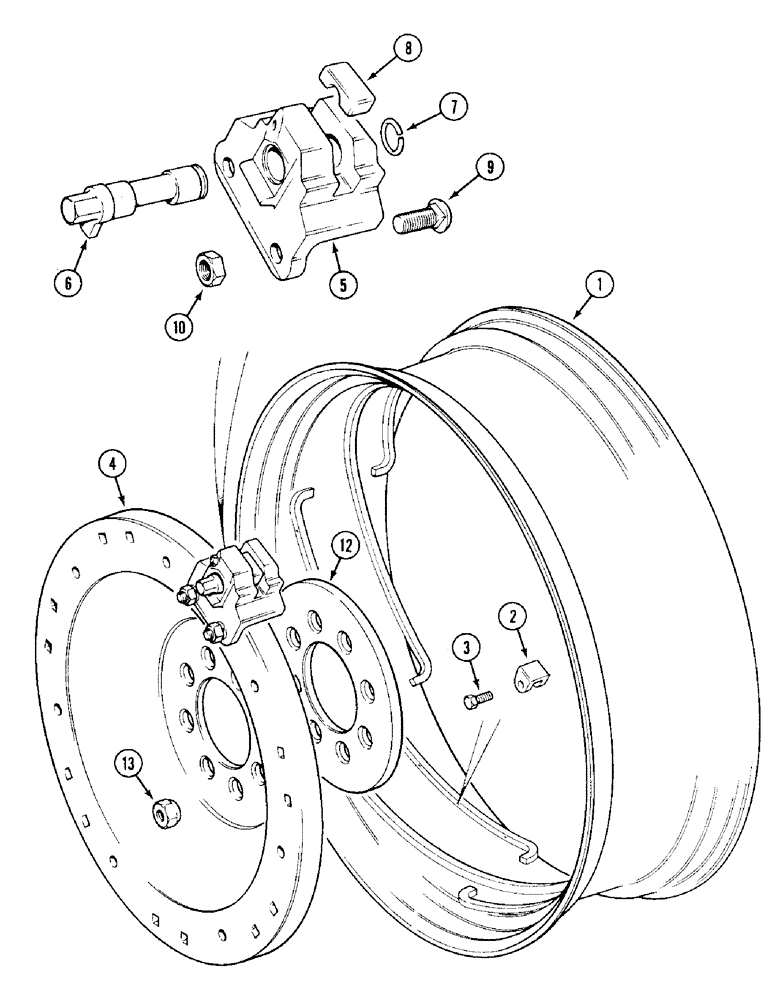

Запчасти Case IH 1394 (6-262) - POWER ADJUSTED REAR WHEELS (06) - POWER TRAIN

REF

INSTRUCTION

RIM ASSEMBLY - rear, fits 14-30 tires, Includes: Ref. 1 - 8

2шт.

1

K302516

RIM

- rear W14 x 30, W14 x 30

1шт.

2

K917337

STOP

BRACKET - stop, wheel rim

2шт.

3

K200142

SCREW,Hex, 9/16" x 2 1/8"

BOLT - stop bracket

2шт.

4

K302515

WHEEL

- center, rear

1шт.

5

K917340

SUPPORT

CLAMP - wheel

5шт.

6

K200128

PIN

- electronic

5шт.

7

K917341

RING

- snap

5шт.

8

K917342

BLOCK

- clamp

5шт.

9

K304694

CARRIAGE BOLT

- shoulder, M16

10шт.

10

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10

10шт.

A147232

RIM

ASSEMBLY - rear, fits, 15.5 x 38 tires, rear, Includes: Ref. 1 - 11

2шт.

1

A45192

WHEEL

RIM - rear, W14L x 38

1шт.

2

A41740

STOP

BRACKET - stop, wheel rim

2шт.

3

K200142

SCREW,Hex, 9/16" x 2 1/8"

BOLT - stop bracket, 9/16 inch UNC

2шт.

4

A147234

DISC

WHEEL - center, rear

1шт.

K918809?

CLAMP AND PIN ASSEMBLY, Includes: Ref. 5 - 7

6шт.

5

NSS

NOT SOLD SEPARAT

CLAMP - wheel

1шт.

6

NSS

NOT SOLD SEPARAT

PIN - eccentric

1шт.

7

NSS

NOT SOLD SEPARAT

RING - snap, eccentric pin

1шт.

8

A41741

BLOCK

- clamp

6шт.

9

111-614

CARRIAGE BOLT,Short NK, 5/8"-11 x 1 5/8", G5

BOLT - 5/8 UNC x 1-5/8 inch

12шт.

10

425-1010

NUT,5/8"-11, G5

12шт.

11

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

13

K617168

WHEEL NUT

- wheel (Replaces K617176)

16шт.
