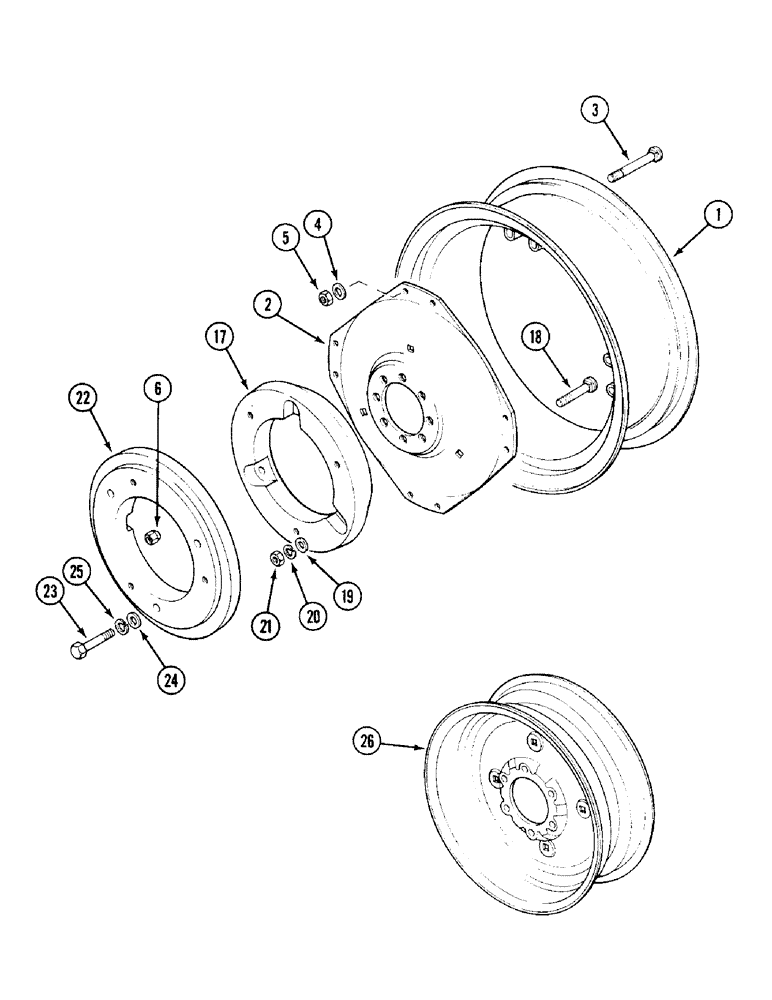

Запчасти Case IH 1394 (6-260) - REAR WHEELS AND BALLAST WEIGHTS (06) - POWER TRAIN

NSS

NOT SOLD SEPARAT

RIM ASSEMBLY - rear, fits 16.9/14-34 tires, Includes: Ref. 1 - 5

2шт.

1

1332736C1

RIM

.- rear wheel, with lugs, DW14 x 30

1шт.

2

K330217

WHEEL

- center, rear

1шт.

3

K310777

WHEEL BOLT,M16 x 2 x 79mm, Gr 8.8

BOLT - rim, M16 x 78 mm

8шт.

4

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

8шт.

5

825-1416

NUT,M16, Cl 8

8шт.

NSS

NOT SOLD SEPARAT

RIM ASSEMBLY - rear, fits 16.9/14-34 tires, Includes: Ref. 1 - 5

2шт.

1

K306351

RIM

- wheel, rear, DW, 14 x 34

1шт.

2

K306356

DISC, WHEEL

WHEEL - center, rear, center, rear

1шт.

3

1333029C1

BOLT,Coach, M16 x 120mm, Gr 8.8

BOLT - coach, 16 x 120 mm grade 8.8, rim

8шт.

4

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

8шт.

5

825-1416

NUT,M16, Cl 8

8шт.

NSS

NOT SOLD SEPARAT

RIM ASSEMBLY - rear, fits 12.4/11-36 tires, Includes: Ref. 1 - 5

2шт.

1

K306361

RIM

ASSEMBLY - rear wheel, W11 x 36

1шт.

2

K306355

DISC, WHEEL

WHEEL - center, rear

1шт.

3

1333029C1

BOLT,Coach, M16 x 120mm, Gr 8.8

BOLT - coach, 16 x 120 mm grade 8.8, rim

8шт.

4

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

8шт.

5

825-1416

NUT,M16, Cl 8

8шт.

NSS

NOT SOLD SEPARAT

RIM ASSEMBLY - rear, fits 13.6/12 x 38 tires, Includes: Ref. 1 - 5

2шт.

1

1265244C1

RIM

- wheel, wheel, rear, DW11 x 38

1шт.

2

K306355

DISC, WHEEL

WHEEL - center, rear

1шт.

3

1333029C1

BOLT,Coach, M16 x 120mm, Gr 8.8

BOLT - coach, 16 x 120 mm grade 8.8, rim

8шт.

4

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

8шт.

5

825-1416

NUT,M16, Cl 8

8шт.

6

K617168

WHEEL NUT

- wheel, 3/4 inch UNF, wheel, 3/4 inch UNF

16шт.

UK5926

WHEEL

WEIGHT UNIT - ballast, for wheels, Includes: Ref. 17 - 25

1шт.

17

K207479

WHEEL

WEIGHT - ballast, inner, 45 kg (100 lb)

2шт.

18

K611283

BOLT

- 5/8 UNF x 3-1/2 inch, Serial Range: weight-wheel

6шт.

19

K626855

WASHER

- special, 5/8 inch (10 mm)

6шт.

20

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

21

425-1110

NUT,5/8"-18, G5

6шт.

22

K207480

WHEEL

WEIGHT - ballast, outer, 44 kg (97 lb)

2шт.

23

K601366

BOLT

- 5/8 UNC x 3-1/2 inch

6шт.

24

K626855

WASHER

- special, 5/8 inch (10 mm)

6шт.

25

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

26

K309290

WHEEL

- rear, W12 x 24, fits 14.9/13 x 24 tires

2шт.

26

K309291

WHEEL

- rear, W15L x 24, fits 14.9/13 x 24 tires

2шт.

26

K309292

WHEEL

- rear, DW16 x 26, fits 18.4/15 x 26 tires

2шт.
