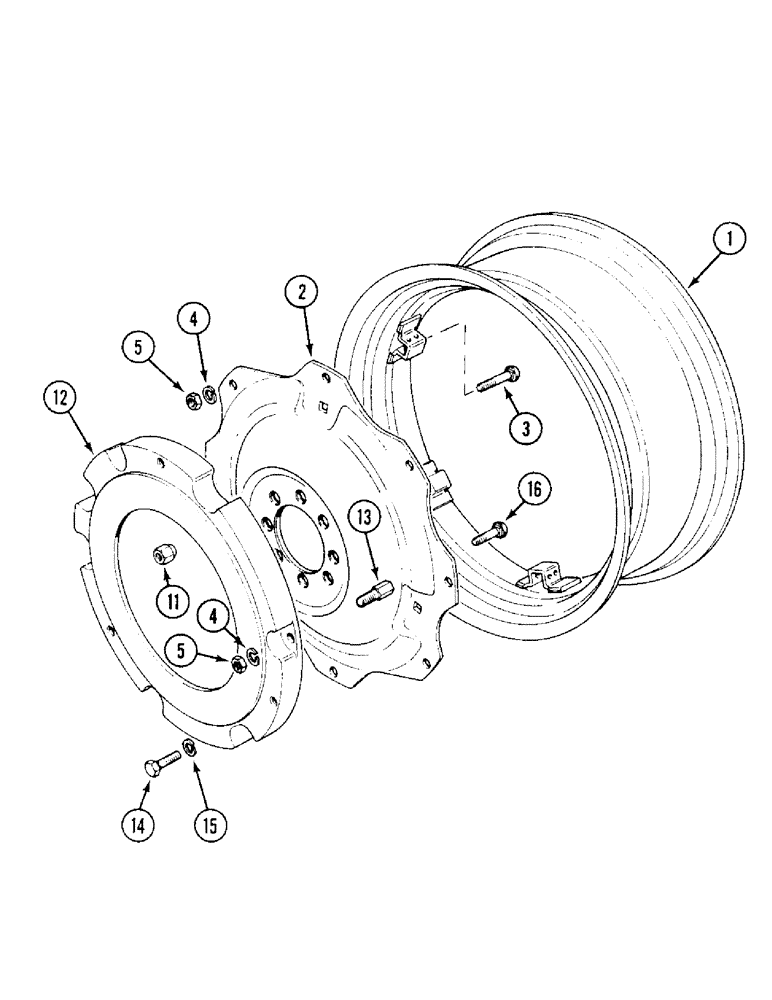

Запчасти Case IH 1394 (6-258) - REAR WHEELS AND BALLAST WEIGHTS (06) - POWER TRAIN

K301014

WHEEL

RIM ASSEMBLY - rear, fits 16.9/14-30 tires (Sankey), Includes: Ref. 1 - 5

2шт.

1

K301015

RIM

ASSEMBLY - wheel, rear DW14 x 30

1шт.

2

K301016

WHEEL

- center, rear

1шт.

3

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

BOLT - rim, 5/8 UNF x 2-7/8 inch

6шт.

4

K19475

WASHER

- 5/8 inch (16 MM)

6шт.

5

425-1110

NUT,5/8"-18, G5

6шт.

NSS

NOT SOLD SEPARAT

RIM ASSEMBLY - rear, fits 16.9/14-30 tires (Nagbol), Includes: Ref. 1 - 5

1шт.

1

1332736C1

RIM

- wheel, rear DW14 x 30

1шт.

2

K330217

WHEEL

- center, rear

1шт.

3

1500209C2

BOLT

- rim, special, locating, 5/8 UNF x 3 inch

6шт.

4

K19475

WASHER

- 5/8 inch (16 mm)

6шт.

5

425-1110

NUT,5/8"-18, G5

6шт.

11

K617168

WHEEL NUT

- wheel, 3/4 inch UNF

16шт.

UK729

WHEEL

WEIGHT ASSEMBLY - ballast (For wheels K301014 and K301048), Includes: Ref. 12 - 16

1шт.

12

K86167

WEIGHT

- ballast, 45 kg

4шт.

13

K914869

STUD

- 5/8 inch UNF

6шт.

14

K19305

BOLT

- 5/8 BSF x 2 inch

6шт.

15

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

16

K611280

BOLT

- rim, 5/8 UNF x 3 inch

6шт.
