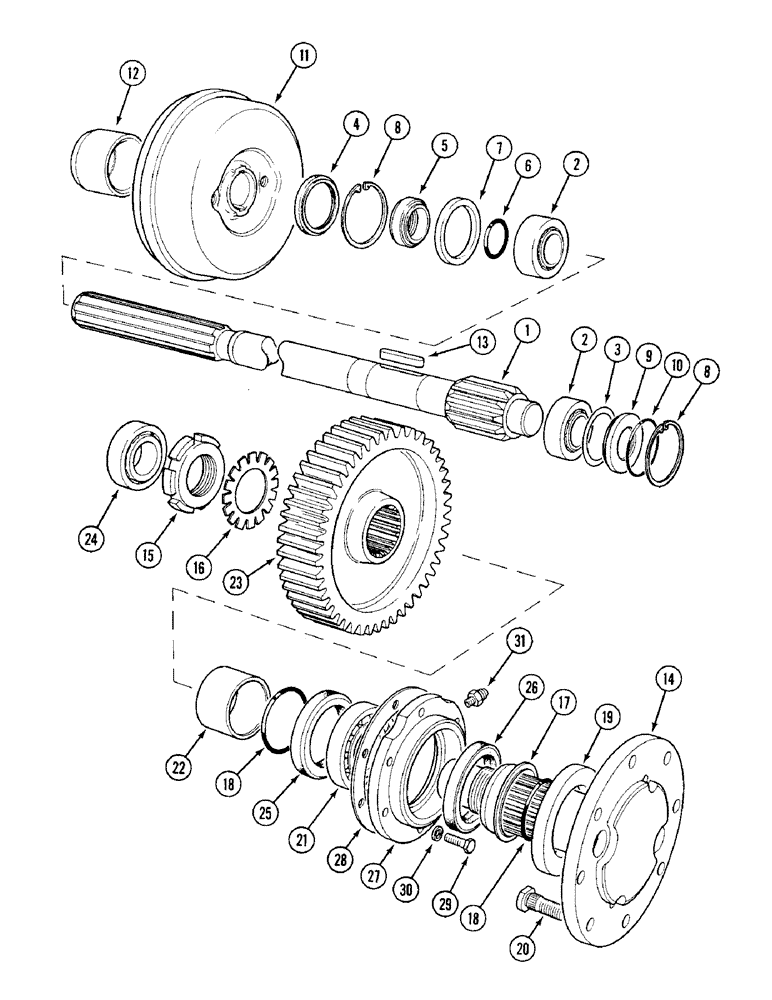

Запчасти Case IH 1394 (6-256) - FINAL DRIVE GEARS AND SHAFTS (06) - POWER TRAIN

1

K956323

SHAFT

- pinion, spur, 10 teeth (10/49 ratio)

2шт.

1

K920435

SHAFT

- pinion, spur, 9 teeth (Vegetable special) (9/50 ratio)

2шт.

1

K207942

GEAR

SHAFT - pinion, spur, 11 teeth (11/49 ratio)

2шт.

2

NSS

NOT SOLD SEPARAT

KIT - roller, Order B17220 & ST2118

4шт.

3

K907514

SHIM,.003" Thk

(0.08 mm) .003" Thk

1шт.

3

K907515

SHIM,.010" Thk

(0.25 mm) .010" Thk

1шт.

4

K623455

SEAL

- oil, 2-1/2 x 3-1/4 x 3/8 inch (64 x 82 x 10 mm)

2шт.

5

K210027

COLLAR

- spur pinion shaft (Replaces K954712)

2шт.

6

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

Used with K954712 -224, 70 Duro, 1.734" ID x .139" Thk

2шт.

7

K904256

SPACER

- housing

2шт.

8

K13042

RING, SNAP

RING - 3-1/4 inch (82 mm) Internal

4шт.

9

K929045

COVER

- end, pinion bearing

2шт.

10

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

11

K921829

BRAKE DRUM

DRUM - brake

2шт.

12

K201339

BUSHING

COLLAR - drum

2шт.

13

K622324

KEY

- 11/32 x 1/2 x 2-1/2 inch

4шт.

14

K262132

DRIVE

SHAFT - final drive

2шт.

15

K85359

LOCK NUT

- ring, 2-3/4 inch, special

1шт.

16

K85355

LOCK WASHER

WASHER - tab, ring nut

1шт.

17

K916497

COLLAR,69.93mm ID x 95.25mm OD x 32.89mm L

- drive shaft

2шт.

18

238-5148

O-RING,0.103" Thk x 2.737" ID, -148, Cl 5, 75 Duro

- 2-7/8 inch (73 mm) ID

4шт.

19

K910397

SEAL

SHIELD - dirt, driveshaft

2шт.

20

K611463

STUD

BOLT - 3/4 UNF x 2-1/2 inch, special

16шт.

21

NSS

NOT SOLD SEPARAT

KIT - roller, Order ST2175& ST981

2шт.

22

K927061

SLEEVE

- driveshaft, 10/49 and 11/49 ratio

2шт.

22

K944893

SLEEVE

- driveshaft, 9/50 ratio (Vegetable special)

2шт.

23

K949146

WHEEL

GEAR - spur, 49 teeth (10/49 ratio)

2шт.

23

K949145

WHEEL GEAR

GEAR - spur, 50 teeth (Vegetable special)

2шт.

23

K207944

PINION

GEAR - spur, 49 teeth (11/49 ratio)

2шт.

24

NSS

NOT SOLD SEPARAT

KIT - roller, B17220 & ST2118

2шт.

25

K623452

SEAL,90mm ID x 110.28mm OD x 11.99mm Thk

- oil, inner, 90 x 110 x 12 mm

2шт.

26

K15550

OIL SEAL,80.95mm ID x 108.08mm OD x 15.88mm Thk

- oil, outer, 3-1/4 x 4-1/4 x 5/8 inch (82 x 108 x 16 mm)

2шт.

27

K944516

HOUSING

- oil seal, right-hand

1шт.

27

K944517

HOUSING

- oil seal, left-hand

1шт.

28

K902772

SHIM,.003" Thk

(0.08 mm) .003" Thk

1шт.

28

K902772

SHIM,.003" Thk

(0.08 mm) .003" Thk

1шт.

28

K902774

SHIM,.009" Thk

(0.23 mm) .009" Thk

1шт.

28

K902775

GASKET

SHIM - 0.015 inch (0.38 mm)

1шт.

28

K947289

SHIM,56.36mm ID x 83.34mm OD x 0.76mm Thk

- 0.030 inch (0.76 mm)

1шт.

29

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

- hex, 7/16 NC x 1-1/2 inch

12шт.

30

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

12шт.

31

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.
