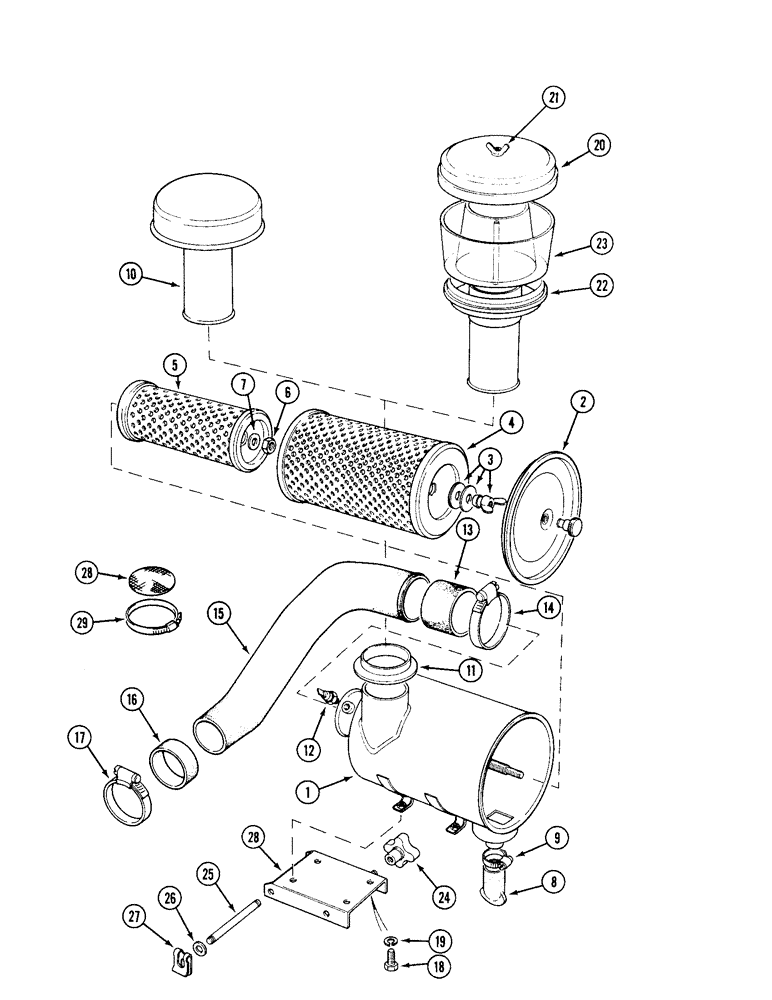

Запчасти Case IH 1394 (2-06) - AIR CLEANER (02) - ENGINE

1

K200688

CLEANER

AIR CLEANER - engine (Through hood inlet), Includes: Ref. 2 - 9

1шт.

1

K308827

CLEANER

AIR CLEANER - engine (Under hood inlet), Includes: Ref. 2 - 9

1шт.

2

K964888

PLATE

- end

1шт.

3

K964887

NUT

WING NUT AND WASHERS - element

1шт.

4

K945043

AIR FILTER

ELEMENT - main

1шт.

5

K952344

AIR FILTER

ELEMENT - safety

1шт.

6

K964096

NUT

- M10

1шт.

7

K964631

WASHER

- nylon inner element

1шт.

8

K945042

VALVE

- dust

1шт.

9

K622099

CLIP

CLAMP - hose, 1-1/8 inch (29 mm)

1шт.

10

K945046

PRECLEANER

CAP - stack, air

1шт.

11

K947899

SEAL

- engine cover

1шт.

12

K330060

SWITCH

- vacuum (Replaces K206667)

1шт.

13

K207416

CONNECTOR, ELEC

HOSE - 2-3/8 x 2-1/4 inch (60 x 38 mm)

1шт.

14

214-1444

HOSE CLAMP,58.6mm - 82.5mm

CLAMP, HOSE, , Adj. #44, 2.31/3.25 Type F Worm

2шт.

15

K207414

PIPE ASSY.

PIPE -, Serial Range: cleaner-turbocharger

1шт.

16

K64540

HOSE

- 3 x 2 inch (76 x 51 mm)

1шт.

17

214-1444

HOSE CLAMP,58.6mm - 82.5mm

CLAMP, HOSE, , Adj. #44, 2.31/3.25 Type F Worm

2шт.

18

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

4шт.

19

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

20

K260902

COVER

- cleaner (Coopers)

1шт.

21

NS

NOT SERVICED

NUT

1шт.

22

K260905

SLEEVE

- cleaner

1шт.

23

K260382

BOWL

- dust, 7-5/16 inch

1шт.

20

REF

INSTRUCTION

COVER - cleaner (Burgess), order K302217, Includes: knob

1шт.

K305983

KNOB

- M8

1шт.

22

NSS

NOT SOLD SEPARAT

SLEEVE - order K302218

1шт.

23

K260909

BOWL

- dust, Burgess, 8 inch

1шт.

24

K305983

KNOB

- M8

1шт.

25

K307826

PIN

- pivot plate

1шт.

26

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

27

K659105

CLIP

- link pin

2шт.

28

A166359

SCREEN

- air intake

1шт.

29

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - adj, 2-9/16 - 3-1/2 inch dia

1шт.
