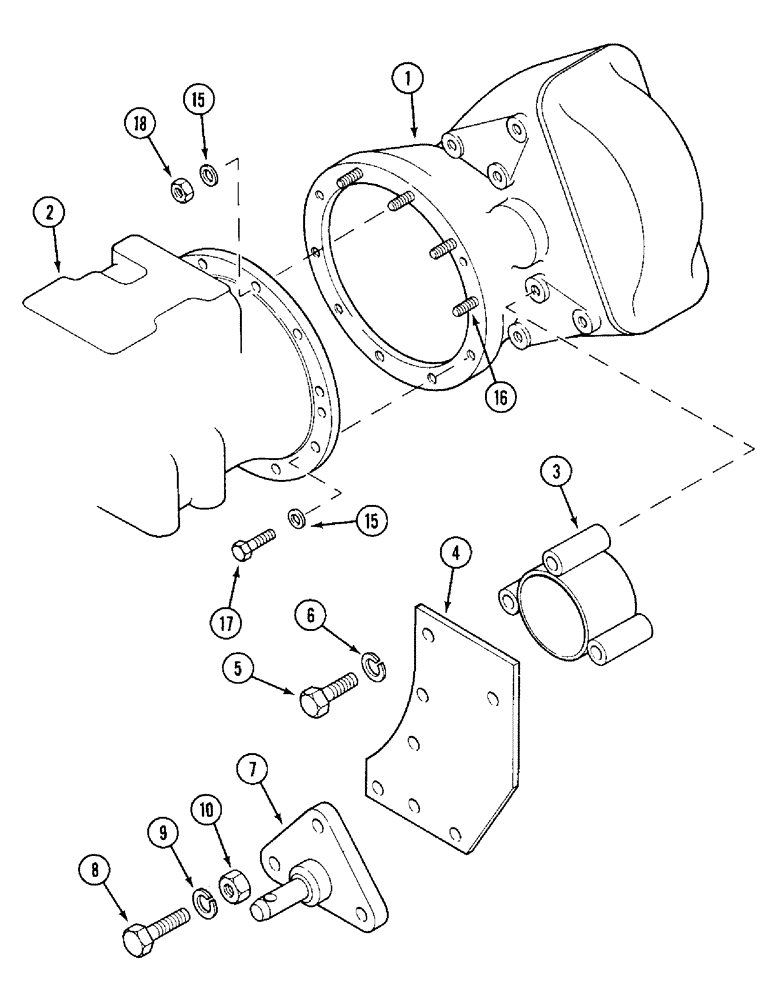

Запчасти Case IH 1394 (6-254) - FINAL DRIVE HOUSING, SUPPORT AND BRACKETS, LOW PROFILE SPECIAL (06) - POWER TRAIN

1

REF

INSTRUCTION

HOUSING - reduction (RH shown), See Figure 6-255

2шт.

2

REF

INSTRUCTION

HOUSING - rear axle, See Figure 9-406

1шт.

3

A165857

SUPPORT

EXTENSION - stabilizer support

2шт.

4

A147405

SUPPORT

- stabilizer bracket

2шт.

5

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

6шт.

6

K626345

LOCK WASHER

WASHER - lock, 1/2 inch

6шт.

7

K922662

PLATE

BRACKET - stabilize

2шт.

8

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

6шт.

9

K626345

LOCK WASHER

WASHER - lock, 1/2 inch

6шт.

10

K608406

STUD

NUT - hex. 1/2 inch NC

6шт.

15

A150672

WASHER

- mounting bolt and stud

20шт.

16

A164858

STUD

- mounting, 1/2 NC x 2-1/2 inch

8шт.

17

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch grade 8

6шт.

18

429-108

NUT,1/2"-13, G8

- hex, 1/2 inch NC, grade 8

8шт.
