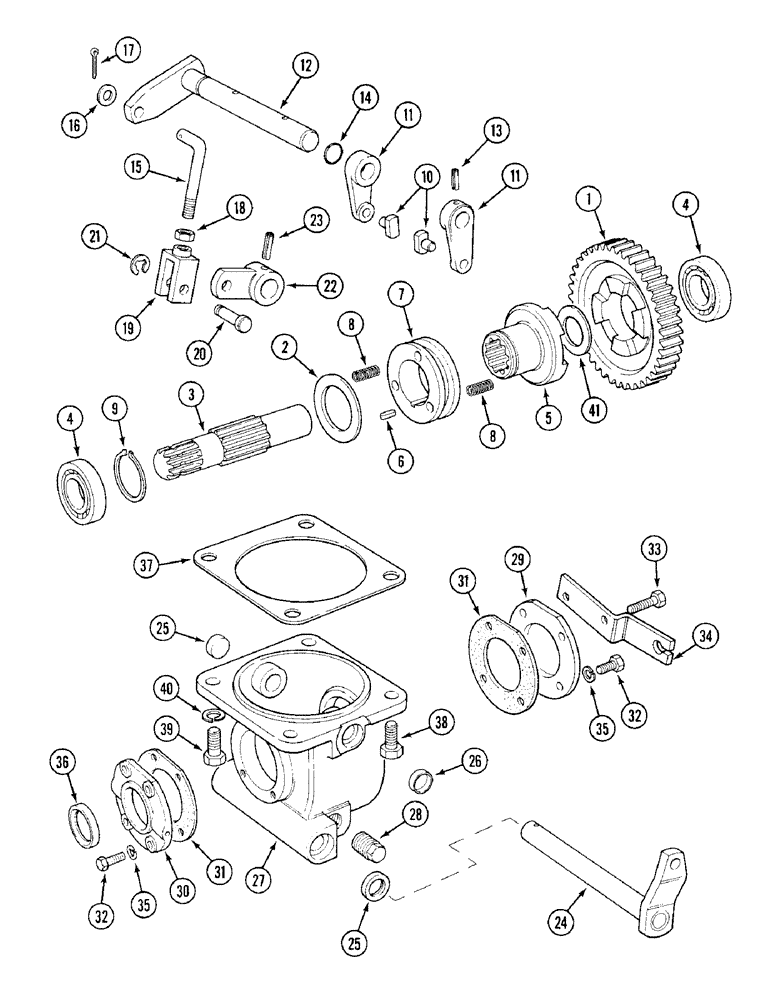

Запчасти Case IH 1394 (6-250) - TRANSFER GEARBOX ASSEMBLY, MFD - POWER SHIFT (06) - POWER TRAIN

1

K205167

GEAR

- drive, with Two Lugs (Carraro 116105)

1шт.

2

K261812

WASHER

- thrust (Carraro 115208)

1шт.

3

K261920

SHAFT

- output (Carraro 116104)

1шт.

4

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING - ball (Carraro 25808)

2шт.

5

1967548C1

SPLINED COUPLING

CLUTCH - sliding

1шт.

6

1966855C1

SPLINE

KEY - sleeve

1шт.

7

1967549C1

SLEEVE

- clutch

1шт.

8

K261814

SPRING

- clutch (Carraro 115798)

6шт.

9

800-1152

SNAP RING,M52, External

RING - snap (Carraro 24807)

1шт.

10

K261924

SELECTOR

PIN - trunnion (Carraro 115307)

2шт.

11

K261922

SELECTOR

FORK - selector (Carraro 112872)

2шт.

12

K261915

SHAFT

SPINDLE AND LEVER (Carraro 116531)

1шт.

13

K261917

PIN

- roll, spindle (Carraro 24440)

2шт.

14

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

15

K395209

ROD

- link (Carraro 111830)

1шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

17

732-3220

COTTER PIN,M3.2 x 20

PIN - cotter, 3.2 x 20 mm

1шт.

18

825-1410

NUT,M10, Cl 8

1шт.

19

K260745

FORK

- rod, M10

1шт.

20

1966771C1

PIN

- clevis (Carraro 70533)

1шт.

21

K261807

RING

- snap (Carraro 24715)

1шт.

22

K261803

LEVER

- operating (Carraro 117839)

1шт.

23

905812R1

PIN,M6 x 36, Coiled

- roll, 6 x 35 mm (Carraro 24442)

1шт.

24

K261925

SHAFT

AND LEVER - (Carraro 117863)

1шт.

25

965377

SEAL - oil (Carraro 25107)

2шт.

26

A157155

PLUG

- core, housing (Carraro 106320)

1шт.

27

K205168

HOUSING

- transfer box (Carraro 116090)

1шт.

28

110782A1

PLUG, DRAIN

PLUG - 24 mm, oil drain

1шт.

29

K965396

COVER

PLATE - rear (Carraro 89244)

1шт.

30

K965397

COVER

- front (Carraro 89275)

1шт.

31

K965398

GASKET

- cover (Carraro 88830)

2шт.

32

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

6шт.

33

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

34

K261808

BRACKET

- cable support (Carraro 117829)

1шт.

35

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

36

K965399

OIL SEAL

- oil (Carraro 25156)

1шт.

37

K261921

GASKET

- main frame (Carraro 116136)

1шт.

38

K260269

BOLT

BOLT - 5/8 inch UNC (Carraro 21475)

3шт.

39

K260276

PIN

BOLT - 5/8 inch UNC (Carraro 106594)

1шт.

40

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

4шт.

41

K261919

WASHER

- thrust (Carraro 110287)

1шт.
