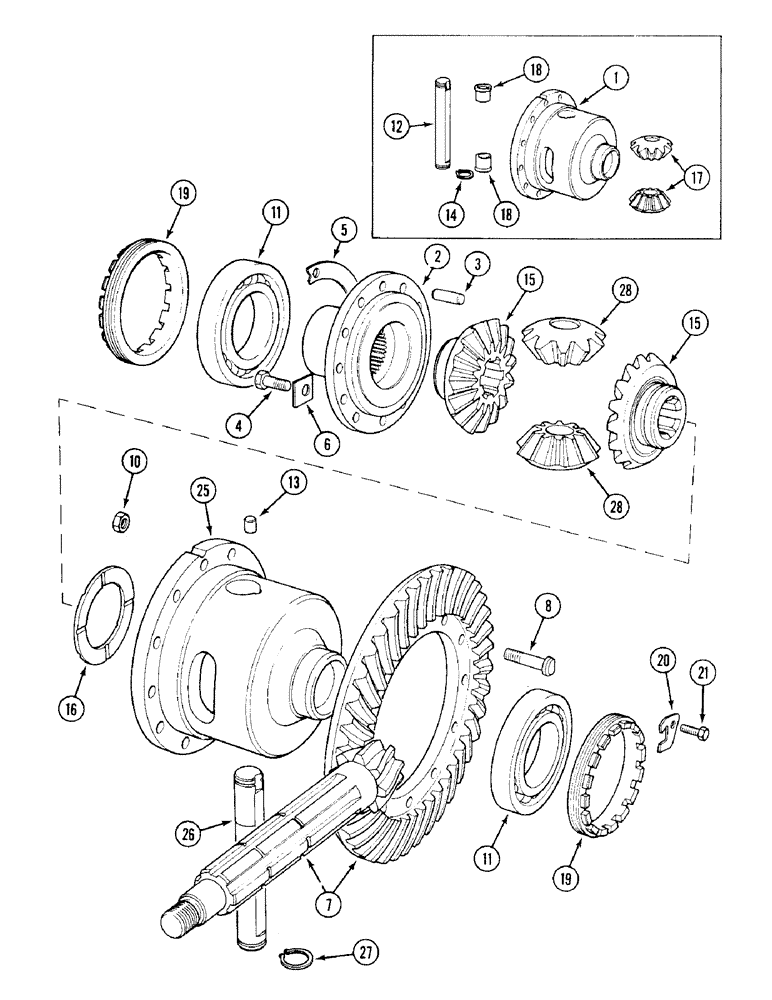

Запчасти Case IH 1394 (6-236) - DIFFERENTIAL (06) - POWER TRAIN

1

NSS

NOT SOLD SEPARAT

CAGE - differential (Prior to P.I.N. 11503897), Order 25 - 28

1шт.

2

K903184

FLANGE

PLATE - end

1шт.

3

K621801

PIN

DOWEL - 3/8 x 1-1/8 inch

3шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

9шт.

5

K903185

WASHER

- tab, end plate bolt

3шт.

6

K626372

WASHER

- tab, end plate bolt

3шт.

7

K964873

GEAR-SET

PINION AND SPIRAL GEAR - bevel, (Synchromesh, two-wheel drive)

1шт.

7

K965895

BEVEL GEAR

PINION AND SPIRAL GEAR - bevel, (Synchromesh, MFD)

1шт.

7

K962894

GEAR-SET

PINION AND SPIRAL GEAR - bevel, (Power shift, two-wheel drive)

1шт.

7

K261788

GEAR-SET

PINION AND SPIRAL GEAR - bevel (Power shift, MFD)

1шт.

8

K905664

WHEEL BOLT

- 7/16 inch UNC, special

12шт.

10

232-4117

LOCK NUT,7/16"-14, GC

NUT, LOCK, 7/16"-14, GC

6шт.

11

K19010

BALL BEARING

BEARING - ball

2шт.

12

K951551

PIN

- 1-1/8 inch (29 mm) Diameter (Prior to P.I.N. 11503897)

1шт.

13

K621858

PIN

DOWEL - pin

1шт.

14

103-11112

SNAP RING,#112, Ext

Ring, Snap, (prior to P.I.N. 11503897) #112, Ext

2шт.

15

K30234

CONE PINION

WHEEL - bevel, 16 teeth

2шт.

16

K940805

WASHER, THRUST

WASHER - thrust

1шт.

17

K261657

GEAR

PINION - bevel, with bushing (Prior to P.I.N. 11503897)

2шт.

18

K203837

BUSHING

- bevel pinion (Prior to P.I.N. 11503897)

1шт.

19

K15007

RING, LOCKING

ADJUSTER - bearing, pinion

2шт.

20

K626420

WASHER

PLATE - lock, locking

2шт.

21

K602801

BOLT (SPREADER)

BOLT - 5/16 UNC x 1/2 inch, 5/16 inch UNC

2шт.

25

K210383

CAGE

- differential (P.I.N. 11503897 and after)

1шт.

26

K206650

PIN

- 1-1/4 inch (32 mm) Diameter (P.I.N. 1503897 and after)

1шт.

27

K11129

RING, SNAP

RING - snap, 1-1/4 inch (31 mm) External (P.I.N. 1503897 and after)

2шт.

28

K206651

GEAR

PINION - bevel, without bushing (P.I.N. 11503897 and after)

2шт.
