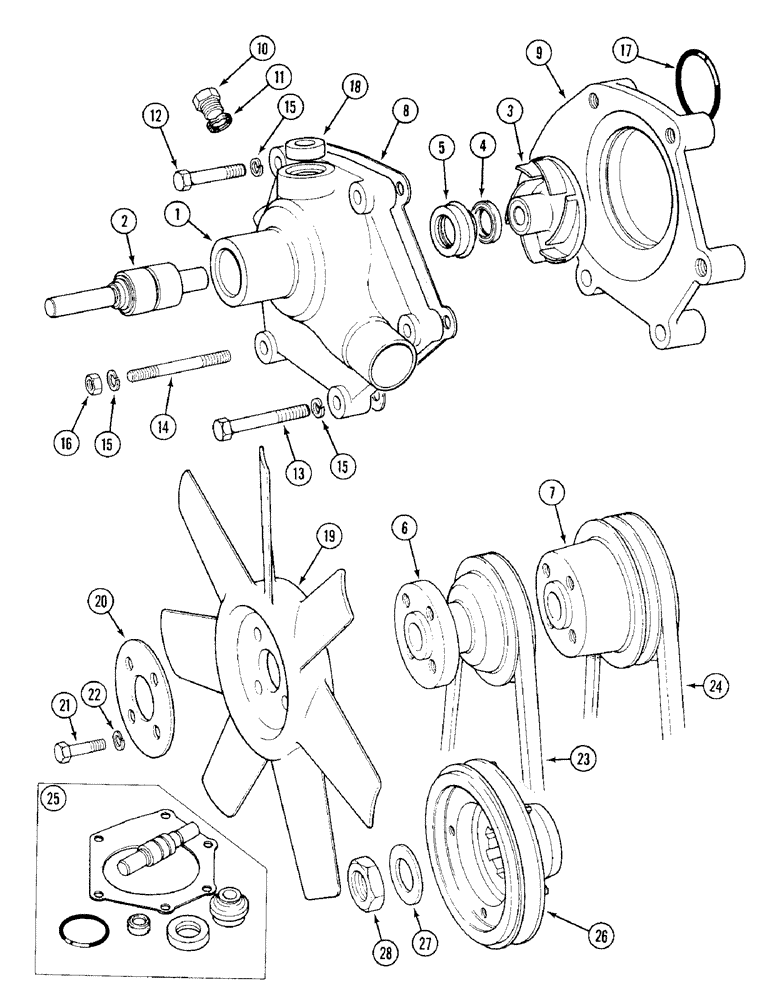

Запчасти Case IH 1394 (2-04) - WATER PUMP AND FAN (02) - ENGINE
№
Артикул
Название
Примечание
Количество
K201750
PUMP, WATER
PUMP ASSEMBLY - water (Without air conditioning), Includes: Ref. 1 - 7
1шт.
K207434
PUMP
ASSEMBLY - water (With air conditioning), Includes: Ref. 1 - 7
1шт.
1
K201749
HOUSING
BODY - pump
1шт.
2
K620202
BEARING ASSY
SHAFT AND BEARING - pump
1шт.
3
K200687
IMPELLER
- water
1шт.
4
K200821
RING
- impeller
1шт.
5
K200823
GLAND
SEAL - gland
1шт.
6
K200824
PULLEY
PULEY - pump (Without air conditioning)
1шт.
7
K207435
PULLEY
- pump (With air conditioning)
1шт.
8
K942844
GASKET
- pump to impeller housing
1шт.
9
REF
INSTRUCTION
HOUSING - clutch
1шт.
10
K623829
PLUG
- 3/8 inch BSP
2шт.
11
K19500
GASKET
WASHER - sealing, 5/8 inch (16 mm)
2шт.
12
413-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
- hex, 5/16 NC x 1-1/4 inch
2шт.
13
413-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
- hex, 5/16 NC x 2-1/4 inch
4шт.
14
K600141
BOLT
STUD - 5/16 UNC x 1-11/16 inch
1шт.
14
K600205
BOLT
- 5/16 UNC x 1-1/2 inch
2шт.
14
K608173
STUD
- 5/16 UNC x 3-1/4 inch
1шт.
15
K19481
SPRING WASHER
WASHER - lock, 5/16 inch
6шт.
16
9635082
NUT,5/16" - 18, Gr 5
- 5/16 inch UNC
1шт.
17
238-6223
O-RING,0.139" Thk x 1.609" ID, -223, Cl 6, 90 Duro
- 1-5/8 x 1/8 inch
1шт.
18
K915330
SEALING RING
SEAL - rubber, pump to cylinder head
1шт.
19
K921359
FAN
- seven blade
1шт.
20
K921361
SHIM
PLATE - retaining
1шт.
21
88206
BOLT,Hex, 3/8" - 16 x 1", Gr 5
4шт.
22
492-11038
LOCK WASHER,3/8"
4шт.
23
K68073
V-BELT
Drive, Fan and alternator (Without air conditioning)
1шт.
24
K308448
V-BELT,13.00 mm W x 1232.00 mm L
V-BELT , Drive, Fan and Alternator (With air conditioning) 13.00 mm W x 1232.00 mm L
1шт.
25
REF
INSTRUCTION
HOUSING - clutch
1шт.
26
K200175
PULLEY
- crankshaft (Without air conditioning)
1шт.
26
K207329
PULLEY
- crankshaft (With air conditioning)
1шт.
27
K626403
WASHER
- special, 1 inch (25 mm) special
1шт.
28
K623300
NUT
- crankshaft, 1 inch special
1шт.
Выбрано товаров: 33
