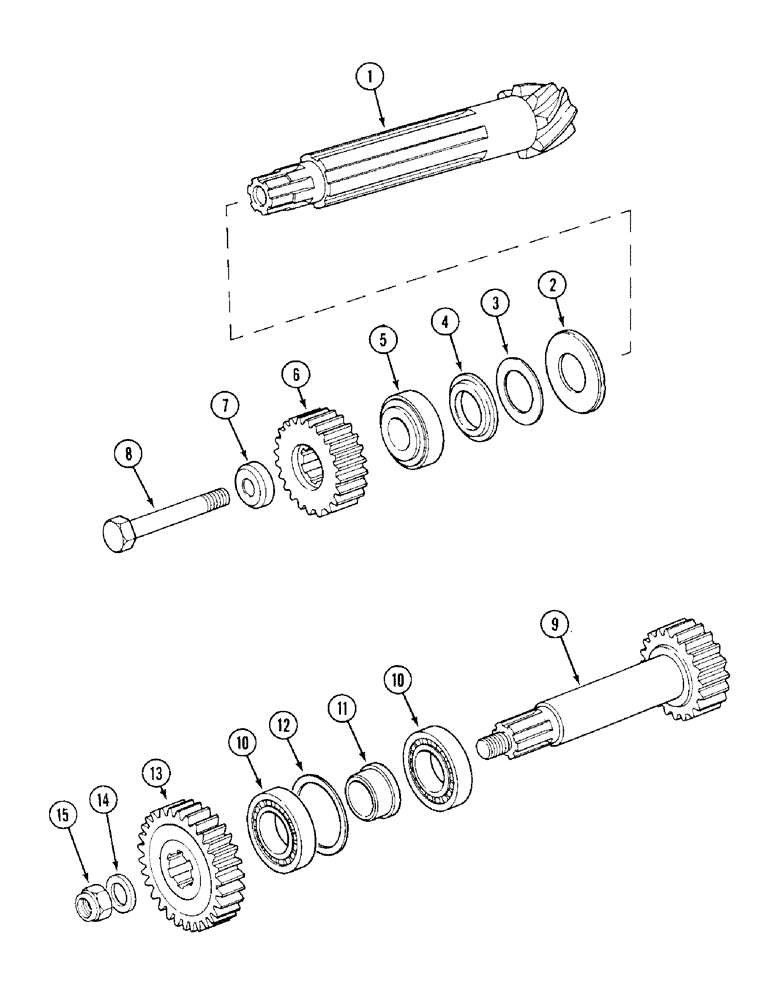

Запчасти Case IH 1394 (6-234) - IDLER SHAFT AND GEARS, MFD - POWER SHIFT (06) - POWER TRAIN

1

K261788

GEAR-SET

BEVEL PINION AND SPIRAL GEAR - bevel

1шт.

2

K953045

SPACER

- pinion shaft

1шт.

3

K950878

SHIM

- pinion shaft, 0.002 inch (0.05 mm)

1шт.

3

K950879

SHIM

- pinion shaft, 0.005 inch (0.13 mm)

1шт.

3

K950880

SHIM

- pinion shaft, 0.010 inch (0.25 mm)

1шт.

3

K950881

SHIM

- pinion shaft, 0.030 inch (0.76 mm)

1шт.

4

K953044

BUSHING

SPACER - pinion shaft

1шт.

5

NSS

NOT SOLD SEPARAT

KIT - roller, Order A13161 & D71216

1шт.

6

K206948

GEAR

- pinion shaft, 23 teeth

1шт.

7

K626777

WASHER

- special, 5/8 inch (16 mm)

1шт.

8

K601218

BOLT

- 5/8 UNC x 4-1/2 inch

1шт.

9

K206947

SHAFT

- idler

1шт.

10

NSS

NOT SOLD SEPARAT

BEARING ASSEMBLY - tapered, Includes: bearing and cup

2шт.

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING - tapered roller, 1-5/8 inch ID

1шт.

663558R1

BEARING CUP

CUP - tapered roller bearing, 2-57/64 inch OD

1шт.

11

K953043

BUSHING

COLLAR - idler shaft

1шт.

12

K626960

SHIM,.002" Thk

Idler shaft .002" Thk

1шт.

12

K626961

SHIM,.005" Thk

Idler shaft .005" Thk

1шт.

12

K626962

BLOCK

SHIM - idler shaft, 0.010 inch (0.25 mm)

1шт.

12

K626963

SHIM,.030" Thk

Idler shaft (0.76 mm) .030" Thk

1шт.

13

K205166

GEAR

- idler, 30 teeth (Carraro 116103)

1шт.

14

K626321

WASHER

- idler shaft, 3/4 inch (19 mm)

1шт.

15

K617307

LOCK NUT

- self-locking, 3/4 inch UNF

1шт.
