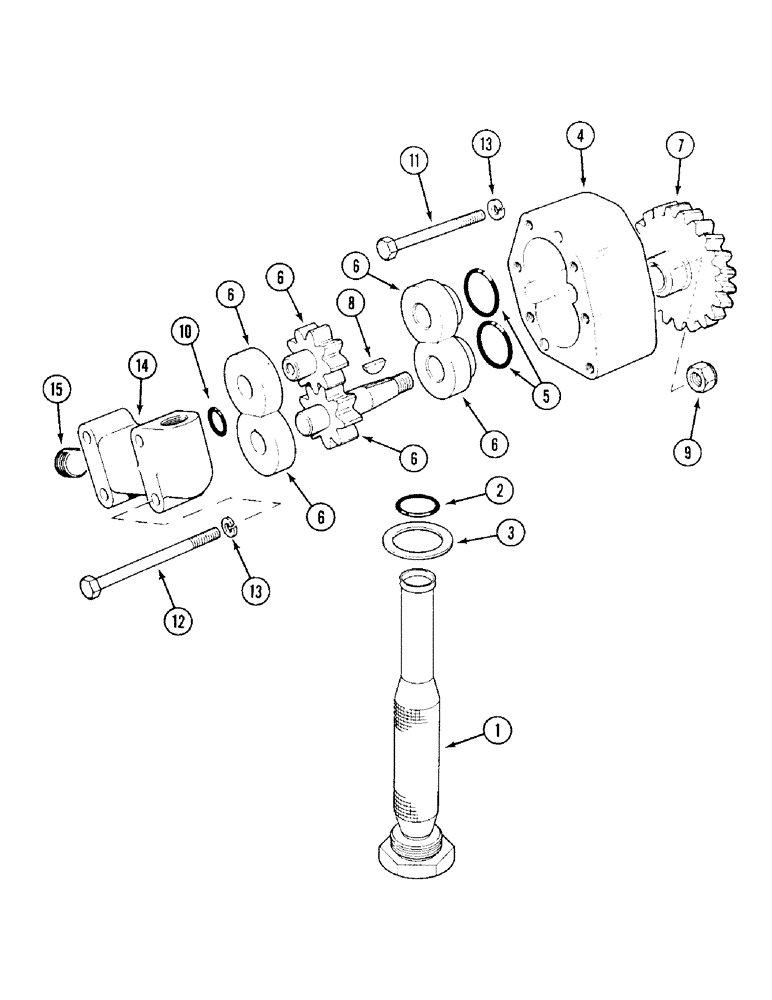

Запчасти Case IH 1394 (6-228) - GEARBOX PUMP, POWER SHIFT (06) - POWER TRAIN

1

K205927

FILTER

- oil

1шт.

2

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.

3

K17547

WASHER - sealing, 1-1/4 inch (32 mm) ID

1шт.

4

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - oil, Includes: Ref. 5 & 6 and o-ring

1шт.

5

K963525

PUMP

1шт.

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

3шт.

6

K962992

ROTOR

KIT - rotors and bearings

1шт.

7

K928670

GEAR

-

1шт.

8

K19604

KEY

- Woodruff No. 405

1шт.

9

K617303

LOCK NUT

- self-locking, 7/16 inch UNF

1шт.

10

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

3шт.

11

K600218

BOLT

- 5/16 UNC x 3-1/4 inch

2шт.

11

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- 5/16 UNC x 2-1/4 inch (MFD)

1шт.

12

K600223

BOLT

- 5/16 UNC x 4-1/2 inch

4шт.

13

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

6шт.

14

K923653

CONNECTOR, ELEC

CONNECTOR - pump outlet

1шт.

15

K619539

PLUG

- 3/4 inch (19 mm)

1шт.
