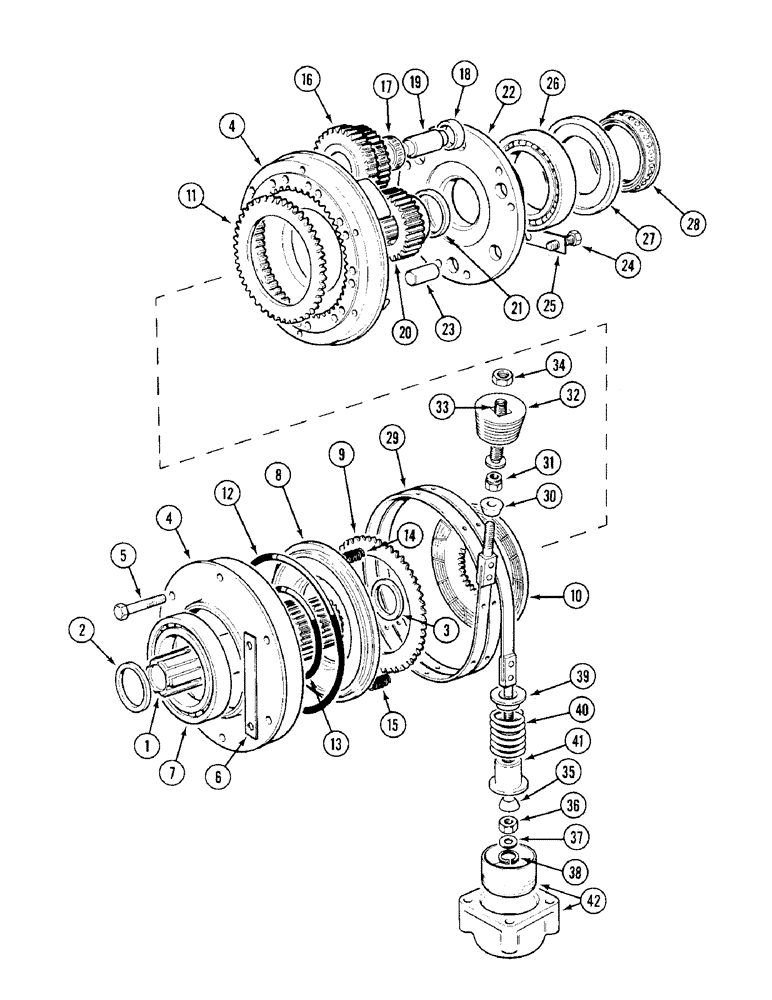

Запчасти Case IH 1394 (6-226) - REAR PLANETARY ASSEMBLY, POWER SHIFT TRACTORS (06) - POWER TRAIN

1

K948486

DRIVE SHAFT

SHAFT - drive

1шт.

2

K908509

WASHER

- thrust, front

1шт.

3

K917185

WASHER

- thrust inner

1шт.

4

K917836

CARRIER

AND CLUTCH CYLINDER ASSSEMBLY, Includes: Ref. 5 & 6

1шт.

5

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

6шт.

6

K626386

WASHER

- tab

3шт.

7

K620082

BEARING, BALL

BEARING - ball

1шт.

8

K943958

PISTON

- clutch cylinder

1шт.

K262538

CLUTCH PACK

CLUTCH ASSEMBLY - selective, clutch, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE - clutch, steel

4шт.

10

NSS

NOT SOLD SEPARAT

PLATE - clutch, grooved faces

3шт.

10

NSS

NOT SOLD SEPARAT

PLATE - clutch, grooved faces

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE - backing

1шт.

12

238-5441

O-RING,0.275" Thk x 6.975" ID, -441, Cl 5, 75 Duro

- 7 inch (178 mm) ID

1шт.

13

238-5345

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

1шт.

14

K929779

SPRING

- inner

9шт.

15

K13507

SPRING

- outer

18шт.

16

K948487

GEAR

PLANETARY GEAR - (set of three)

1шт.

17

K620275

BEARING, NEEDLE

BEARING - roller, needle, 1-1/4 x 1-5/8 x 3/4 inch (32 x 41 x 19 mm)

3шт.

17

K620277

ROLLER CAGE BEARING

BEARING - roller, needle, 1-1/4 x 1-5/8 x 1 inch (32 x 41 x 25 mm)

3шт.

18

K952662

WASHER, THRUST

SPACER - 1/4 x 1-5/8 x 1 inch (32 x 41 x 25 mm)

3шт.

19

K940290

PIN

- bearing

3шт.

20

K948488

GEAR

- sun

1шт.

21

K917186

WASHER

- thrust, rear

1шт.

22

K207666

FLANGE

COVER - end

1шт.

23

S65037

DOWEL

PIN - dowel, 5/8 x 1-1/4 inch

3шт.

24

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

25

K626388

WASHER

- tab

3шт.

26

K19177

BALL BEARING,76.2mm ID x 114.3mm OD x 19.05mm W

BEARING - ball

1шт.

27

K917834

PLATE

- abutment

1шт.

28

K210447

BEARING

1шт.

29

K943410

BRAKE BAND

BAND - brake

1шт.

30

K940064

WASHER

- conical, 3/8 inch

1шт.

31

K607377

LOCK NUT

- self-locking, 3/8 inch UNC

1шт.

32

K623827

PLUG

- 1 inch BSP, special

1шт.

33

K946253

SCREW,1/2" - 13 x 1 3/4"

BOLT - 1/2 UNC x 1-3/4 inch, special

1шт.

34

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

35

K917590

WASHER

- spherical

1шт.

36

232-1416

LOCK NUT,3/8"-16, GC

NUT - self-locking, 3/8 inch UNC

1шт.

37

K626314

WASHER

- 7/16 inch (11 mm)

1шт.

38

K621761

RING, SNAP

RING - snap, 7/8 inch (22 mm) Internal

1шт.

39

K940346

STOP

- brake band

1шт.

40

K625289

SPRING

1шт.

41

K952312

SLEEVE

Includes: Ref. 42

1шт.

42

REF

INSTRUCTION

CYLINDER AND PISTON - brake band, See Figure 6-214

1шт.
