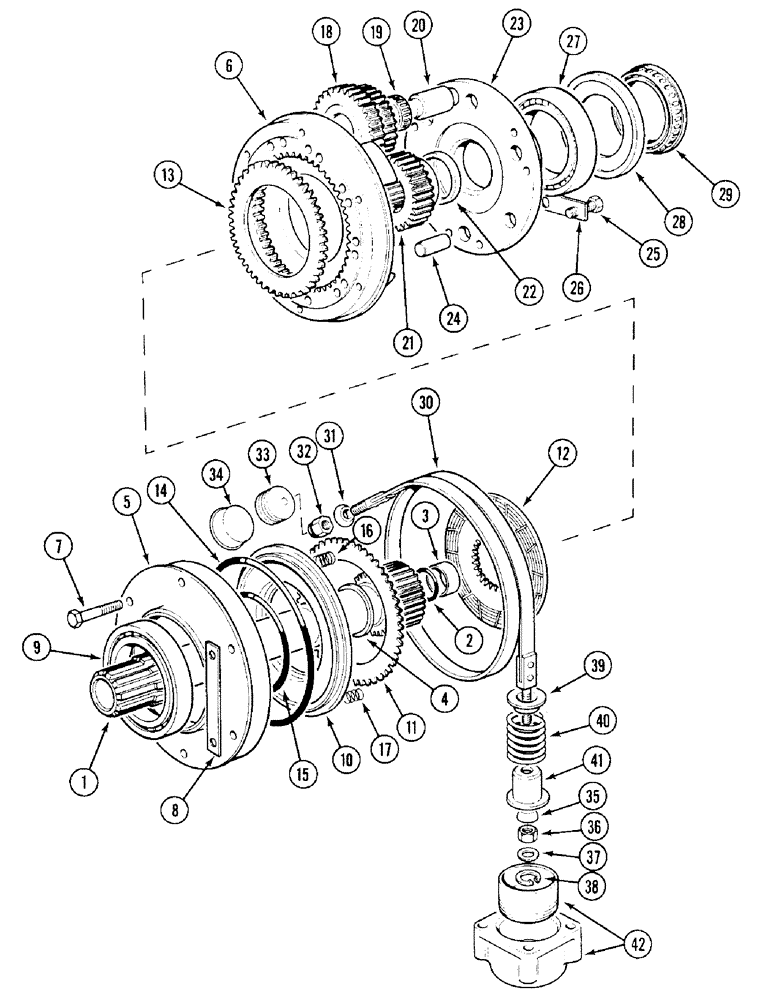

Запчасти Case IH 1394 (6-224) - FRONT PLANETARY ASSEMBLY, POWER SHIFT (06) - POWER TRAIN

1

K202083

SHAFT

- clutch drive

1шт.

2

K623490

SEAL

- oil, 1-1/8 x 1-7/8 x 3/8 inch

1шт.

3

K202124

BUSHING

- 3/8 inch (29 x 48 x 10 mm)

1шт.

4

K908509

WASHER

- thrust, front

1шт.

5

K917828

CARRIER

AND CLUTCH CYLINDER ASSEMBLY, Includes: Ref. 6

1шт.

6

NSS

NOT SOLD SEPARAT

CYLINDER - clutch

1шт.

7

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

6шт.

8

K626386

WASHER

- tab

3шт.

9

K620082

BEARING, BALL

BEARING - ball

1шт.

10

K929781

PISTON

- clutch cylinder

1шт.

K262537

CLUTCH PACK

CLUTCH, SELECTIVE ASSEMBLY, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE - clutch, steel

2шт.

12

NSS

NOT SOLD SEPARAT

PLATE - clutch, grooved bronze faces

2шт.

13

NSS

NOT SOLD SEPARAT

PLATE - backing

1шт.

14

238-5441

O-RING,0.275" Thk x 6.975" ID, -441, Cl 5, 75 Duro

- 7 inch (178 mm) ID

1шт.

15

238-5345

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

1шт.

16

K929779

SPRING

- inner

6шт.

17

K13507

SPRING

- outer

18шт.

18

K948483

GEAR

PLANETARY GEARS - set of three

1шт.

19

K620275

BEARING, NEEDLE

BEARING - roller, needle

6шт.

20

K948484

PIN

- bearing

3шт.

21

K202095

GEAR

- sun

1шт.

22

K917186

WASHER

- thrust, rear

1шт.

23

K207897

COVER

- end

1шт.

24

S65037

DOWEL

PIN - 5/8 x 1-1/4 inch

3шт.

25

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

26

K626388

WASHER

- tab

3шт.

27

K19177

BALL BEARING,76.2mm ID x 114.3mm OD x 19.05mm W

BEARING - ball

1шт.

28

K917834

PLATE

- abutment

1шт.

29

K210447

BEARING

1шт.

30

K943409

BRAKE BAND

BAND - brake

1шт.

31

K940064

WASHER

- conical

1шт.

32

K607377

LOCK NUT

- self-locking, 3/8 inch UNC

1шт.

33

K623831

PLUG

- 1 inch BSP, special

1шт.

34

K628083

PLUG,Cap, 1.282" OD

- plastic, 13/16 inch (21 mm) Diameter

1шт.

35

K917590

WASHER

- spherical

1шт.

36

232-1416

LOCK NUT,3/8"-16, GC

NUT - self-locking, 3/8 inch UNC

1шт.

37

K626314

WASHER

- 7/16 inch (11 mm)

1шт.

38

K621761

RING, SNAP

RING - snap, 7/8 inch (22 mm) Internal

1шт.

39

K940346

STOP

- brake band

1шт.

40

K625289

SPRING

1шт.

41

K952312

SLEEVE

1шт.

42

REF

INSTRUCTION

CYLINDER AND PISTON - brake band, See Figure 6-214

1шт.
