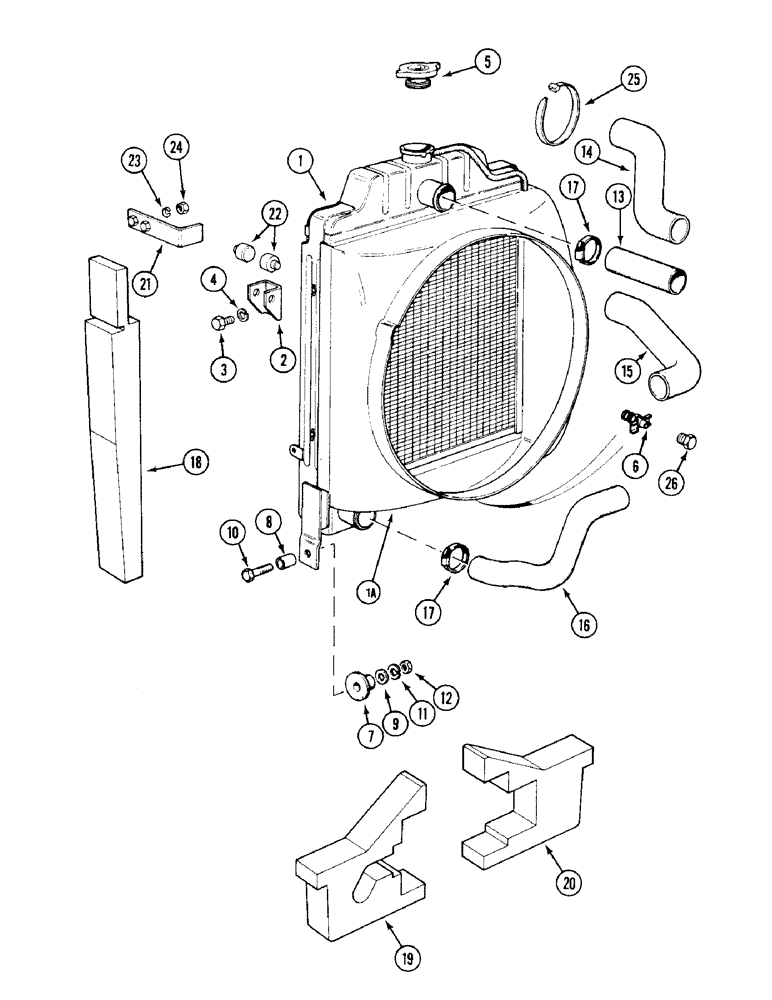

Запчасти Case IH 1394 (2-02) - RADIATOR AND BAFFLES (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
K307840
RADIATOR
- standard, Includes: Ref. 1A
1шт.
1a
K262206
FAN
COWL - radiator, (steel)
1шт.
1
K307840
RADIATOR
- standard (Without cab), Includes: Ref. 1A
1шт.
1a
K262206
FAN
COWL - radiator, (steel)
1шт.
1
K308967
RADIATOR
- tropical/air conditioning (With cab), Includes: Ref. 1A
1шт.
1a
K262206
FAN
COWL - radiator, (steel)
1шт.
2
K308969
BRACKET
- tropical radiator
2шт.
3
614-8010
BOLT,Hex, M8 x 1.25 x 10mm, Cl 8.8, Full Thd
2шт.
4
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
2шт.
5
K956638
CAP
- filler, 10 PSI (69 kPa)
1шт.
6
K622060
PLUG, DRAIN
VALVE - drain, 1/4 inch BSP
1шт.
7
K200734
MOUNTING PARTS
BUSHING - rubber
2шт.
8
K627321
BUSHING
SPACER - mounting
2шт.
9
K88751
WASHER
- 3/8 inch special
2шт.
10
K600408
BOLT,3/8" x 2"
- 3/8 UNC x 2 inch
2шт.
11
492-11038
LOCK WASHER,3/8"
2шт.
12
280136
NUT,3/8"-16, G8
2шт.
13
K200730
RADIATOR HOSE,1.50" ID x 6.00", SAE 20R4 Class SC Or SAE 20R4 Class D1
Inlet, Standard radiator 1.50" ID x 6.00", SAE 20R4 Class SC Or SAE 20R4 Class D1
1шт.
14
K207953
HOSE
- inlet, troplical radiator
1шт.
15
K207328
RADIATOR HOSE,1.50" ID x 7.63", SAE 20R4
Inlet, with Air Conditioning 1.50" ID x 7.63", SAE 20R4
1шт.
16
K201976
RADIATOR HOSE,1.50" ID x 7.31", SAE J20 R4 Class D1
Outlet 1.50" ID x 7.31", SAE J20 R4 Class D1
1шт.
17
214-1428
HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm
CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm
4шт.
18
K307938
BAFFLE
-, Serial Range: radiator-hood
2шт.
19
K310384
BAFFLE
- left-hand, radiator to main frame
1шт.
20
K310385
BAFFLE
- right-hand, radiator to main frame
1шт.
21
K308526
BRACKET
- hood support frame, tropical radiator
2шт.
22
K302961
RUBBER
BLOCK - rubber
4шт.
23
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
4шт.
24
825-1408
NUT,M8, Cl 8
4шт.
25
K628387
STRAP
TIE - cable to air cleaner
1шт.
26
K19531
PIN
PLUG - drain 1/4 inch, BSP alternative, early tractors, 3/32 x 1-1/4 inch
1шт.
